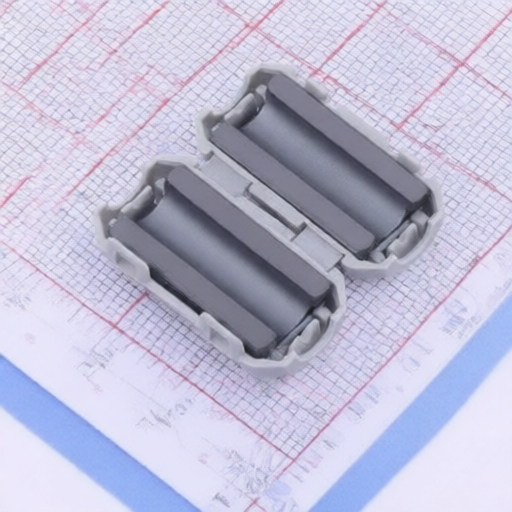

Ferrite Core Clamp Filter TDK ZCAT1325-0530A Noise Reduction Solution for High Frequency Cable Noise
Ferrite Core Clamp Filter TDK ZCAT1325-0530A Noise Reduction Solution for High Frequency Cable Noise
Specifications
Impedance @ Frequency :
50Ω@100MHz
Applicable Cable Type :
Round Cable
Combining Form :
Combination
Inner Diameter φ/ Inner Width D :
5mm@φ
Description :
Round Cable Combination Cable Ferrites RoHS
Mfr. Part # :
ZCAT1325-0530A
Model Number :
ZCAT1325-0530A
Description

TDK ZCAT Series Clamp Filters

TDK's ZCAT series clamp filters are designed to effectively suppress high-frequency noise in interface and power cables. Utilizing TDK's unique integrated ferrite core within a plastic case, these filters offer a one-touch attachment solution without the need to cut cables. They are highly effective against common mode noise, providing noise countermeasures without impacting signal quality. The series offers compatibility with various cable sizes.

Product Attributes

  • Brand: TDK
  • Material: Ferrite core, Plastic case
  • Color: Black (-BK), Gray (default)
  • Certifications: RoHS, Pb Free, Halogen Free, REACH SVHC-Free

Technical Specifications

SeriesPart No.Impedance () min. [10-100MHz]Impedance () min. [100-500MHz]Impedance () min. [50-500MHz]Operating Temperature Range (C)Individual Weight (g)Applicable Cable Outer Diameter (mm)
ZCATZCAT1518-0730(-BK)255040 to 8567max.
ZCATZCAT2017-0930(-BK)205040 to 85119max.
ZCATZCAT2032-0930(-BK)5010040 to 85219max.
ZCATZCAT2132-1130(-BK)408040 to 852211max.
ZCATZCAT3035-1330(-BK)8015040 to 856213max.
ZCAT-AZCAT1325-0530A(-BK)5010040 to 8563 to 5(USB)
ZCAT-AZCAT1730-0730A(-BK)408040 to 85124 to 7(USB/IEEE1394)
ZCAT-AZCAT2035-0930A(-BK)5010040 to 85216 to 9
ZCAT-AZCAT2235-1030A(-BK)5010040 to 85268 to 10
ZCAT-AZCAT2436-1330A(-BK)308040 to 852910 to 13
ZCAT-BZCAT2017-0930B(-BK)205040 to 85129max.
ZCAT-DZCAT3618-2630D(-BK)3040 to 8516For 20 wires flat cable
ZCAT-DZCAT4625-3430D(-BK)3540 to 8534For 26 wires flat cable
ZCAT-DZCAT6819-5230D(-BK)3540 to 8560For 40 wires flat cable
ZCAT-DTZCAT3618-2630DT(-BK)3040 to 8516For 20 wires flat cable
ZCAT-DTZCAT4625-3430DT(-BK)3540 to 8534For 26 wires flat cable
ZCAT-DTZCAT6819-5230DT(-BK)3540 to 8560For 40 wires flat cable
ZCAT**DZCAT10D(-BK)257040 to 8564max.
ZCAT**DZCAT13D(-BK)4010040 to 85155max.
ZCAT**DZCAT20D(-BK)6015040 to 85455max.

Applications

  • PCs
  • Monitors
  • HDDs
  • Digital telephones
  • Audio equipment
  • Electronic musical instruments
  • Video games
  • Copiers
  • Facsimiles

Please note that contents may change without prior notice due to product upgrades. Request delivery specifications for detailed information on features and safe usage.


2412201239_TDK-ZCAT1325-0530A_C383416.pdf
