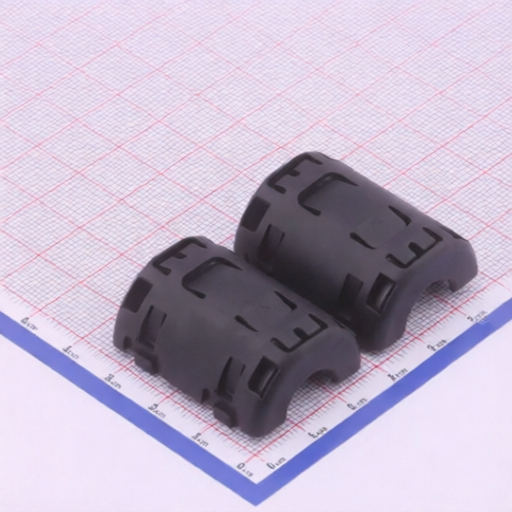

Vehicle ECU noise suppression clamp filter TDK ZCAT12V-BK with ferrite core and self sustaining plastic case design
Vehicle ECU noise suppression clamp filter TDK ZCAT12V-BK with ferrite core and self sustaining plastic case design
Specifications
Mounting Type :
Free Hanging
Impedance @ Frequency :
140Ω@100MHz
Applicable Cable Type :
Round Cable
Combining Form :
Combination
Inner Diameter φ/ Inner Width D :
12mm@φ
Description :
Free Hanging Round Cable Combination Cable Ferrites RoHS
Mfr. Part # :
ZCAT12V-BK
Model Number :
ZCAT12V-BK
Description

Clamp Filters (Ferrite Core with Case) For Automobile ECU ZCAT Series

The ZCAT series clamp filters are designed for noise suppression in automobile ECUs. They offer easy attachment without cutting cables, enhanced mechanical strength, and a wider operational temperature range (-40 to +125C). The plastic case features a self-sustaining mechanism to prevent slipping, and the filters provide excellent high-frequency noise absorption, effectively suppressing common mode noise without affecting signal quality. They are ideal for improving Electromagnetic Susceptibility (EMS) and immunity against surges/noise in automotive applications.

Product Attributes

  • Series Name: ZCAT
  • Type: ZCAT-V-BK
  • Usage: In-vehicle (V=Vehicle)
  • Color: Black (BK)
  • Certifications: RoHS Directive (Conformity to EU Directive 2002/95/EC)
  • Issue Date: September 2012

Technical Specifications

Part No. Max external diameter of the cable (mm) Operating temperature range (C) Temperature range for engagement work (C) Quantity per box Impedance () min. [100MHz] Weight (g)
ZCAT08V-BK 8.0 -40 to +125 0 to +50 350 pieces/box 120 17.0
ZCAT12V-BK 12.0 -40 to +125 0 to +50 120 pieces/box 140 44.4
ZCAT12VN2-BK 12.0 -40 to +125 0 to +50 150 pieces/box 140 45.5

Shapes and Dimensions (mm)

Part No. A B C D E
ZCAT08V-BK 32.51.5 8.01.5 18.41.5 18.91.5
ZCAT12V-BK 34.61.5 12.01.5 27.51.5 27.01.5
ZCAT12VN2-BK 34.61.5 12.51.5 31.21.5 27.21.5 (6.0)

2412201239_TDK-ZCAT12V-BK_C383415.pdf
