Specifications
Power(Watts) :
250mW
Resistance :
4.7kΩ
Voltage Rating :
50V
Temperature Coefficient :
±100ppm/℃
Operating Temperature :
-55℃~+155℃
Type :
Thick Film Resistor
Tolerance :
±1%
Description :
250mW 4.7kΩ 50V ±100ppm/℃ Thick Film Resistor ±1% 0603 Chip Resistor - Surface Mount RoHS
Mfr. Part # :
CRGP0603F4K7
Model Number :
CRGP0603F4K7
Package :
0603
Description

SMD Precision Pulse Thick Film Chip Resistor

The TE Connectivity CRGP Series is a precision pulse withstand thick film chip resistor designed for automatic placement in high-volume manufacturing and general applications. These resistors are suitable for both wave and reflow soldering techniques and are supplied on tape and reel for automated insertion processes. They offer a small size and light weight, making them ideal for compact electronic designs. The series is available in seven different package sizes and features a matte Sn over Ni terminal finish.

Product Attributes

  • Brand: TE Connectivity
  • Series: CRGP
  • Terminal Finish: Matte Sn over Ni
  • Supply Format: Tape and Reel
  • Soldering Techniques: Wave and Reflow
  • Certifications: EU RoHS directive, EU PAHs directive, EU PFOS directive, Halogen free.

Technical Specifications

TypePower Rating @ 70CMax. Working VoltageMax. Overload VoltageDielectric WithstandTemperature RangeDimensions (L x W x H) mmResistance RangeTolerance
CRGP04020.125W50V100V100V-55C ~ +155C1.100.10 x 0.500.05 x 0.350.051R0 10M1%, 5%
CRGP06030.25W50V100V300V-55C ~ +155C1.600.10 x 0.800.10 x 0.450.101R0 10M1%, 5%
CRGP08050.33W150V300V500V-55C ~ +155C2.000.15 x 1.25+0.15/-0.10 x 0.550.101R0 10M1%, 5%
CRGP12060.5W200V400V500V-55C ~ +155C3.100.15 x 1.55+0.15/-0.10 x 0.550.101R0 10M1%, 5%
CRGP12100.75W200V500V500V-55C ~ +155C3.100.10 x 2.600.20 x 0.550.101R0 10M1%, 5%
CRGP20101.25W400V800V500V-55C ~ +155C5.000.10 x 2.500.20 x 0.550.101R0 10M1%, 5%
CRGP25122W500V1000V500V-55C ~ +155C6.350.10 x 3.200.20 x 0.550.101R0 10M1%, 5%

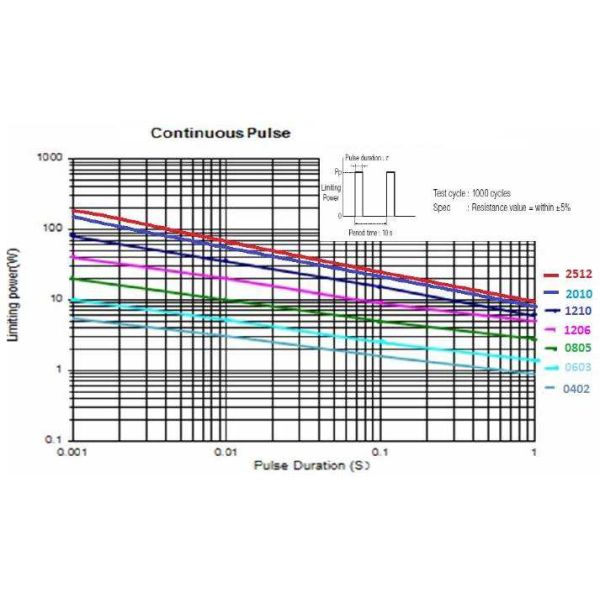

Performance Specifications

CharacteristicLimitsTest Methods (JIS C 5201-1)
Temperature Coefficient100PPM/C (Standard)
*0402: 1-10 : 400 PPM/
11-100 : 200 PPM/
>100 : 100 PPM/		Sub-clause 4.8
Short term overload5%: (2.0% 0.1) Max.
1%: (1.0% 0.1) Max.		Sub-clause 4.13
Terminal Bending(1.0% 0.05) Max.Sub-clause 4.33
Insulation Resistance1,000M or moreSub-clause 5.6
Dielectric Withstand VoltageNo evidence of flashover, mechanical damage, arcing or insulation breakdown.Sub-clause 4.7
Soldering Heat(1.0%+0.05) Max.Sub-clause 4.18
Solderability95% coverage Min.Sub-clause 4.17
Temperature Cycling5%: (3% 0.1) Max.
1%: (0.5% 0.1) Max.		Sub-clause 4.19
Humidity(3.0% + 0.1) Max.Sub-clause 4.24
Load Life In Humidity5%: (3.0% 0.1) Max.
1%: (1.0% 0.1) Max.		Sub-clause 4.24.2.1
Load Life5%: (3.0% 0.1) Max.
1%: (1.0% 0.1) Max.		Sub-clause 4.25.1

Packaging Specifications

TypeTaping TypeReel QtyW (mm)T (mm)
CRGP0402Paper10,0008.00.45
CRGP0603Paper5,0008.00.67
CRGP0805Paper5,0008.00.81
CRGP1206Paper5,0008.00.81
CRGP1210Paper5,0008.00.75
CRGP2010Embossed4,00012.01.0
CRGP2512Embossed4,00012.01.0

2410121615_TE-Connectivity-CRGP0603F4K7_C2074108.pdf
