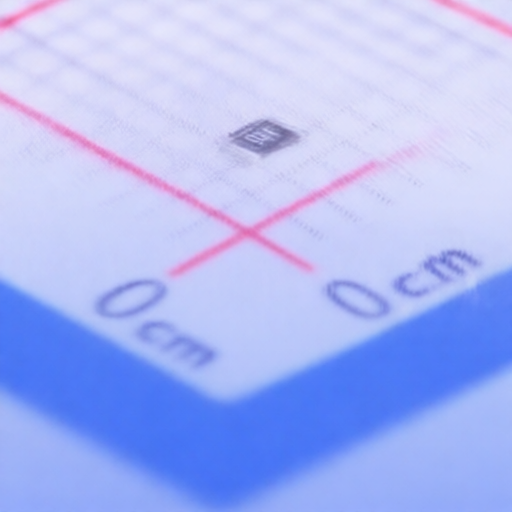

High precision Thin Film Chip Resistor EVER OHMS TR0603D10R0P0510Z with stable resistance and low TCR
High precision Thin Film Chip Resistor EVER OHMS TR0603D10R0P0510Z with stable resistance and low TCR
Specifications
Power(Watts) :
100mW
Resistance :
10Ω
Voltage Rating :
75V
Temperature Coefficient :
±10ppm/℃
Operating Temperature :
-55℃~+155℃
Type :
Thin Film Resistor
Tolerance :
±0.5%
Description :
100mW 10Ω 75V ±10ppm/℃ Thin Film Resistor ±0.5% 0603 Chip Resistor - Surface Mount RoHS
Mfr. Part # :
TR0603D10R0P0510Z
Model Number :
TR0603D10R0P0510Z
Package :
0603
Description

TR Series Thin Film Chip Resistor

The TR Series Thin Film Chip Resistors are designed for high-precision applications, offering excellent stability and reliability. They are suitable for a wide range of electronic devices, including consumer electronics, computers, telecommunication equipment, measuring instruments, and printing equipment. Key advantages include tight tolerances down to 0.1%, low TCR values as low as 10 ppm/, and compliance with environmental standards such as halogen-free and lead-free (RoHS compliant).

Product Attributes

  • Brand: TR Series
  • Product Type: Thin Film Chip Resistor
  • Certifications: Halogen free, Lead free, RoHS compliant

Technical Specifications

TypeSize (Inch)Rated Power at 70Max Working VoltageMax Overload VoltageResistance Range ()T.C.R. (PPM/)Tolerance
TR040204020.063W25V50V1 ~ 10K10, 15, 25, 500.1%, 0.25%, 0.5%, 1%
TR060306030.1W75V150V1 ~ 100K10, 15, 25, 500.1%, 0.25%, 0.5%, 1%
TR080508050.125W150V300V1 ~ 100K10, 15, 25, 500.1%, 0.25%, 0.5%, 1%
TR120612060.25W200V400V1 ~ 100K10, 15, 25, 500.1%, 0.25%, 0.5%, 1%
TR121012100.25W--1 ~ 100K10, 15, 25, 500.1%, 0.25%, 0.5%, 1%
TR201020100.5W--1 ~ 100K10, 15, 25, 500.1%, 0.25%, 0.5%, 1%
TR251225120.75W--1 ~ 100K10, 15, 25, 500.1%, 0.25%, 0.5%, 1%

Dimensions

TYPEL (mm)W (mm)H (mm)l1 (mm)l2 (mm)
TR04021.00 0.100.50 0.050.30 0.050.15 0.100.20 0.10
TR06031.60 0.200.80 0.150.40 0.100.20 0.150.30 0.10
TR08052.00 0.201.25 0.150.50 0.150.20 0.150.40 0.15
TR12063.05 0.101.60 0.200.55 0.150.30 0.200.50 0.20
TR12103.05 0.102.50 0.200.55 0.150.30 0.200.50 0.20
TR20105.00 0.202.50 0.200.55 0.100.30 0.150.60 0.20
TR25126.30 0.203.20 0.200.55 0.100.40 0.200.60 0.20

Performance Characteristics

Operating Temperature Range: -55 to +155.

Reliability Tests and Requirements

Test ItemTest MethodRequirements
Temperature Coefficient of Resistance (T.C.R)JIS C 5201-1 clause 4.8Refer to Standard Electrical Specifications
Short Time OverloadJIS C 5201-1 clause 4.13(0.5%+0.05), No Visual damage
Insulation ResistanceJIS C 5201-1 clause 4.610G
SolderabilityJIS C 5201-1 clause 4.17>95% Coverage, No Visual damage
Resistance to Soldering HeatJIS-C5201-1 clause 4.18(0.5%+0.05), No Visual damage
LeachingJIS-C5201-1 clause 4.18>95% Coverage, No Visual damage
Temperature CyclingJIS C 5201-1 clause 4.19(0.5%+0.05), No Visual damage
High Temperature ExposureJIS-C5201-1 4.25(0.5%+0.05)
Resistance to SolventJIS C 5201-1 clause 4.29(0.5%+0.05), No Visual damage
Load Life in HumidityJIS C 5201-1 clause 4.24(0.5%+0.05)
Load Life (Endurance)JIS C 5201-1 clause 4.25(0.5%+0.05)
Terminal Bending StrengthJIS C 5201-1 clause 4.33(0.5%+0.05), No Visual damage

Recommended Land Pattern Design (For Reflow Soldering)

TypeA (mm)B (mm)C (mm)
04020.601.600.70
06030.802.401.00
08051.302.901.40
12062.204.201.70
12102.004.402.70
20103.806.602.70
25124.908.103.40

Marking

0402 type: No marking.
0603 type: 3 digits code for E96 and E24 values. E192 values are no marking.
0805 ~ 2512 type: 4 digits code.


2304140030_EVER-OHMS-TR0603D10R0P0510Z_C153363.pdf
