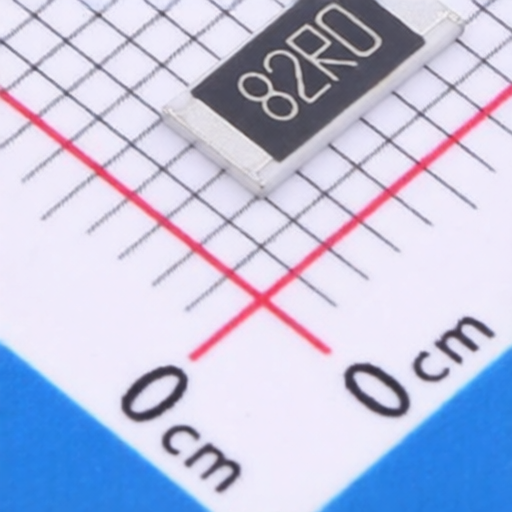

Ceramic Substrate Thick Film Chip Resistor LIZ CR2512F182R0G with Epoxy Protective Layer and Matte Tin Termination
Ceramic Substrate Thick Film Chip Resistor LIZ CR2512F182R0G with Epoxy Protective Layer and Matte Tin Termination
Specifications
Power(Watts) :
1W
Resistance :
82Ω
Voltage Rating :
200V
Temperature Coefficient :
±100ppm/℃
Operating Temperature :
-55℃~+125℃
Type :
Thick Film Resistor
Tolerance :
±1%
Description :
82Ω ±1% 1W 2512 Thick Film Resistor
Mfr. Part # :
CR2512F182R0G
Model Number :
CR2512F182R0G
Package :
2512
Description

Product Overview

This specification covers lead-free thick film chip resistors for use in electronic systems. These resistors are designed for reliable performance in various applications.

Product Attributes

  • Brand: Not specified
  • Origin: Not specified
  • Material: Ceramic Substrate (Al2O3), Conductive layer (Ag), Side conductive layer (NiCr), Resistive layer (RuO2 + glass), Inner protective layer (Glass), Protective layer (Epoxy), Marking (Epoxy), Termination barrier layer (Ni), Termination layer (Matte Tin)
  • Color: Not specified
  • Certifications: Not specified

Technical Specifications

TYPERated Power at 70Max. Working VoltageMax. Overload VoltageResistance Range (ohm)Tolerance (%)T.C.R (ppm/)Max. Rated Current (Jumper)Max. Resistance (Jumper)
CR02011/20W25V50V1~25 (Jumper)
25~10M		0.5% (D)
1% (F)
2% (G)
5% (J)
10% (K)
20% (M)		2500.5A50m
CR04021/16W50V100V1~10 (Jumper)
10~10M
10~22M (20%)		0.5% (D)
1% (F)
2% (G)
5% (J)
10% (K)
20% (M)		100
+500-250		1A50m
CR06031/10W50V100V1~10 (Jumper)
10~10M
10~22M (20%)		0.5% (D)
1% (F)
2% (G)
5% (J)
10% (K)
20% (M)		100
+500-250		1A50m
CR08051/8W150V300V1~10 (Jumper)
10~10M
10~22M (20%)		0.5% (D)
1% (F)
2% (G)
5% (J)
10% (K)
20% (M)		100
+500-250		1.5A50m
CR12061/4W200V400V1~10 (Jumper)
10~10M
10~22M (20%)		0.5% (D)
1% (F)
2% (G)
5% (J)
10% (K)
20% (M)		100
+500-250		1.9A50m
CR12101/3W200V400V1~10 (Jumper)
10~10M
10~22M (20%)		0.5% (D)
1% (F)
2% (G)
5% (J)
10% (K)
20% (M)		100
+500-250		2.2A50m
CR20101/2W200V400V1~10 (Jumper)
10~10M		0.5% (D)
1% (F)
2% (G)
5% (J)
10% (K)		100
+500-250		3A50m
CR25121W200V400V1~10 (Jumper)
10~10M		0.5% (D)
1% (F)
2% (G)
5% (J)
10% (K)		100
+500-250		3A<0.05

2410121258_LIZ-CR2512F182R0G_C5154839.pdf
