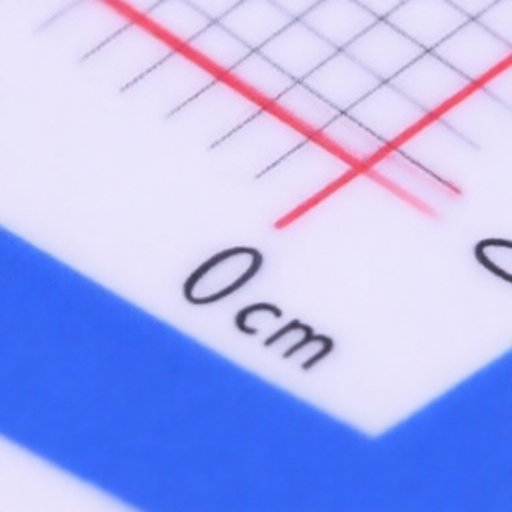

High volume assembly Thick Film Chip Resistors UNI-ROYAL 0402WGF4700TCE for in pdas set top boxes and meters
High volume assembly Thick Film Chip Resistors UNI-ROYAL 0402WGF4700TCE for in pdas set top boxes and meters
Specifications
Power(Watts) :
62.5mW
Resistance :
470Ω
Voltage Rating :
50V
Operating Temperature :
-55℃~+155℃
Type :
Thick Film Resistor
Temperature Coefficient :
±100ppm/℃
Tolerance :
±1%
Description :
470Ω ±1% 62.5mW 0402 Thick Film Resistor
Mfr. Part # :
0402WGF4700TCE
Model Number :
0402WGF4700TCE
Package :
0402
Description

Thick Film Chip Resistors

Uniroyal Electronics Global Co., Ltd. presents a range of Thick Film Chip Resistors designed for high-volume assembly and various electronic applications. These resistors offer small size, light weight, and are suitable for both wave and re-flow soldering, contributing to reduced assembly costs. Key applications include Navigators (GPS), Mobile Phones, Telecom devices, PDAs, Set-top boxes, and Meters.

Product Attributes

  • Brand: RoyalOhm, UniOhm
  • Manufacturer: Uniroyal Electronics Global Co., Ltd.
  • Manufacture Plants: Uniroyal Electronics Industry (kunshan) co., ltd., Uniroyal Electronics Industry Co., Ltd., Uniroyal Electronics Global Co.,Ltd Shenzhen Branch, Aeon Technology Corporation, Uniroyal Electronics Global Co.,Ltd Xiamen Branch, Kunshan Foss Electronic material Co., Ltd., Royal Electronic Factory (thailand) co., ltd
  • Origin: China
  • Date: Feb.12, 2019

Technical Specifications

Part NamePower Rating at 70Resistance Range (0.5%)Resistance Range (1.0%)Resistance Range (2.0%)Resistance Range (5.0%)Max. Working VoltageMax. Overload VoltageOperating Temperature
010051/32W---10-10M10-10M1 -10M15V30V-55~125
02011/20W---1-10M1-10M1-10M25V50V-55~155
04021/16W1-10M1-10M1-10M1-10M50V100V-55~155
06031/10W1-10M0.01-10M0.01-10M0.01-10M75V150V-55~155
06031/8W1-10M0.1R10M0.1R10M0.1R10M75V150V-55~155
08051/4W---0.01R0.10.01R0.10.01R0.1150V300V-55~155
08051/4W1-10M0.1R10M0.1R10M0.1R10M150V300V-55~155
12061/3W---0.01R0.10.01R0.10.01R0.1200V400V-55~155
12101/2W1-10M0.01-10M0.01-10M0.01-10M200V500V-55~155
18123/4W1-10M0.01-10M0.01-10M0.01-10M200V500V-55~155
20103/4W1-10M0.01-10M0.01-10M0.01-10M200V500V-55~155
25121W1-10M0.01-10M0.01-10M0.01-10M200V500V-55~155
TypeDimension (L x W x H) mmA mmB mm
010050.400.02 x 0.200.02 x 0.130.020.100.050.100.03
02010.600.03 x 0.300.03 x 0.230.030.100.050.150.05
04021.000.10 x 0.500.05 x 0.350.050.200.100.250.10
06031.600.10 x 0.800.10 x 0.450.100.300.200.300.20
08052.000.15 x 1.25+0.15/-0.10 x 0.550.100.400.200.400.20
12063.100.15 x 1.55 +0.15/-0.10 x 0.550.100.450.200.450.20
12103.100.10 x 2.600.20 x 0.550.100.500.250.500.20
18124.500.20 x 3.200.20 x 0.550.200.500.200.500.20
20105.000.10 x 2.500.20 x 0.550.100.600.250.500.20
25126.350.10 x 3.200.20 x 0.550.100.600.250.500.20
TypeWelding Plate Dimension (A x B x C x D) mm
010050.140.03 x 0.20.03 x 0.20.03 x 0.540.03
02010.250.05 x 0.350.05 x 0.40.05 x 1.00.05
04020.500.05 x 0.450.05 x 0.50.05 x 1.40.05
06030.90.05 x 0.650.05 x 0.80.05 x 2.10.05
08051.00.1 x 1.00.1 x 1.30.1 x 3.00.1
12062.00.1 x 1.10.1 x 1.60.1 x 4.20.1
12102.00.1 x 1.10.1 x 2.60.1 x 4.20.1
18123.20.1 x 1.40.1 x 3.30.1 x 5.80.1
20103.60.1 x 1.30.1 x 2.60.1 x 6.20.1
25125.00.1 x 1.60.1 x 3.30.1 x 8.20.1

2411221126_UNI-ROYAL-0402WGF4700TCE_C25117.pdf
