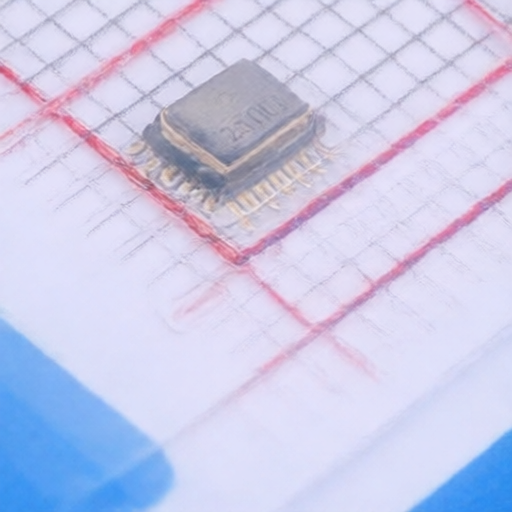

RoHS Compliant Crystal Oscillator HD 8X0250003L1 Featuring LVPECL LVDS and HCSL Output 10 to 250 MHz
RoHS Compliant Crystal Oscillator HD 8X0250003L1 Featuring LVPECL LVDS and HCSL Output 10 to 250 MHz
Specifications
Frequency :
25MHz
Description :
Programmable Oscillator 25MHz SMD3225-6P
Mfr. Part # :
8X0250003L1
Model Number :
8X0250003L1
Package :
SMD3225-6P
Description

Product Overview

This specification applies to the RoHS crystal oscillator with LVPECL/LVDS/HCSL output, designed for use in electronic equipment. It features a SMD3.2x2.5 package and offers a frequency range from 10 to 250 MHz for LVPECL/LVDS and 25 to 175 MHz for HCSL.

Product Attributes

  • Brand: JIANGSU HD CRYSTAL TECHNOLOGY CO.,LTD
  • Origin: Jiangsu Province, China
  • Certifications: RoHS

Technical Specifications

ParameterLVPECL (3.3V)LVPECL (2.5V)LVDS (3.3V)LVDS (2.5V)HCSL (3.3V)HCSL (2.5V)Unit
Supply Voltage (VDD)3.3 V 5%2.5 V 5%3.3 V 5%2.5 V 5%3.3 V 5%2.5 V 5%V
Frequency Range10 - 25010 - 25010 - 25010 - 25025 - 17525 - 175MHz
Supply Current (10MHz FO - 160MHz)- 70- 50- 70- 50- 50- 50mA
Output High2.2751.681.4751.60.60.58V
Output Low- 0.880.9- 0.9- 0.90.150.15V
Transition Time: Rise/Fall Time- 1.0- 1.0- 1.0- 1.0- 1.0- 1.0nSec
Start Time- 10- 10- 10- 10- 10- 10mSec
Tri-Start Enable (Input to Pin 2 or Pin 1)2.311.752.311.750.7V0.7VV
Tri-Start Disable (Input to Pin 2 or Pin 1)- 0.99- 0.75- 0.99- 0.750.3VDD0.3VDDV
RMS Phase Jitter (Integrated 12KHz-20MHz) (80MHz FO)- 1- 1- 1- 1- 0.5- 0.5pSec
RMS Phase Jitter (Integrated 12KHz-20MHz) (125MHz FO)- 0.5- 0.3- 0.5- 0.3- 0.5- 0.5pSec
RMS Phase Jitter (Integrated 12KHz-20MHz) (160MHz FO)- 0.5- 0.3- 0.5- 0.3- 0.5- 0.5pSec
Phase Noise @ 156.25MHz (100Hz)-95-90-125-120--dBc/Hz
Phase Noise @ 156.25MHz (1KHz)-125-125-140-140--dBc/Hz
Phase Noise @ 156.25MHz (10KHz)-140-140----dBc/Hz
Aging (@25C 1st year)333333ppm
Storage Temp. Range-55 - 125-55 - 125-55 - 125-55 - 125-55 - 125-55 - 125C
