Stable Frequency TCXO ECS ECS-TXO-2016-33-320-TR Miniature SMD CMOS with Low Profile Ceramic Package
Stable Frequency TCXO ECS ECS-TXO-2016-33-320-TR Miniature SMD CMOS with Low Profile Ceramic Package
Specifications
Current - Supply :
6mA
Operating Temperature :
-40℃~+85℃
Output Type :
HCMOS
Voltage - Supply :
3.3V
Frequency Stability :
±2.5ppm
Frequency :
32MHz
Description :
HCMOS 3.3V 32MHz SMD2016-4P Oscillators RoHS
Mfr. Part # :
ECS-TXO-2016-33-320-TR
Model Number :
ECS-TXO-2016-33-320-TR
Package :
SMD2016-4P
Description

Product Overview

The ECS-TXO-2016 is a miniature SMD CMOS TCXO with a 2.0 x 1.6 x 0.8 mm ceramic package. It is designed for applications requiring critical stability, such as LoRa WAN and wireless IoT. This TCXO offers a low profile, a compact footprint, and an extended temperature range, making it suitable for space-constrained and demanding environments. It is RoHS compliant.

Product Attributes

  • Brand: ECS
  • Origin: USA (implied by address)
  • Certifications: RoHS Compliant

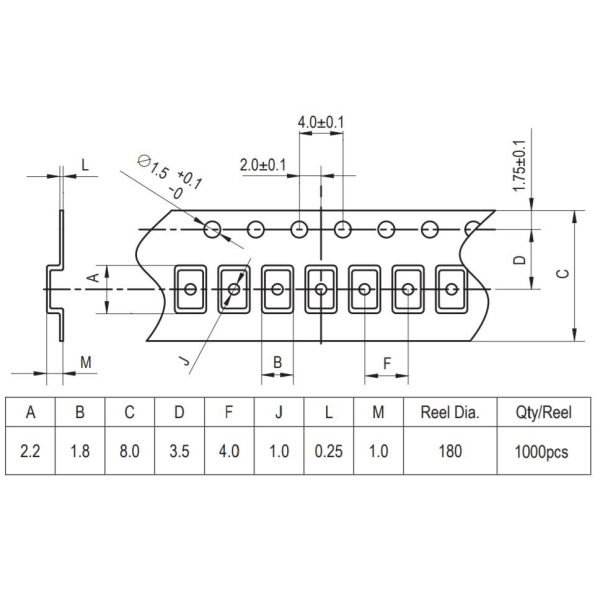

Technical Specifications

ParameterConditionsUnitsMINTYPMAX
Frequency RangeMHz9.50060.000
Frequency Stability Toleranceat +25Cppm 2.0
Frequency Stability ToleranceVs. Temp (-30 ~ +85C)ppm2.0
Frequency Stability ToleranceVs. Temp (-40 ~ +85C)ppm 2.5
Frequency Stability ToleranceVoltage Change Vdd 5%ppm0.2
Frequency Stability ToleranceLoad Change (10%)ppm0.2
Frequency Stability ToleranceAging Per year @ +25Cppm1.0
Supply Voltage (Vdd)Specify in P/NV DC+1.8, +2.5, +2.8, +3.310%
Standby CurrentA10
Output LoadpF15
Output Voltage LevelVOL:10%Vdd max./VOH:90%Vdd min.V DC
Rise & Fall time10%Vdd 90%Vddns5
Duty Cycle@ Vdd%4555
Phase Noise@ 10 KHz offsetdBc/Hz-145
Tri State FunctionPin 1Output High or NCActive Low DisableHi-Z
Pad Connections1Tri-state
Pad Connections2Gnd
Pad Connections3Output
Pad Connections4Vdd
Current Consumption+1.8V & +2.5VmA Max3.13.74.2
Current Consumption+2.8V & +3.3VmA Max4.04.85.5
Soldering ProfilePeak solder TempC+260 Max
Soldering ProfileDurationsec10 Max
Soldering ProfileCycles2 Max
Soldering ProfileMSL1
Soldering ProfileLead FinishAu

2410121447_ECS-ECS-TXO-2016-33-320-TR_C2451473.pdf
