Low phase noise quartz pll oscillators RENESAS XK03R156R312R625I with flexible output voltage options
Low phase noise quartz pll oscillators RENESAS XK03R156R312R625I with flexible output voltage options
Low phase noise quartz pll oscillators RENESAS XK03R156R312R625I with flexible output voltage options
Low phase noise quartz pll oscillators RENESAS XK03R156R312R625I with flexible output voltage options
Low phase noise quartz pll oscillators RENESAS XK03R156R312R625I with flexible output voltage options
Low phase noise quartz pll oscillators RENESAS XK03R156R312R625I with flexible output voltage options
Specifications
Description :
Oscillators RoHS
Mfr. Part # :
XK03R156R312R625I
Model Number :
XK03R156R312R625I
Description

Renesas XK Ultra-low Phase Noise Quartz-based PLL Oscillators

The XK devices, also known as ProXO II, are second-generation high-performance oscillators building upon the XF ProXO series. These devices feature internal regulators for superior PSNR and are available in industry-standard package footprints. Each unit can be factory-programmed with up to three frequencies and/or output types, selectable via a 3-level FS pin. They are designed for demanding applications requiring low phase jitter and high stability.

Product Attributes

  • Brand: Renesas
  • Product Family: XK (ProXO II)

Technical Specifications

FeatureSpecification

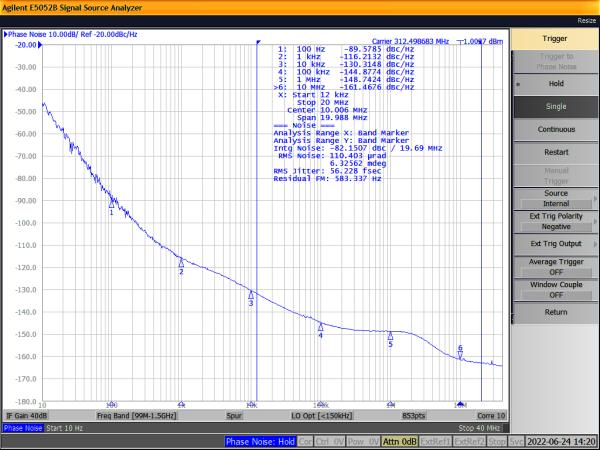

Phase Jitter (typical)55fs RMS (12kHz to 20MHz) at 156.25MHz
Output Frequency Range50MHz to 1250MHz
Package Options1.8 1.4 0.85 mm (1.6 1.2 mm footprint compatible)
2.0 1.6 0.85 mm
2.5 2.0 0.7 mm
3.2 2.5 0.7 mm
Supply Voltage Options1.8V, 2.5V, 3.3V
Output TypesLVDS, CML, HCSL (1.8V, 2.5V, 3.3V)
LVPECL (3.3V only)
LVCMOS differential (1.8V only)
Total Stability (typical)25ppm (1.8V)
30ppm (2.5V, 3.3V)
Operating Temperature-40C to +85C
Applications10G to 800G Ethernet, 100G to 400G OTN, 3G to 24G SDI broadcast video, Servers, Switches, Storage, Accelerators, NICs, HBAs
Frequency Select3-level FS pin for up to three factory-programmed frequencies/output types
Output Enable/DisableOE pin functionality available
Start-up Time (typical)15ms
Output Enable/Disable Time (typical)0.1ms

2412161840_RENESAS-XK03R156R312R625I_C21503481.pdf
