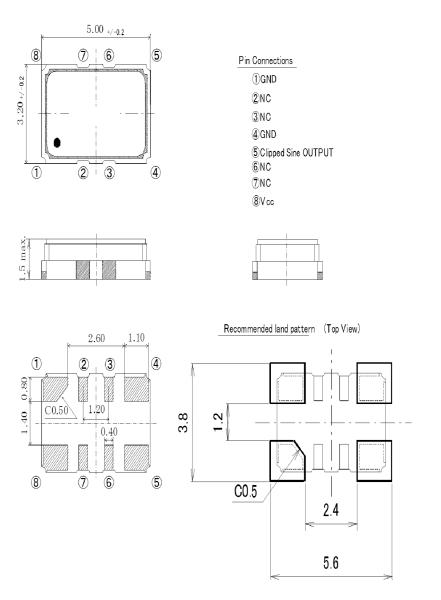

Crystal oscillator muRata XNCLH19M200THJA1P0 19200000 megahertz frequency compact 5.0 by 3.2 millimeter size for GPS
Crystal oscillator muRata XNCLH19M200THJA1P0 19200000 megahertz frequency compact 5.0 by 3.2 millimeter size for GPS
Specifications
Current - Supply :
2mA
Operating Temperature :
-40℃~+85℃
Output Type :
Clipped sine wave
Voltage - Supply :
3V
Frequency Stability :
±200ppb
Frequency :
19.2MHz
Description :
Clipped sine wave 3V 19.2MHz SMD5032-8P Oscillators RoHS
Mfr. Part # :
XNCLH19M200THJA1P0
Model Number :
XNCLH19M200THJA1P0
Package :
SMD5032-8P
Description

Product Overview

This specification defines the Murata Part Number XNCLH19M200THJA1P0, a crystal oscillator designed for communication systems and GPS applications. It offers a nominal frequency of 19.200000MHz and a compact size of 5.0 x 3.2mm. Please contact Murata Manufacturing Co., Ltd. for any applications other than those specified.

Product Attributes

  • Brand: Murata
  • Part Number: XNCLH19M200THJA1P0
  • Origin: Japan (implied by company name)
  • Material: Not specified
  • Color: Not specified
  • Certifications: Not specified

Technical Specifications

ItemSpecificationNotes
Nominal Frequency19.200000MHz
Operating Temperature Range-40+85
Supply Voltage (Vcc)DC:+3.0V5%
Current Consumption2.0mA max.
Output Level0.8Vp-p min.*1
Load Condition(10k//10pF)10%
Output WaveClipped Sine WaveDC coupling)*1
Frequency Shift by Temperature0.2ppm max.(-40+85), from initial value @+25, *2
Frequency Voltage Coefficient0.05ppm max.(DC:+3.0V5%)
Frequency Load Coefficient0.05ppm max.(10k//10pF)10%
Frequency Aging0.5ppm max.(1year.), @+252
Frequency Tolerance after Reflow-soldering1.0ppm max.(2times.), *3
Frequency Tolerance0.5ppm max.@+252, *4
Storage Temperature Range-40+85
Free Fall75cm height, 3 timesNo visible damage, meets Table 1
Vibration (Sinusoidal)1055Hz, 1.5mm amplitude, 3 directions x 2 hoursMeets Table 1
Board Flex4mm deflection, 20 sec holdPCB thickness: 1.6mm, pressurization rate: 1.00.5mm/s, meets Table 1
SolderabilityLead free solder (Sn-3.0Ag-0.5CuImmersed in +2453C solder for 3.00.5s after aging. 95% or more terminal surface coated.
High Temperature Exposure (Storage)+852C, 1000 hoursMeets Table 1
Cold (Storage)-402C, 1000 hoursMeets Table 1
Humidity+852C, 85%R.H., 1000 hoursMeets Table 1
Temperature Cycling100 cycles (-40C for 30 min to +85C for 30 min)Meets Table 1
Frequency deviation (after test)2.0ppm max.From initial value, measured after 4-12 hours at room temp/humidity.
Output Level (after test)0.8V p-p min.
Current Consumption (after test)2.0mA max.

2411271943_muRata-XNCLH19M200THJA1P0_C1988656.pdf
