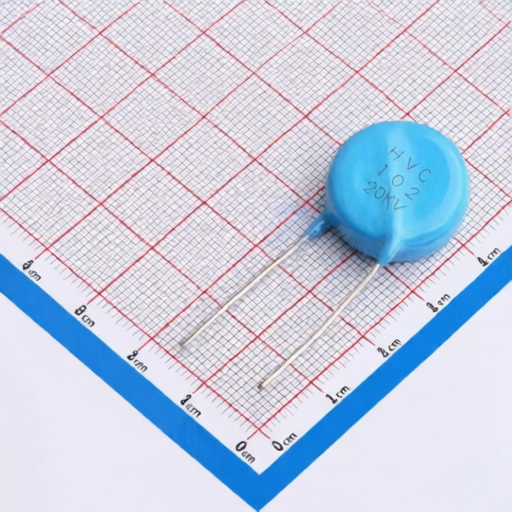

Ceramic disc capacitor HVC HVC-20KV-DL21-F12.5-102K rated 20 kilovolts for high voltage applications
Ceramic disc capacitor HVC HVC-20KV-DL21-F12.5-102K rated 20 kilovolts for high voltage applications
Specifications
Voltage Rating :
20kV
Capacitance :
1nF
Body Thickness :
10mm
Tolerance :
±10%
Pin Spacing :
12.5mm
Description :
20kV 1nF ±10% Through Hole,P=12.5mm Ceramic Capacitors RoHS
Mfr. Part # :
HVC-20KV-DL21-F12.5-102K
Model Number :
HVC-20KV-DL21-F12.5-102K
Package :
Through Hole,P=12.5mm
Description

Product Overview

The HVC-20KV-DL21-F12.5-102K is a high voltage ceramic disc capacitor designed for high voltage electric equipment. It features a N4700 -grade ceramic dielectric material, offering high reliability and performance in demanding applications. This capacitor is suitable for use in various high-voltage electronic equipment, including medical devices, airport security, and non-destructive testing.

Product Attributes

  • Brand: HVC Capacitor
  • Origin: Manufacturing Co.,Ltd. (Hong Kong-funded enterprise)
  • Material: N4700 -grade ceramic dielectric
  • Color: Blue ceramic disc type (as per company profile, though not explicitly stated for this model)
  • Certifications: Not specified in the provided text.

Technical Specifications

Part NumberTemperature CharacteristicRated Voltage (kV DC)Capacitance (pF)Capacitance Tolerance (%)Dimensions (mm) D x T x FLead StylePacking TypeTest Voltage (kV DC)Insulation Resistance (M)Dissipation Factor (%)Lead Strength (N)Bending ()Solderability (C)Soldering Effect Capacitance Change (%)
HVC-20KV-DL21-F12.5-102KN47002010001021 x 10 x 12.5Straight longBulk150% of rated voltage (60s)200,0000.2 max.10902355C (2s) / 35010C (3.5s)10

2410121632_HVC-HVC-20KV-DL21-F12-5-102K_C36498935.pdf
