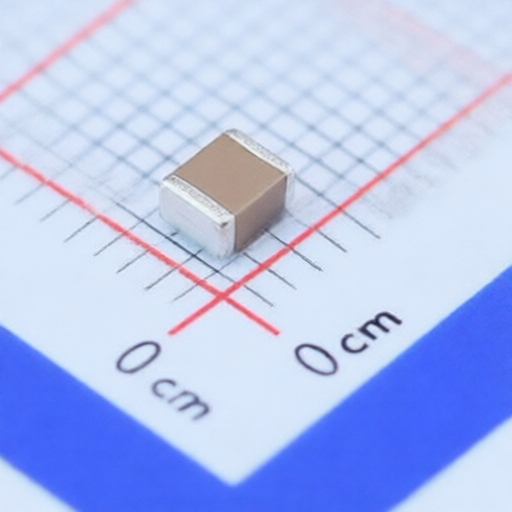

Commercial Grade Multilayer Ceramic Capacitor IHHEC C1210X473K501T for DC DC Converters and Ballasts
Commercial Grade Multilayer Ceramic Capacitor IHHEC C1210X473K501T for DC DC Converters and Ballasts
Specifications
Voltage Rating :
500V
Capacitance :
47nF
Temperature Coefficient :
X7R
Tolerance :
±10%
Description :
47nF ±10% 500V Ceramic Capacitor X7R 1210
Mfr. Part # :
C1210X473K501T
Model Number :
C1210X473K501T
Package :
1210
Description

Holy Stone Enterprise Co., Ltd. MVC Series - Middle Voltage Ceramic Capacitors

The Holy Stone MVC Series offers commercial-grade multilayer ceramic chip capacitors designed for middle voltage applications ranging from 100V to 630V. These capacitors feature a special internal electrode design for high voltage ratings, are suitable for surface mount technology (wave and reflow soldering), and provide high reliability. They are RoHS compliant and ideal for use in LAN/WLAN interfaces, back-lighting inverters, DC-DC converters, ballasts, modems, and power supplies.

Product Attributes

  • Brand: Holy Stone
  • Origin: Taiwan (implied by .tw domain)
  • Material: Ceramic
  • Certifications: RoHS compliant

Technical Specifications

ParameterValue
SeriesMVC Series
TypeMultilayer Ceramic Chip Capacitor (MLCC)
GradeCommercial
Operation Temperature-55 to +125
Rated Voltage100Vdc to 630Vdc
Temperature CoefficientNP0: 30ppm/ (-55 to +125 , EIA Class I)
X7R: 15% (-55 to +125 , EIA Class II)
Dissipation FactorNP0: Q1000
X7R: D.F.2.5%
Insulation Resistance10G or 500/C (whichever is smaller)
AgingNP0: 0%
X7R: Typically 2.5% per decade of time
Dielectric Strength100V V < 500V: 200% Rated Voltage
500V V < 1000V: 150% Rated Voltage
Chip Sizes0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225
Dielectric TypesNP0 (N), X7R (X)
PackagingT/R 7 (T), T/R 13 (R), Bulk (B)
Special RequirementsArc Prevention Coating (O), Polymer Termination (Super Term) (X)

Capacitance Range Chart (NP0)

SizeCapacitance Range (pF)
0603101 to 104
0805101 to 105
1206101 to 106
1210101 to 106
1812101 to 106
2220101 to 106
1825101 to 106
2225101 to 106

Capacitance Range Chart (X7R)

SizeVoltageCapacitance Range (pF)
0603100V, 200V, 250V101 to 685
0805100V, 200V, 250V101 to 106
1206100V, 200V, 250V, 500V, 630V101 to 106
1210100V, 200V, 250V, 500V, 630V101 to 106
1808100V, 200V, 250V3R3 to 470
1812100V, 200V, 250V, 500V, 630V101 to 106
1825500V, 630V101 to 106
2220100V, 200V, 250V, 500V, 630V101 to 106
2225500V, 630V101 to 106

2508251035_IHHEC-C1210X473K501T_C106119.pdf
