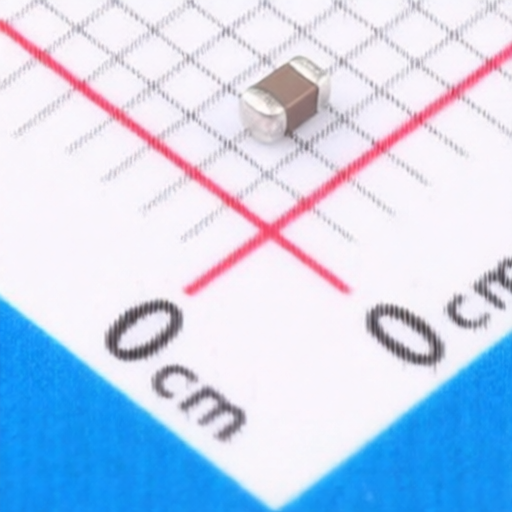

Multi Layer Ceramic Capacitors with CCTC TCC0603X5R105K500CT Specification and X5R Dielectric Material
Multi Layer Ceramic Capacitors with CCTC TCC0603X5R105K500CT Specification and X5R Dielectric Material
Specifications
Voltage Rating :
50V
Capacitance :
1uF
Temperature Coefficient :
X5R
Tolerance :
±10%
Description :
1uF ±10% 50V Ceramic Capacitor X5R 0603
Mfr. Part # :
TCC0603X5R105K500CT
Model Number :
TCC0603X5R105K500CT
Package :
0603
Description

Multi-Layer Ceramic Capacitors - Specification for Approval

This document outlines the specifications for Multi-Layer Ceramic Capacitors (MLCCs) manufactured by (Chaozhou Three-Circle (Group) Co., Ltd.). It details product classifications, structure, naming conventions, capacitance ranges, dimensions, technical requirements, testing conditions, and usage precautions.

Product Attributes

  • Brand: (Chaozhou Three-Circle (Group) Co., Ltd.)
  • Product Name: Multi-Layer Ceramic Capacitors
  • Product Specification: General Series
  • Certifications: RoHS, REACH, Halogen-Free (mentioned in revision history)

Technical Specifications

SectionDescription
1. Types of Capacitor and Dielectric MaterialClass I (COG/NPO): Stable electrical properties, minimal change with temperature, voltage, and time. Suitable for low-loss, high-stability circuits like filters, oscillators, and timing circuits.
Class II (X7R, X7S, X7T, X6R, X6S, X6T, X5R): High dielectric constant, higher capacitance than Class I. Semi-stable temperature characteristics, suitable for a wide capacitance range in circuits requiring less stringent stability, such as DC-blocking, decoupling, bypassing, and frequency discrimination.
2. Product Structure1. Ceramic dielectric
2. Inner electrode
3. Outer electrode
4. Nickel layer
5. Tin layer
3. General Product Parts Numbering SystemExample: TCC 0805 X5R 105 M 500 F T
Code Breakdown:
  • TCC: Code of Ceramic Capacitor
  • Chip Size: e.g., 0105 (0.40x0.20mm), 0201 (0.60x0.30mm), 0402 (1.00x0.50mm), 0603 (1.60x0.80mm), 0805 (2.00x1.25mm), 1206 (3.20x1.60mm), 1210 (3.20x2.50mm), 1812 (4.50x3.20mm), 2220 (5.70x5.00mm)
  • Capacitance: e.g., 105 = 10 x 10^5 pF = 1,000,000pF (1uF)
  • Temperature Characteristic: COG(NPO), X7R, X7S, X7T, X6R, X6S, X6T, X5R
  • Capacitance Tolerance: A=0.05pF, B=0.1pF, C=0.25pF, D=0.5pF, F=1.0%, G=2.0%, J=5.0%, K=10%, M=20%, Z=-20/+80%
  • Thickness: Y:0.20mm, Z:0.30mm, A:0.50mm, B:0.60mm, C:0.80mm, D:0.85mm, E:1.00mm, F:1.25mm, H:1.60mm, G:2.00mm, M:2.50mm
  • Rated Voltage: 2R5=2.5V, 4R0=4.0V, 6R3=6.3V, 100=10V, 160=16V, 250=25V, 350=35V, 500=50V, 101=100V, 201=200V, 251=250V, 501=500V, 631=630V, 102=1000V, 202=2000V
  • Packing: B: bulk packaging in a bag, T: tape carrier packaging of small reel, W: tape carrier packaging of big reel

Attention: Recommended operating temperature drop limit is less than 20 and operating voltage drop limit is more than 30%.

Dielectrics Characteristic Group
DielectricsOperating Temperature RangeTemperature Coefficient or Characteristic
COGNPO-55~+125030ppm/
X7R-55~+12515%
X7S-55~+12522%
X7T-55~+125+22/-33%
X6R-55~+10515%
X6S-55~+10522%
X6T-55~+105+22/-33%
X5R-55~+8515%
4. Product Capacitance Range (Example: 0105/0402 Size)(Capacitances are for reference only; actual range depends on requirements.)
Cp/VDCCOG SeriesX7R SeriesX6T SeriesX5R Series
50352516106.350352516106.350352516106.350352516106.3
0R1YYYYYYYYYYYYYYYYYYYYYYYY
0R2YYYYYYYYYYYYYYYYYYYYYYYY
0R3YYYYYYYYYYYYYYYYYYYYYYYY
0R4YYYYYYYYYYYYYYYYYYYYYYYY
0R5YYYYYYYYYYYYYYYYYYYYYYYY
0R6YYYYYYYYYYYYYYYYYYYYYYYY
0R7YYYYYYYYYYYYYYYYYYYYYYYY
0R8YYYYYYYYYYYYYYYYYYYYYYYY
0R9YYYYYYYYYYYYYYYYYYYYYYYY
1R0YYYYYYYYYYYYYYYYYYYYYYYY
1R1YYYYYYYYYYYYYYYYYYYYYYYY
1R2YYYYYYYYYYYYYYYYYYYYYYYY
1R3YYYYYYYYYYYYYYYYYYYYYYYY
1R5YYYYYYYYYYYYYYYYYYYYYYYY
1R6YYYYYYYYYYYYYYYYYYYYYYYY
1R8YYYYYYYYYYYYYYYYYYYYYYYY
2R0YYYYYYYYYYYYYYYYYYYYYYYY
2R2YYYYYYYYYYYYYYYYYYYYYYYY
2R4YYYYYYYYYYYYYYYYYYYYYYYY
2R7YYYYYYYYYYYYYYYYYYYYYYYY
3R0YYYYYYYYYYYYYYYYYYYYYYYY
3R3YYYYYYYYYYYYYYYYYYYYYYYY
3R6YYYYYYYYYYYYYYYYYYYYYYYY
5. Product Dimensions(Details not provided in excerpt)
6. Specification and Test Condition(Details not provided in excerpt)
7. Packing(Details not provided in excerpt)
8. Precautions on the use of MLCC(Details not provided in excerpt)
