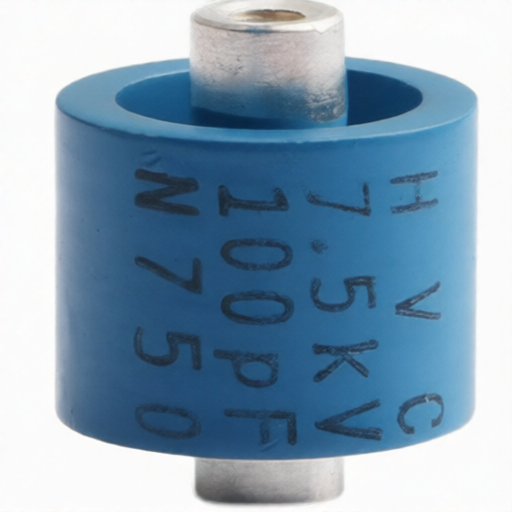

High Power Ceramic Capacitor HVC HVCHF-A-101-7.5kV Grade Dielectric for Radio and Aerospace
High Power Ceramic Capacitor HVC HVCHF-A-101-7.5kV Grade Dielectric for Radio and Aerospace
Specifications
Description :
Ceramic Capacitors RoHS
Mfr. Part # :
HVCHF-A-101-7.5kV
Model Number :
HVCHF-A-101-7.5kV
Description

Product Overview

The HVC HVCHF series high-frequency high-power ceramic capacitors are designed for demanding applications in radio communication, broadcast transmitters, radar engineering, aerospace, and medical equipment. These capacitors are known for their low loss, high reliability, and high rated voltage, offering a robust alternative to established international brands. They are particularly suited for RF power supplies, dielectric heating, medical gem smelting, and radar communication.

Product Attributes

  • Brand: HVC
  • Origin: China
  • Material: -grade ceramic dielectric (N4700), NPO, N750, N4700, Y5T, X5U
  • Color: Blue (ceramic chip type), Black (bolt type, epoxy resin encapsulation)
  • Certifications: Not specified in the provided text.

Technical Specifications

Manufacturer P/NCapacitance (pF)DielectricRated Voltage (kV)Diameter (mm)Customer Part No. (Example)
HVCHF-A-10P-7.5KV10NP07.520HT50V100KA
HVCHF-A-15P-7.5KV15NP07.520HT50V150KA
HVCHF-A-25P-7.5KV25NP07.520HT50V250KA
HVCHF-A-30P-7.5KV30NP07.520HT50V300KA
HVCHF-A-35P-7.5KV35NP07.520HT50V350KA
HVCHF-A-40P-7.5KV40NP07.520HT50V400KA
HVCHF-A-45P-7.5KV45NP07.520HT50V450KA
HVCHF-A-50P-7.5KV50NP07.520HT50V500KA
HVCHF-A-55P-7.5KV55NP07.520HT50V550KA
HVCHF-A-60P-7.5KV60NP07.520HT50V600KA
HVCHF-A-65P-7.5KV65NP07.520HT50V650KA
HVCHF-A-75P-7.5KV75N7507.520HT50V750KA
HVCHF-A-101-7.5KV100N7507.520HT50V101KA
HVCHF-A-151-7.5KV150N7507.520HT50V151KA
HVCHF-A-171-7.5KV170N7507.520HT50V171KA
HVCHF-A-201-7.5KV200N47007.520HT50V201KA
HVCHF-A-301-7.5KV300N47007.520HT50V301KA
HVCHF-A-401-7.5KV400N47007.520HT50V401KA
HVCHF-A-501-7.5KV500N47007.520HT50V501KA
HVCHF-A-601-7.5KV600N47007.520HT50V601KA
HVCHF-A-701-7.5KV700N47007.520HT50V701KA
HVCHF-A-UJ-40P-7.5KV40N7507.520HT58V400KA
HVCHF-A-UJ-50P-7.5KV50N7507.520HT58V500KA
HVCHF-A-UJ-60P-7.5KV60N7507.520HT58V600KA
HVCHF-A-UJ-65P-7.5KV65N7507.520HT58V650KA
HVCHF-B-10P-15KV10NP01530HT57Y100KA
HVCHF-B-25P-15KV25NP01530HT57Y250KA
HVCHF-B-50P-15KV50NP01530HT57Y500KA
HVCHF-B-60P-15KV60NP01530HT57Y600KA
HVCHF-B-75P-15KV75N7501530HT57Y750KA
HVCHF-B-101-15KV100N7501530HT57Y101KA
HVCHF-B-151-15KV150N7501530HT57Y151KA
HVCHF-B-201-15KV200N7501530HT57Y201KA
HVCHF-B-251-15KV250N47001530HT57Y251KA
HVCHF-B-301-15KV300N47001530HT57Y301KA
HVCHF-B-401-15KV400N47001530HT57Y401KA
HVCHF-B-501-15KV500N47001530HT57Y501KA
HVCHF-C-50P-25KV50NP02558HT594500MA
HVCHF-C-75P-25KV75NP02558HT594750MA
HVCHF-C-101-25KV100NP02558HT594101MA
HVCHF-C-131-25KV130NP02558HT594131MA
HVCHF-C-151-25KV150N7502558HT594151MA
HVCHF-C-201-25KV200N7502558HT594201MA
HVCHF-C-251-25KV250N7502558HT594251MA
HVCHF-C-301-25KV300N47002558HT594301MA
HVCHF-C-501-25KV500N47002558HT594501MA
HVCHF-C-701-25KV700N47002558HT594701MA
HVCHF-C-801-25KV800N47002558HT594801MA
HVCHF-C-102-25KV1000N47002558HT594102MA
HVCHF-C-152-25KV1500N47002558HT594152MA
HVCHF-A-DL-501-7.5KV500N47007.520HH58V501KA
HVCHF-A-DL-701-7.5KV700N47007.520HH58V701KA
HVCHF-A-DL-901-7.5KV900N47007.520HH58V901KA
HVCHF-A-E-102-7.5KV1000Y5U7.520HH58V102KA
HVCHF-A-E-202-7.5KV2000Y5U7.520HH58V202KA
HVCHF-A-E-252-7.5KV2500Y5U7.520HH58V252KA
HVCHF-B-DL-751-15KV750N47001530HH57Y751KA
HVCHF-B-DL-102-15KV1000N47001530HH57Y102KA
HVCHF-B-2E2-122-15KV12002E21530HH57Y122KA
HVCHF-B-2E2-152-15KV15002E21530HH57Y152KA
HVCHF-A-NP0-10P-7.5KV10NP07.5207FAA100K
HVCHF-A-NP0-20P-7.5KV20NP07.5207FAA200K
HVCHF-A-NP0-25P-7.5KV25NP07.5207FAA250K
HVCHF-A-NP0-30P-7.5KV30NP07.5207FAA300K
HVCHF-A-NP0-50P-7.5KV50NP07.5207FAA500K
HVCHF-A-N750-75P-7.5KV75N7507.5207FAU750K
HVCHF-A-N750-101-7.5KV100N7507.5207FAU101K
HVCHF-A-E-501-5KV500Y5U5205FAE501M
HVCHF-A-E-801-5KV800Y5U5205FAE801M
HVCHF-A-E-102-5KV1000Y5U5205FAE102M
HVCHF-B-NP0-10P-15KV10NP01530BS030033BJ10036AC1
HVCHF-B-NP0-25P-15KV25NP01530BS030033BJ25036AC1
HVCHF-B-NP0-50P-15KV50NP01530BS030033BJ50036AC1
HVCHF-B-N750-75P-15KV75N7501530BS030033BJ75036AL1
HVCHF-B-N750-101-15KV100N7501530BS030033BJ10136AL1
HVCHF-B-N750-151-15KV150N7501530BS030033BJ15136AL1
HVCHF-B-N750-201-15KV200N7501530BS030033BJ20136AL1
HVCHF-B-N4700-301-15KV300N47001530BS030033BJ30136AQ1
HVCHF-B-N4700-401-15KV400N47001530BS030033BJ40136AQ1
HVCHF-B-N4700-501-15KV500N47001530BS030033BJ50136AQ1
HVCHF-B-N4700-751-15KV750N47001530BS030033BJ75138AV1
HVCHF-B-N4700-102-15KV1000N47001530BS030033BJ10238AV1
HVCHF-B-N4700-122-15KV1200N47001530BS030033BJ12238AV1
HVCHF-B-N4700-152-15KV1500N47001530BS030033BJ15238AV1
HVCHF-B1-NP0-10P-7.5KV10NP07.521BS020016VZ10036AC1
HVCHF-B1-NP0-15P-7.5KV15NP07.521BS020016VZ15036AC1
HVCHF-B1-NP0-25P-7.5KV25NP07.521BS020016VZ25036AC1
HVCHF-B1-NP0-30P-7.5KV30NP07.521BS020016VZ30036AC1
HVCHF-B1-NP0-40P-7.5KV40NP07.521BS020016VZ40036AC1
HVCHF-B1-NP0-50P-7.5KV50NP07.521BS020016VZ50036AC1
HVCHF-B1-N750-75P-7.5KV75N7507.521BS020016VZ75036AL1
HVCHF-B1-N750-101-7.5KV100N7507.521BS020016VZ10136AL1
HVCHF-B1-N4700-151-7.5KV150N47007.521BS020016VZ15136AS1
HVCHF-B1-N4700-201-7.5KV200N47007.521BS020016VZ20136AS1
HVCHF-B1-N4700-301-7.5KV300N47007.521BS020016VZ30136AS1
HVCHF-B1-N4700-401-7.5KV400N47007.521BS020016VZ40138AT1
HVCHF-B1-N4700-501-7.5KV500N47007.521BS020016VZ50138AT1
HVCHF-B1-N4700-601-7.5KV600N47007.521BS020016VZ60138AU1
HVCHF-B1-N4700-801-7.5KV800N47007.521BS020016VZ80138AU1
HVCHF-B1-N4700-102-7.5KV1000N47007.521BS020016VZ10238AV1
HVCHF-B1-N4700-152-7.5KV1500N47007.521BS020016VZ15238AV1
HVCHF-B1-E-202-7.5KV2000Y5U7.521BS020016VZ20238BA1
HVCHF-B1-E-252-7.5KV2500Y5U7.521BS020016VZ25238BA1
