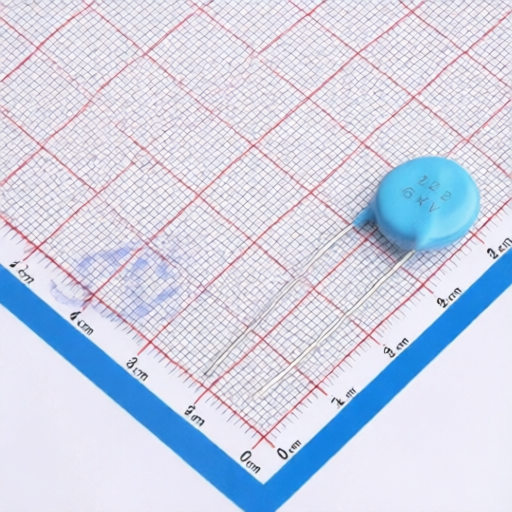

High Voltage Capacitor 6KV Ceramic Disc HVC HVC-6KV-D15-F10-222K 2200PF Y5T Dielectric Bulk Packaging
High Voltage Capacitor 6KV Ceramic Disc HVC HVC-6KV-D15-F10-222K 2200PF Y5T Dielectric Bulk Packaging
Specifications
Voltage Rating :
6kV
Capacitance :
2.2nF
Body Thickness :
7mm
Tolerance :
±10%
Pin Spacing :
10mm
Description :
6kV 2.2nF ±10% Through Hole,P=10mm Ceramic Capacitors RoHS
Mfr. Part # :
HVC-6KV-D15-F10-222K
Model Number :
HVC-6KV-D15-F10-222K
Package :
Through Hole,P=10mm
Description

Product Overview

High Voltage Ceramic Capacitor designed for high voltage electric equipment. This capacitor offers reliable performance in demanding applications and is manufactured by HVC Capacitor Manufacturing Co., Ltd.

Product Attributes

  • Brand: HVC
  • Origin: China
  • Material: Ceramic (Y5T, N4700 -grade dielectric material)
  • Color: Blue (ceramic disc type), Black (bolt type)
  • Certifications: Not explicitly mentioned, but N4700 is described as -grade.

Technical Specifications

Part NumberTemperature CharacteristicDC Rated Voltage (kV)Capacitance (pF)Capacitance Tolerance (%)Dimensions (mm) (D x T x F)Lead Spacing (mm)Lead StylePacking TypeDiameter (mm)
HVC-6KV-D15-F10-222KY5T62200±10(D=15, T=7, F=10)10Straight longBulk15
HVC Y5T 6KV 222KY5T62200±10(D=15, T=7, F=10)10Straight longBulk15

2410121632_HVC-HVC-6KV-D15-F10-222K_C36498918.pdf
