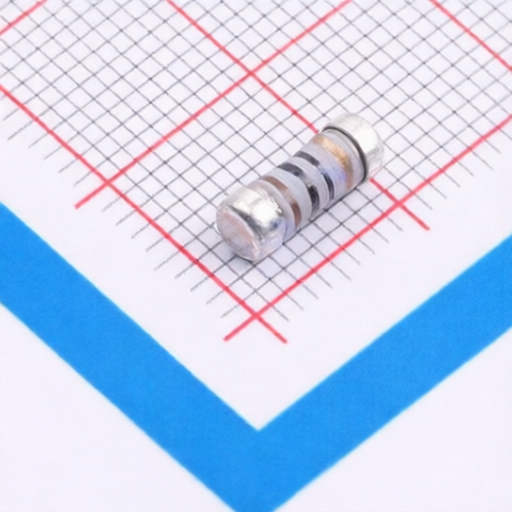

Non Flammable Wire Wound Wafer Resistor Huaxing Mechanical-Elec RXM0309-10RJ with UL1412 Certification
Non Flammable Wire Wound Wafer Resistor Huaxing Mechanical-Elec RXM0309-10RJ with UL1412 Certification
Specifications
Resistance :
10Ω
Operating Temperature :
-55℃~+275℃
Type :
Wirewound Resistor
Tolerance :
±5%
Description :
10Ω Wirewound Resistor ±5% MELF-0309 Chip Resistor - Surface Mount RoHS
Mfr. Part # :
RXM0309-10RJ
Model Number :
RXM0309-10RJ
Package :
MELF-0309
Description

Product Overview

The RXM series wire-wound wafer resistors are non-flammable, coated resistors designed for applications in chargers, energy-saving lamps, and power supply units. They are constructed with a wire wrapping on a ceramic matrix, insulated with a non-flammable coating, and feature solvent-proof markings. These resistors offer a wide operating temperature range and various tolerance options.

Product Attributes

  • Brand: SHENZHEN XIANYANG HUAXING MACHINERG & ELECTRONIC.CO;LTD
  • Origin: China
  • Material: Nickel Chrome or Nickel Copper alloy wire, Non-flammable coating
  • Color: Grey body coating
  • Certifications: UL1412 standard (for Incombustibility)

Technical Specifications

TypeSeriesRated WattageNominal Resistance Value UnitToleranceResistance RangeOperating Temperature RangeConstructionDimensions (L x D x D1 x D2 x S x C) (mm)
Wire Wound Wafer ResistorRXM1/4W, 1/2W, 1W, 2W, 3W (E-24 Series)1% (F), 2% (G), 5% (J)1 - 100-55275Terminal, Nonflame Paint, Insulation Coating, Matrix, Wire Wrapping0207: 6.10.3 x 2.5 x 2.15 x 2.6 x 0.20.05 x 1.20.1
0309: 8.90.3 x 3.4 x 2.95 x 3.45 x 0.20.05 x 1.60.1
0410: 100.5 x 3.8 x 3.5 x 4.0 x 0.250.05 x 1.850.1
0411: 110.5 x 4.6 x 4.05 x 4.7 x 0.250.05 x 1.850.1
ItemSpecificationTest Method
Terminal Tensile Strength2.5Kg for 10 seconds, no looseness or fallResistor body fixed, load applied axially
Dielectric Strength TestNo evidence of flashover, mechanical damage or insulation breakdown300V applied for 60 seconds with resistor body in V-groove
Solder Ability95% of terminal surface covered with new solderImmersion in 27010 tin bath for 5 seconds
Resistance to Soldering HeatWithin (1%+0.05)Immersion in 2605 tin bath for 5~10 seconds
Short Time OverloadWithin (2%+0.05)2.5 times rated power for 5 seconds
Load LifeWithin (5%+0.05)70, 1000 hours, rated voltage (90 min ON, 30 min OFF)
Resistance to SolventNo deterioration of protective coating and markingsImmersion in thinner for 3 minutes
IncombustibilityNo evidence of flameUL1412 standard
Fusing CharacteristicFusing time within 60 secondsConstant current 2.20A, Fusing current = (16 * P * R)
