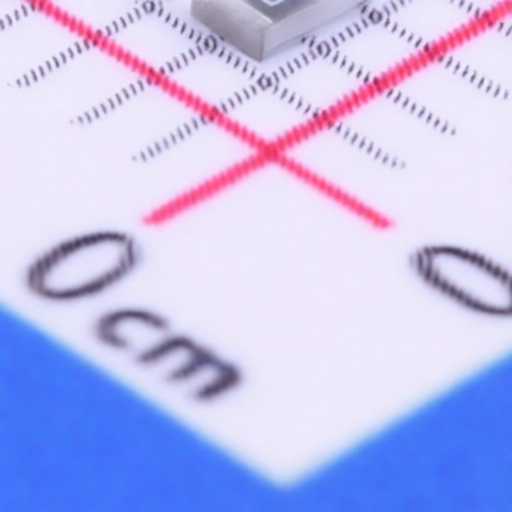

Thin Film Chip Resistor EVER OHMS TR0805B26K7P0525 providing stable resistance for measurement and industrial
Thin Film Chip Resistor EVER OHMS TR0805B26K7P0525 providing stable resistance for measurement and industrial
Specifications
Resistance :
26.7kΩ
Power(Watts) :
125mW
Voltage Rating :
150V
Temperature Coefficient :
±25ppm/℃
Operating Temperature :
-55℃~+155℃
Type :
Thin Film Resistor
Tolerance :
±0.1%
Description :
26.7kΩ 125mW 150V ±25ppm/℃ Thin Film Resistor ±0.1% 0805 Chip Resistor - Surface Mount RoHS
Mfr. Part # :
TR0805B26K7P0525
Model Number :
TR0805B26K7P0525
Package :
0805
Description

Thin Film Chip Resistor - TR Series

The TR Series Thin Film Chip Resistors are designed for high-reliability applications, offering tight tolerances and low TCR. They are suitable for use in medical equipment, equipment, converters, consumer products, communication devices, measurement instruments, and printers.

Product Attributes

  • Brand: Everohms
  • Origin: Taiwan
  • Product Type: Thin Film Chip Resistor

Technical Specifications

Type L (mm) W (mm) H (mm) l1 (mm) l2 (mm)
TR0402 1.00 0.10 0.50 0.05 0.30 0.05 0.15 0.10 0.20 0.10
TR0603 1.60 0.20 0.80 0.15 0.40 0.10 0.30 0.20 0.30 0.10
TR0805 2.00 0.20 1.25 0.15 0.50 0.15 0.30 0.15 0.40 0.15
TR1206 3.05 0.10 1.60 0.20 0.55 0.15 0.40 0.20 0.50 0.20
TR1210 3.05 0.10 2.50 0.20 0.55 0.15 0.50 0.20 0.50 0.20
TR2010 5.00 0.20 2.50 0.20 0.55 0.10 0.60 0.20 0.60 0.20
TR1218 3.10 0.10 4.60 0.10 0.55 0.05 0.40 0.20 0.50 0.20
TR2512 6.30 0.20 3.20 0.20 0.55 0.10 0.60 0.20 0.60 0.20
TYPE Rated Power at 70 Max Working Voltage Max Overload Voltage T.C.R. (PPM/) Resistance Range (0.01%) Resistance Range (0.05%) Resistance Range (0.1%) Resistance Range (0.25%) Resistance Range (0.5%) Resistance Range (1%)
TR0402 0.063W 25V 50V 10 40.2~42K2 40.2~42K2 40.2~42K2
25 10~100K 10~100K 10~100K
50 10~1M 10~1M 10~1M
TR0603 0.1W 75V 150V 10 24.9~100K 10~100K 10~100K 10~100K
25 4.7~332K 4.7~332K 4.7~332K
50 4.7~4M7 4.7~4M7 1~4M7
TR0805 0.125W 150V 300V 10 24.9~100K 10~220K 10~220K 10~220K
25 4.7~3M32 4.7~3M32 4.7~3M32
50 4.7~3M32 4.7~3M32 1~3M32
TR1206 0.25W 200V 400V 10 24.9~100K 10~220K 10~220K 10~220K
25 4.7~2M74 4.7~2M74 4.7~2M74
50 4.7~2M74 4.7~2M74 1~2M74
TR1210 0.25W 200V 400V 10 24.9~100K 10~499K 10~499K 10~499K
25 4.7~1M 4.7~1M 4.7~1M
50 4.7~1M 4.7~1M 1~1M
TR2010 0.5W 200V 400V 10 24.9~100K 10~499K 10~499K 10~499K
25 4.7~1M 4.7~1M 4.7~1M
50 4.7~1M 4.7~1M 1~1M
TR1218 0.5W 200V 400V 10 24.9~100K 10~499K 10~499K 10~499K
25 4.7~1M 4.7~1M 4.7~1M
50 4.7~1M 4.7~1M 1~1M
TR2512 0.75W 200V 400V 10 24.9~100K 10~499K 10~499K 10~499K
25 4.7~1M 4.7~1M 4.7~1M
50 4.7~1M 4.7~1M 1~1M
TYPE SIZE A (mm) B (mm) C (mm) D (mm) W (mm) M (mm)
0402 7 2.00.5 13.51.0 211.0 601.0 11.52.0 1782.0
13 2.00.5 13.51.0 211.0 1001.0 11.52.0 3302.0
0603 13 2.00.5 13.51.0 211.0 1001.0 11.52.0 3302.0
0805 1206 7 2.00.5 13.51.0 211.0 601.0 11.52.0 1782.0
10 2.00.5 13.51.0 211.0 1001.0 11.52.0 2542.0
13 2.00.5 13.51.0 211.0 1001.0 11.52.0 3302.0
1210 7 2.00.5 13.51.0 211.0 601.0 11.52.0 1782.0
2010/2512 1218 7 2.00.5 13.51.0 211.0 601.0 16.02.0 1782.0
Packaging Type SIZE A (mm) B (mm) W (mm) E (mm) F (mm) G (mm) H (mm) T (mm) D (mm) D1 (mm) T1 (mm) P (mm)
Paper Type 0402 0.700.10 1.200.10 8.00.20 1.750.10 3.50.05 4.00.10 2.00.05 0.450.10 +0.10 1.50 -0 2.00.1
0603 1.050.20 1.800.20 8.00.20 1.750.10 3.50.05 4.00.10 2.00.05 0.600.10 4.00.1
0805 1.550.20 2.300.20 8.00.20 1.750.10 3.50.05 4.00.10 2.00.05 0.750.10
1206 1.900.20 3.500.20 8.00.20 1.750.10 3.50.05 4.00.10 2.00.05 0.750.10
1210 2.850.20 3.500.20 8.00.20 1.750.10 3.50.05 4.00.10 2.00.05 0.750.10
Embossed Type 2010 2.800.20 5.600.20 120.10 1.750.10 5.50.05 4.00.10 2.00.05 0.230.10 +0.10 1.50 -0 1.500.10 0.850.15 4.00.1
2512 3.400.20 6.700.20 120.10 1.750.10 5.50.05 4.00.10 2.00.05 0.230.10 1.500.10 0.850.15
1218 3.300.20 4.600.20 120.10 1.750.10 5.50.05 4.00.10 2.00.05 0.230.10 1.500.10 0.850.15

Contact Information:
TEL: 886-7-8116611
FAX: 886-7-8115533
E-mail: service@everohms.com
Website: http://www.everohms.com


2304140030_EVER-OHMS-TR0805B26K7P0525_C153307.pdf
