Specifications
Description :
52 Position Connector mPCI-E 0.8mm Surface Mount, Right Angle
MOQ :
1
Stock :
1
Height Above Board :
5.2mm
Number of Data Pins :
36P
Delivery Time :
1 working day
Connector Type :
-;mPCI-E
Packaging Details :
SMD,P=0.8mm,Surface Mount,Right Angle
Number of Pins :
52P
Model Number :
PCIE-52P52H
Operating Temperature :
-40℃~+85℃
Supplementary Features :
Pillar
Mounting Type :
Surface Mount, Right Angle
Brand Name :
PCIE-52P52H
Description

Mini-PCI Express Connector

Product Type: MINI-PCI EXPRESS / MINI-PCI E

Item No.: PCIE-52P

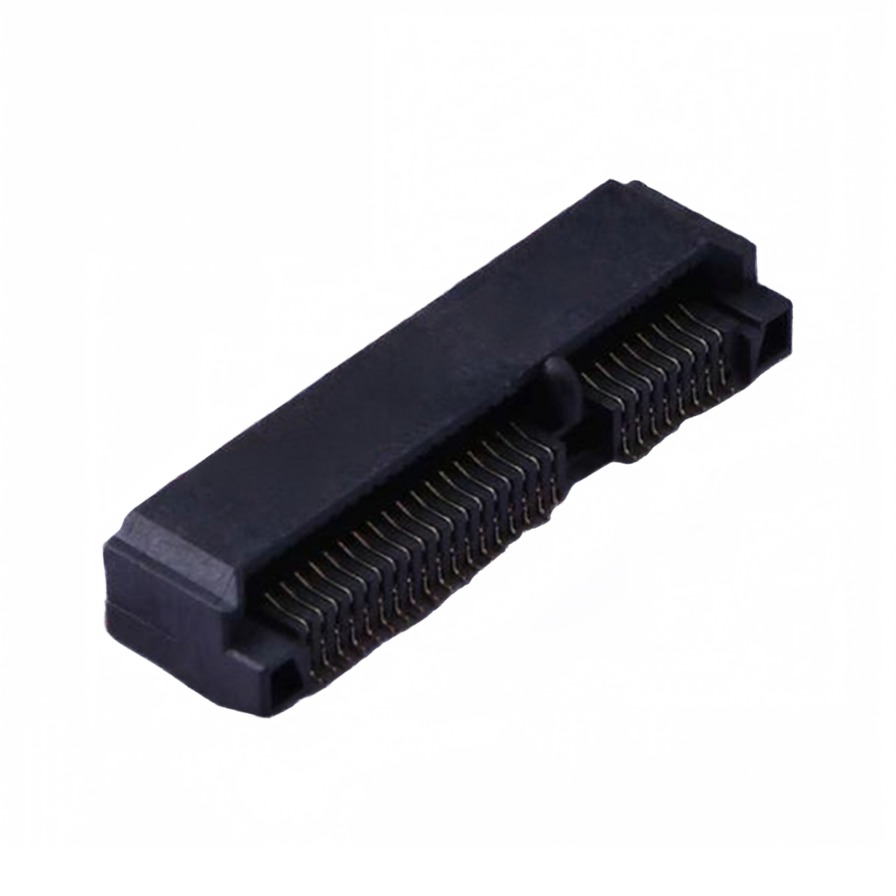

Description: 0.80MM PITCH connector with 52 circuits and fitting nails. Dimensions: L29.9mm X W8.2mm.

Certifications: REACH, RoHS Compliant

Product Attributes

Brand: Albetter product
Material: HOUSING: UL 94V-0, COLOR:BLACK; CONTACTS: 0.25 m Ni PLATED OVERALL, 0.25 m Au PLATED CONTACT AREA, GOLD FLASH ON SOLDER AREA; HOLDDOWN: BRASS ALLOY, 0.25 m Ni PLATED OVERALL
Operating Temperature: -40C ~+85C

Technical Specifications

Contact RatingElectrical PropertiesDurable PerformanceDimensions (Unit: mm)ModelDIM A (mm)DIM B (mm)
0.5A Per PIN / 50V DCInitial Contact Resistance: 50m max.
Insulation Resistance: 500M min.
Withstand Voltage: 300V AC for 1 minute		No Load: 200 Cycle
Rated Load: 100 Cycle		CPK 29.9
25.90 XX 0.15
13.60 XX 0.10
5.60 XXX 0.10
9.08 (0.8x7)
13.80
4.00
5.60 (0.8x7)
0.15
20.85 0.05		PCIE-52P40H4.0mm2.05
Guide peg
5.60 (0.8x7)
CARD KEY
(0.8x17)
MODULE
0.8x7		PCIE-52P52H5.2mm3.25
PCIE-52P56H5.6mm3.65
PCIE-52P70H7.0mm5.05
PCIE-52P80H8.0mm6.05
