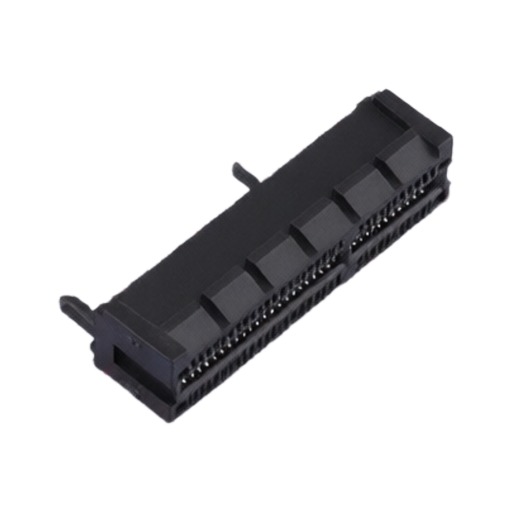

Samtec PCIE-064-02-F-D-TH
Samtec PCIE-064-02-F-D-TH
Specifications
Pitch :
1mm
Packaging Details :
Through Hole,P=1mm
Brand Name :
PCIE-064-02-F-D-TH
Contact Material :
Phosphor Bronze
Mounting Type :
Through Hole
Delivery Time :
1 working day
Description :
64 Position 1mm Pitch Gold Through Hole
Model Number :
PCIE-064-02-F-D-TH
Stock :
371
Operating Temperature :
-55℃~+125℃
MOQ :
1
Number of Pins :
64P
Description

Product Overview

PCI Express Edge Card Sockets designed for 1.00 mm (.0394") pitch applications. These connectors support 1, 4, 8, and 16 PCI Express links, offering solutions for PCIE 3.0, 4.0, and 5.0 standards. Available in vertical, right-angle, and edge mount configurations, these sockets are built for space-saving, slim body, and differential pair signaling requirements. They mate with .062" (1.60 mm) thick cards.

Pitch
1.00 mm (.0394")
Mating Card Thickness
1.60 mm (.062")
Supported Links
1, 4, 8, 16 lanes
Mounting Options
Vertical, Right-Angle, Edge Mount
SeriesTotal Pins (Lanes)Insulator MaterialContact MaterialOperating TempCurrent RatingVoltage RatingPCIE Compatibility
PCIE36, 64, 98, 164-TH: Black Nylon; -EMS2: LCPPhosphor Bronze-55 C to +125 C2.4 A215 VAC3.0
PCIE-LP36, 64, 98, 164LCPPhosphor Bronze-55 C to +125 C2.1 A215 VAC4.0
PCIE-G436, 64, 98, 164LCPCopper Alloy-55 C to +125 C2.2 A300 VAC4.0
PCIE-G536, 64, 98, 164LCPCopper Alloy-55 C to +125 C3.2 A235 VAC5.0
