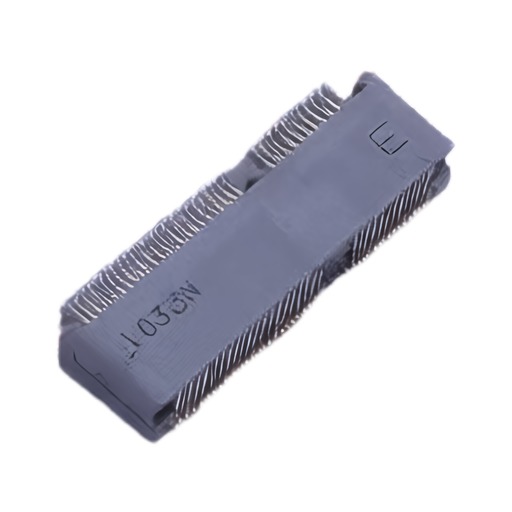

TE Connectivity 2199230-4
TE Connectivity 2199230-4
Specifications
Contact Material :
Copper alloy
Number of Pins :
67P
MOQ :
1
Packaging Details :
SMD,P=0.5mm,Surface Mount,Right Angle
Delivery Time :
1 working day
Description :
67 Position 0.5mm Pitch Gold Surface Mount, Right Angle
Stock :
1
Brand Name :
2199230-4
Model Number :
2199230-4
Mounting Type :
Surface Mount, Right Angle
Pitch :
0.5mm
Operating Temperature :
-40℃~+80℃
Description

Product Overview

This product is a connector designed for mini card mounting with a 0.50mm pitch and 67 positions. It is suitable for double-sided mobile applications. The connector is RoHS compliant.

Material
Housing: High Temperature Thermoplastic UL94-V0, Color: Black. Contact: Copper Alloy. Solder Plug: Stainless Steel.
Contact Plating
Undercoat Nickel 50" min. Mating Area: Gold Plating. Solderable Area: Tin 100" min.
Certifications
RoHS Compliant
Insertion Angle
2.48 Ref.
Coplanarity
0.10mm Max. (Before Soldering)
Package Type
Embossed Plastic Reel, 1000pcs per reel
Part NumberDescriptionContactsMaterialPlatingPitch (mm)PositionsHeight (mm)
2159230-7MINI CARD MOUNTING TYPE75HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.15 0.02674.2
2159230-6MINI CARD MOUNTING TYPE75HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.15 0.02674.2
2159230-1MINI CARD MOUNTING TYPE75HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.15 0.02674.2
2159730-3MINI CARD MOUNTING TYPE75HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.15 0.02674.2
2159550-7MINI CARD MOUNTING TYPE75HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.15 0.02674.2
108-115042MINI CARD MOUNTING TYPE2625HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.50 0.02674.2
108-115040MINI CARD MOUNTING TYPE135HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.50 0.02674.2
108-11504PMINI CARD MOUNTING TYPE900 MINHOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.50 0.02674.2
108-115043MINI CARD MOUNTING TYPE601D A3HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.50 0.02674.2
108-115047MINI CARD MOUNTING TYPE2HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.50 0.02674.2
BE-115043MINI CARD MOUNTING TYPE52HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.50 0.02674.2
GA-115048MINI CARD MOUNTING TYPE52HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0, COLOR: BLACKCONTACT: COPPER ALLOY0.50 0.02674.2
DIM. A (mm)DIM. B (mm)DIM. C (mm)DIM. D (mm)DIM. G (mm)DIM. E (mm)DIM. F (mm)DIM. H (mm)
21.92 0.120.15 0.051.6 0.051.45 0.052.94 REF.0.501.45 0.054.2
21.92 0.120.15 0.051.6 0.051.45 0.052.94 REF.0.501.45 0.054.2
21.92 0.120.15 0.051.6 0.051.45 0.052.94 REF.0.501.45 0.054.2
21.92 0.120.15 0.051.6 0.051.45 0.052.94 REF.0.501.45 0.054.2
21.92 0.120.15 0.051.6 0.051.45 0.052.94 REF.0.501.45 0.054.2
16.004.0020.04.200.5 0.055.01.654.2
16.004.0020.04.200.5 0.055.01.654.2
16.004.0020.04.200.5 0.055.01.654.2
16.004.0020.04.200.5 0.055.01.654.2
16.004.0020.04.200.5 0.055.01.654.2
16.004.0020.04.200.5 0.055.01.654.2
16.004.0020.04.200.5 0.055.01.654.2
