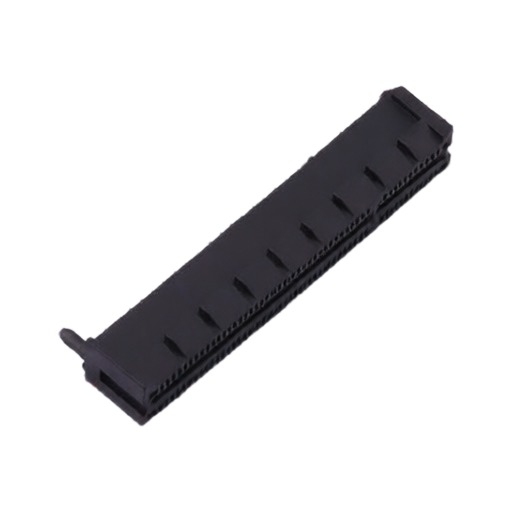

Samtec PCIE-098-02-F-D-TH
Samtec PCIE-098-02-F-D-TH
Specifications
Packaging Details :
Through Hole,P=1mm
Brand Name :
PCIE-098-02-F-D-TH
Model Number :
PCIE-098-02-F-D-TH
Number of Pins :
98P
Operating Temperature :
-55℃~+125℃
Stock :
154
MOQ :
1
Description :
98 Position 1mm Pitch Gold Through Hole
Delivery Time :
1 working day
Description

PCI Express Edge Card Sockets

High-performance edge card sockets designed for PCI Express applications. These sockets offer a 1.00 mm (.0394") pitch and support various PCI Express link configurations (x1, x4, x8, x16). They are compatible with standard .062" (1.60 mm) thick cards and are available in vertical, right-angle, and edge mount configurations. Features include alignment pins and weld tab options, with gold flash or matte tin plating on contacts and tin on tails for reliable connectivity. Available in Through-hole (TH) and Edge Mount (EMS) styles.

Brand Samtec
Pitch 1.00 mm (.0394")
Card Thickness Compatibility .062" (1.60 mm)
Mounting Styles Vertical, Right-Angle, Edge Mount
Contact Plating Options Gold Flash, Tin
Tail Plating Options Tin
Packaging Options Tray, Tape & Reel
Part Number Suffix Number of Lanes Number of Positions Contact Plating Tail Plating Mounting Style Packaging Description
-036 x1 36 Gold Flash Tin Edge Mount
-064 x4 64 Gold Flash Tin Edge Mount
-098 x8 98 Gold Flash Tin Edge Mount
-164 x16 164 Gold Flash Tin Edge Mount
-01 1 lane Gold Flash Tin Right-Angle Pick & Place Pad For 16 lanes
-04 4 lanes Gold Flash Tin Right-Angle Pick & Place Pad For 16 lanes
-08 8 lanes Gold Flash Tin Right-Angle Pick & Place Pad For 16 lanes
-16 16 lanes Gold Flash Tin Right-Angle Pick & Place Pad For 16 lanes
-01 1 lane 30u" Gold Matte Tin Right-Angle Tape & Reel (X"R required with 1, 4, 8 lanes)
-04 4 lanes 30u" Gold Matte Tin Right-Angle Tape & Reel (X"R required with 1, 4, 8 lanes)
-08 8 lanes 30u" Gold Matte Tin Right-Angle Tape & Reel (X"R required with 1, 4, 8 lanes)
-16 16 lanes 30u" Gold Matte Tin Right-Angle Tape & Reel (X"R required with 1, 4, 8 lanes)
Series Total Pins (Lanes) Insulator Material Contact Material Operating Temp Range Current Rating Voltage Rating PCIe Compatibility
PCIE 36 (x1), 64 (x4), 98 (x8), 164 (x16) LCP Phosphor Bronze -55C to +125C 2.4 A (2 pins) 215 VAC 3.0
PCIE-LP 36 (x1), 64 (x4), 98 (x8), 164 (x16) LCP Phosphor Bronze -55C to +125C 2.1 A (2 pins) 215 VAC 4.0
PCIE-G4 64 (x4), 98 (x8), 164 (x16) LCP Copper Alloy -55C to +125C 2.2 A (2 pins) 300 VAC 4.0
PCIE-G5 36 (x1), 64 (x4), 98 (x8), 164 (x16) LCP Copper Alloy -55C to +125C 3.2 A (2 pins) 235 VAC 5.0
