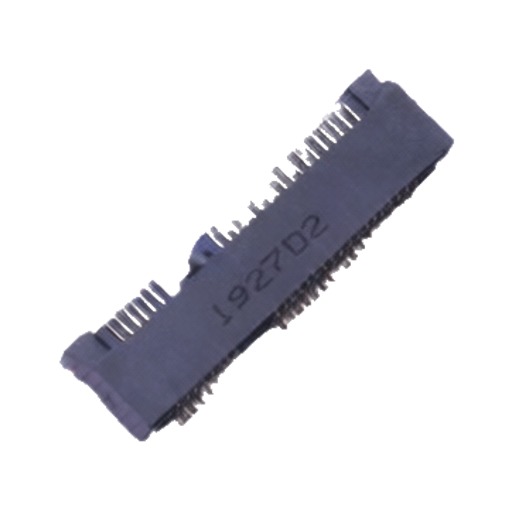

TE Connectivity 1775862-2
TE Connectivity 1775862-2
Specifications
Model Number :
1775862-2
Packaging Details :
SMD,P=0.8mm,Surface Mount,Right Angle
Delivery Time :
1 working day
Description :
Female Surface Mount, Right Angle SMD,P=0.8mm,Surface Mount,Right Angle Edgeboard Connectors RoHS
Connector Type :
Female
Brand Name :
1775862-2
Mounting Type :
Surface Mount, Right Angle
Height Above Board :
5.2mm
Interface Form :
mSATA
Stock :
7311
MOQ :
1
Supplementary Features :
Pillar
Description

Product Overview

This document details the signal assignments for PCI-E Mini Card Connectors and mSATA Connectors. These connectors are standard interfaces used in various computing devices for expansion cards and storage solutions.

Connector Type 1

PCI-E Mini Card Connector

Connector Type 2

mSATA Connector

Pin Name Pin # (PCI-E Mini Card) Pin # (mSATA) Description
PERST# 1 - PCIe Reset
+3.3Vaux 2, 3, 5, 7, 9, 11, 13, 15, 17, 19, 21, 23, 25, 27, 29, 31, 33, 35, 37, 39, 41, 43, 45, 47, 49, 51 - +3.3V Auxiliary
+1.5V 4, 14, 32, 34 4, 12, 32, 34 +1.5V Power
SMB_CLK 6 - System Management Bus Clock
SMB_DATA 8 - System Management Bus Data
USB_D- 10 - USB Differential Data -
USB_D+ 12 - USB Differential Data +
LED_WWAN# 16 - WWAN LED Indicator
LED_WLAN# 18 - WLAN LED Indicator
LED_WPAN# 20 - WPAN LED Indicator
3.3Vaux 22, 24, 26, 28, 30, 36, 38, 40, 42, 44, 46, 48, 50, 52 - 3.3V Auxiliary
1.5V 32, 34 - 1.5V Power
WAKE# 42 - Wake Signal
CLKREQ# 44 - Clock Request
REFCLK- 46 - Reference Clock -
REFCLK+ 48 - Reference Clock +
PERn0 50 - PCIe Differential Pair 0 Negative
PERp0 52 - PCIe Differential Pair 0 Positive
PETn0 19 - PCIe Differential Pair 0 Transmit Negative
PETp0 21 - PCIe Differential Pair 0 Transmit Positive
GND 1, 3, 5, 7, 9, 11, 13, 15, 17, 19, 21, 23, 25, 27, 29, 31, 33, 35, 37, 39, 41, 43, 45, 47, 49, 51 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52 Ground
W_DISABLE# 33 - Wireless Disable
UIM_VPP 35 - UIM Voltage Programming
COEX2 37 - Coexistence 2
Reserved* (UIM_C4) 39 - Reserved for UIM Card
UIM_C8 - 3 UIM Card 8
UIM_RESET - 5 UIM Reset
UIM_CLK - 7 UIM Clock
UIM_DATA - 9 UIM Data
UIM_PWR - 11 UIM Power
Reserved 41, 43, 45, 47, 49, 51 1, 5, 7, 9, 13, 15, 17, 19, 21, 23, 25, 27, 29, 31, 33, 35, 37, 39, 41, 43, 45, 47, 49 Reserved
+3.3V - 3, 5, 7, 9, 11, 13, 15, 17, 19, 21, 23, 25, 27, 29, 31, 33, 35, 37, 39, 41, 43, 45, 47, 49 +3.3V Power
+B - 23 +B Signal
-B - 25 -B Signal
-A - 27 -A Signal
+A - 29 +A Signal
DA/DSS - 43 Data/DSS
Presence Detection - 45 Presence Detection
Vendor - 47, 49 Vendor Specific
No Connect - 51 No Connect
