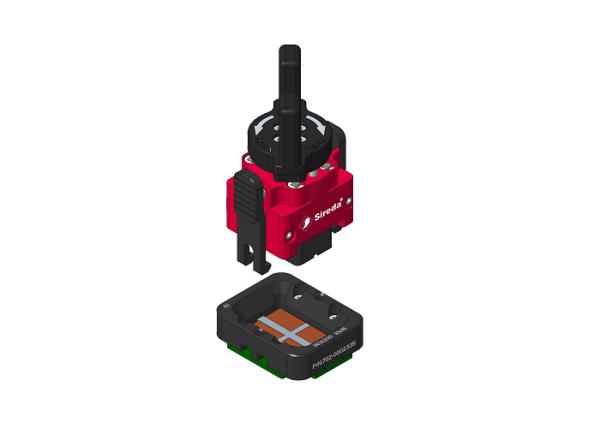

Ultra Compact LPDDR Test Socket For BGA200 Direct Solder Mount Zero Footprint Design
Ultra Compact LPDDR Test Socket For BGA200 Direct Solder Mount Zero Footprint Design
Specifications
Brand Name :
Sireda
Model Number :
Open Top
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Get Quote
Pitch :
≥0.3mm
Pin Count :
2-2000+
Compatible Packages: :
BGA, QFN, LGA, SOP, WLCSP
Socket Type :
Open Top
Conductor Type :
Probe Pins, Pogo Pin, PCR
Description
Revolutionary Zero-Footprint Test Socket for LPDDR BGA200 Packages
Our ultra-low-profile test socket eliminates traditional testing hassles with its innovative direct-solder design.
Key Benefits:
  • No PCB Modifications Needed - Interposer matches exact chip footprint
  • Two Testing Options:
    • F Series: Simple direct-contact design
    • F1 Series: With test points for signal/power analysis
  • High-Speed Ready: Optimized for LPDDR4/5 performance validation
  • Durable Construction: 10,000+ insertion cycle lifespan
Perfect For:
  • Memory manufacturers (production testing)
  • Validation labs (quick device verification)
  • R&D teams (prototype debugging)
Ultra Compact LPDDR Test Socket For BGA200 Direct Solder Mount Zero Footprint Design

The image is for reference only. All items listed below include zero-footprint sockets. Please contact us for details

Ufs eMCP eMMC DDR LPDDR NAND
BGA254 BGA221 BGA153 BGA78 BGA200 BGA132
BGA153 BGA162 BGA96 BGA315 BGA136
BGA169 BGA152
BGA100 BGA154
BGA254
F VS F1 Solution
Ultra Compact LPDDR Test Socket For BGA200 Direct Solder Mount Zero Footprint Design
How to: install the adapter ↔ test board.
Ultra Compact LPDDR Test Socket For BGA200 Direct Solder Mount Zero Footprint Design
Step 1.
Solder interposer -> test board
Step 2.
Attach test socket
Step 3.
Insert chip & lock cover
