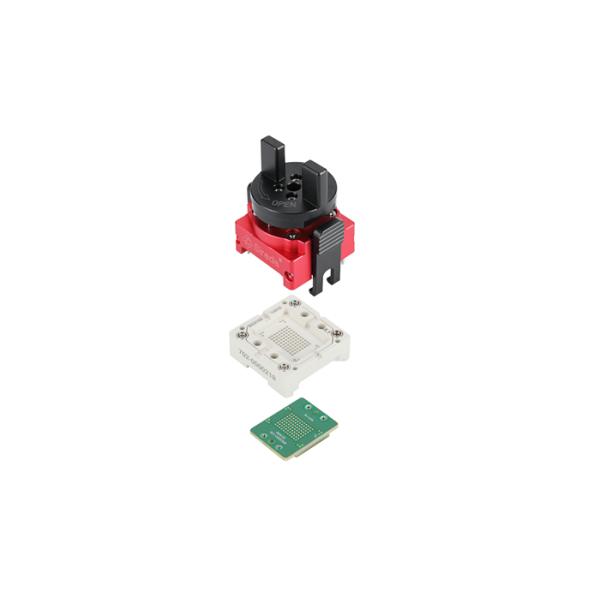

EMMC Test Socket BGA100 BGA153 Socket Zero Footprint Design No PCB Modification Needed
EMMC Test Socket BGA100 BGA153 Socket Zero Footprint Design No PCB Modification Needed
Specifications
Brand Name :
Sireda
Model Number :
Open Top
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Get Quote
Pitch :
≥0.3mm
Pin Count :
2-2000+
Compatible Packages: :
BGA, QFN, LGA, SOP, WLCSP
Socket Type :
Open Top
Conductor Type :
Probe Pins, Pogo Pin, PCR
Description
High-Performance Zero-Footprint Sockets for eMMC (BGA100 & BGA153) Testing
Our ultra-compact eMMC test sockets provide a fast, reliable testing solution with a direct-solder design --requiring no PCB modifications for hassle-free validation of embedded memory chips.
Key Features:
  • Perfect Chip-Sized Interposer - Matches BGA100 & BGA153 footprints precisely
  • No Need for PCB Cutouts - Solder directly onto test boards for instant use
  • Two Versions for Different Testing Needs:
    • F Series (Standard) - Simplified contact-only testing
    • F1 Series (Enhanced) - Test points for signal and power analysis (great for debugging)
  • High-Speed Compatibility - Supports fast eMMC 5.1 & UFS interface validation
  • Durable & Reliable - Over 10,000 mating cycles
Ideal For:
  • Manufacturers conducting production testing on eMMC chips
  • R & D Teams validating board-level eMMC performance
  • Repair & Debugging labs analyzing signal integrity
EMMC Test Socket BGA100 BGA153 Socket Zero Footprint Design No PCB Modification Needed
EMMC Test Socket BGA100 BGA153 Socket Zero Footprint Design No PCB Modification Needed
eMMC BGA153 eMMC BGA100

The image is for reference only. All items listed below include zero-footprint sockets. Please contact us for details

Ufs eMCP eMMC DDR LPDDR NAND
BGA254 BGA221 BGA153 BGA78 BGA200 BGA132
BGA153 BGA162 BGA96 BGA315 BGA136
BGA169 BGA152
BGA100 BGA154
BGA254

F vs F1 Solution Comparison
EMMC Test Socket BGA100 BGA153 Socket Zero Footprint Design No PCB Modification Needed
Installation Steps:
  1. Solder interposer -> test board
  2. Attach test socket
  3. Insert chip & lock cover
EMMC Test Socket BGA100 BGA153 Socket Zero Footprint Design No PCB Modification Needed
