Precision Sealed-off CO₂ Laser High-Stability Surgical System PC015-E
Precision Sealed-off CO₂ Laser High-Stability Surgical System PC015-E
Precision Sealed-off CO₂ Laser High-Stability Surgical System PC015-E
Precision Sealed-off CO₂ Laser High-Stability Surgical System PC015-E
Precision Sealed-off CO₂ Laser High-Stability Surgical System PC015-E
Precision Sealed-off CO₂ Laser High-Stability Surgical System PC015-E
Specifications
Brand Name :
Precise
Model Number :
PC015-E
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T
Delivery Time :
5~10 Working days

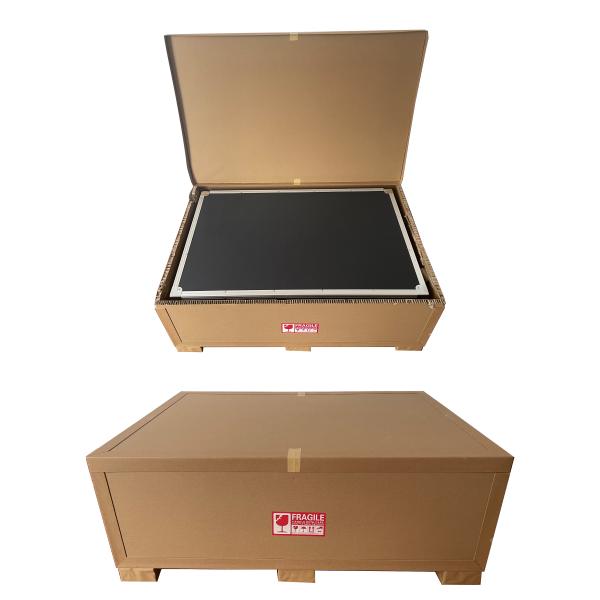

Packaging Details :
Wooden Case
Certification :
CE
Price :
$3500~5500 FOB Shanghai
Supply Ability :
1 Unit/ 5 Working Days
Spot Size :
Adjustable, 0.1 mm to 2 mm
Control Interface :
Touchscreen Panel
Wavelength :
10.6 micrometers
Power Supply :
110VAC 60Hz, 220VAC 50Hz
Power Output :
Up to 15 Watts
Laser Type :
Carbon Dioxide (CO2) Laser
Weight :
Approximately 35 kg
Operation Mode :
Continuous Wave and Pulsed
Safety Features :
Emergency Stop Button, Key Switch, Safety Goggles Included
Applications :
Dermatology, ENT, Gynecology, Dentistry, General Surgery
Cooling System :
Water Closed-Cycle Cooling
Beam Delivery :
Articulated Arm
Description

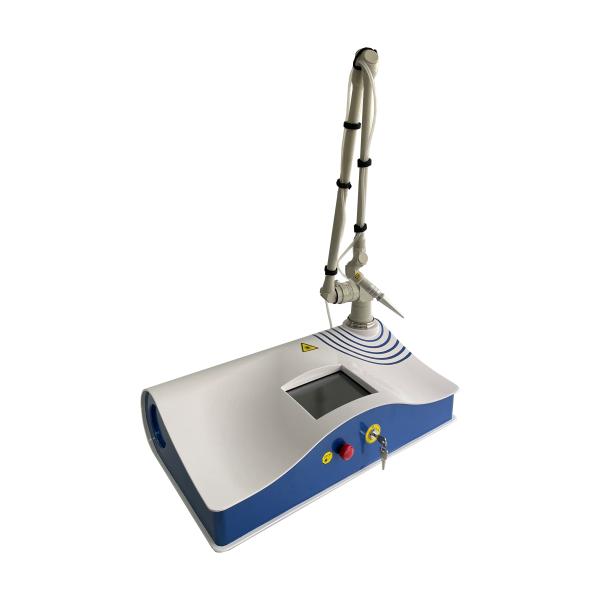

PC015-E Sealed-off CO2 Laser Surgical System
CO₂ Seal-off Laser Surgical System: The Gold Standard in Precision Surgery & Aesthetics

The Model PC015-E is a professional-grade 15W CO₂ laser platform engineered for medical practitioners who demand uncompromising precision. By utilizing a high-stability sealed-off glass tube source and a superior TEM00 emission beam, the system ensures uniform energy distribution for ultra-fine tissue interaction. Whether performing delicate micro-surgeries, the PC015-E offers the perfect balance of power and safety. Its multi-mode versatility—ranging from thermal-minimizing Single Pulse to coagulation-focused Continuous Wave—empowers clinicians to deliver superior patient outcomes with minimized recovery periods.

Technical Specifications
Specification Details
Model PC015-E
Laser Type Sealed-off CO₂ Laser (10,600nm)
Laser Source High-durability Glass Tube
Output Power 15W
Emission Mode TEM00 (glass tube)
Operation Modes Single, Repeat, and Continuous Wave (CW)
Beam Delivery 7-Joint, Spring-Balanced Articulated Arm (110cm)
Aiming Beam 3mW Diode Laser
Cooling System Integrated Water Closed-Cycle Cooling
Power Supply 120 VAC / 60Hz or 230 VAC / 50Hz (Dual Voltage)
Physical Specs 28 Kg
Product Advantages & Clinical Applications
  • Unrivaled Cutting Precision: The TEM00 mode provides a concentrated, high-density energy spot (≤ 0.2mm), allowing for clean incisions with immediate coagulation and minimal peripheral tissue trauma.
  • Advanced Thermal Management: The Super Pulse mode utilizes ultra-short pulse widths to ablate tissue faster than the skin's thermal relaxation time, significantly reducing the risk of post-operative erythema or scarring.
  • Superior Ergonomics for Surgeons: The 7-joint, spring-balanced articulated arm offers a 110cm working radius, providing weightless maneuverability and reducing physician fatigue during long procedures.
  • Maintenance-Free Design: The sealed-off CO₂ technology eliminates the need for frequent gas refills and internal cleaning, ensuring a long service life and a high return on investment (ROI).
  • Global Versatility: With its Dual Voltage capability and compact 28kg footprint, the PC015-E is a "Global Ready" solution, adaptable to various international clinical environments.
  • Diverse Applications:
    • Dermatology: Skin resurfacing, scar revision, and lesion removal
    • General Surgery: Precise cutting, vaporization, and hemostasis
    • Aesthetics: Accurate tissue remodeling and deep wrinkle reduction
Product Q&A
Q1: How does the sealed-off CO₂ design benefit my clinic's operations?
A: Unlike traditional lasers that may require gas replenishment, our sealed-off glass tube design is a closed system. This ensures a consistent power output of 15W over a long service life with virtually no maintenance, lowering your total cost of ownership.
Q2: Can the PC015-E handle both deep ablation and superficial resurfacing?
A: Yes. By switching between Super Pulse (for minimal thermal damage/ablation) and Continuous Wave (for controlled vaporization and coagulation), you can tailor the treatment depth and thermal effect based on the specific clinical requirement.
Q3: Is the 7-joint articulated arm difficult to move during surgery?
A: Quite the opposite. The arm is spring-balanced, meaning it moves with minimal resistance and stays in place once positioned. The 110cm working radius ensures you can reach the patient comfortably from various angles.
Q4: What is the standard lead time and warranty for the PC015-E?

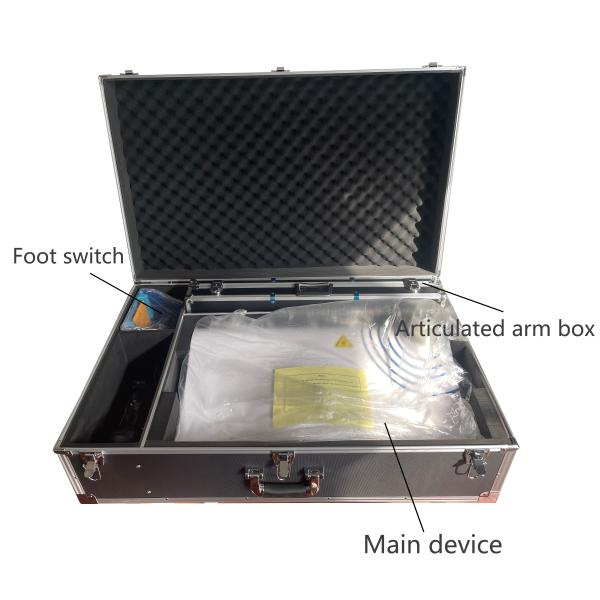

A: We provide a 1-year warranty to guarantee your peace of mind. The standard lead time is 5 to 10 working days, and the unit is shipped in a secure wooden case to ensure it arrives in perfect calibration.
