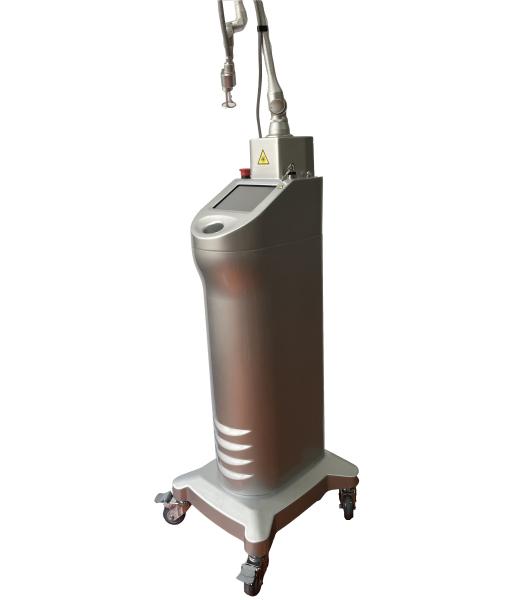

40W High-Power Sealed-off CO2 Laser Surgical System PC040-D
40W High-Power Sealed-off CO2 Laser Surgical System PC040-D
40W High-Power Sealed-off CO2 Laser Surgical System PC040-D
40W High-Power Sealed-off CO2 Laser Surgical System PC040-D
Specifications
Brand Name :
Precise
Model Number :
PC040-D
Certification :
CE
Place of Origin :
China
MOQ :
Negotiable
Price :
$3800~5800 FOB Shanghai
Payment Terms :
T/T
Delivery Time :
5~10 Working days
Packaging Details :
Wooden Case
Supply Ability :
1 Unit/ 5 Working Days
Spot Size :
Adjustable, 0.1 mm to 2 mm
Control Interface :
Touchscreen Panel
Wavelength :
10.6 micrometers
Power Supply :
110VAC 60Hz, 220VAC 50Hz
Power Output :
Up to 40 Watts
Laser Type :
Carbon Dioxide (CO2) Laser
Weight :
Approximately 35 kg
Operation Mode :
Continuous Wave and Pulsed
Safety Features :
Emergency Stop Button, Key Switch, Safety Goggles Included
Applications :
Dermatology, ENT, Gynecology, Dentistry, General Surgery
Cooling System :
Water Closed-Cycle Cooling
Beam Delivery :
Articulated Arm
Description
PC040-D Sealed-off CO2 Laser Surgical System 0.1mm To 0.2mm Spot Size

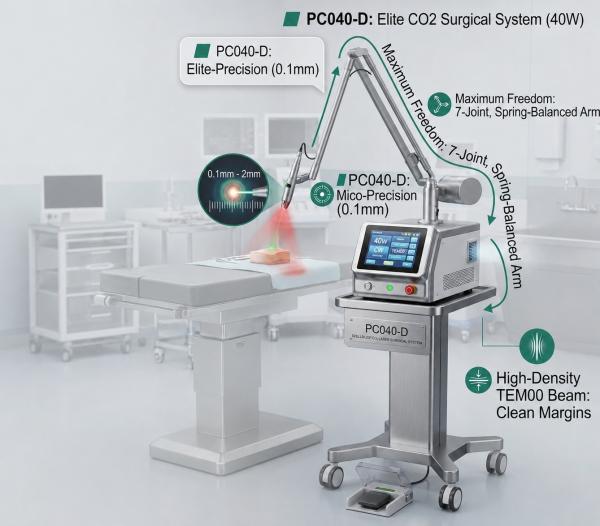

PC040-D Professional CO2 Surgical Laser System
Product Overview
The PC040-D is a high-performance CO2 medical laser system engineered for precision surgical applications. Featuring a high-stability Sealed-off Glass Tube laser source and a 10,600 nm wavelength, this system is optimized for precise tissue cutting, vaporization, and coagulation. Its compact design, combined with a 7-joint articulated arm, makes it an ideal choice for modern surgical environments including Dermatology, ENT, and Gynecology.
Technical Specifications
Parameters PC040-D System Specifications
Laser Type Sealed-off CO2 Laser
Laser Source High-Stability Glass Tube
Wavelength 10,600 nm
Laser Power 40 W
Laser Mode Single Pulse, Repeat Pulse, Continuous Wave
Emission Beam TEM00 (High-quality Gaussian beam)
Pulse Width 0.1ms - 10ms
Spot Size < 0.2 mm (At Focal Point)
Beam Delivery 7-Joint, Spring-Balanced Articulated Arm (135 cm Radius)
Aiming Beam 3mW Diode Laser
Control System Microprocessor Controlled with Footswitch Activation
Display Interface Advanced Microprocessor Control with High-Contrast LCD
Cooling System Integrated Water Closed-Cycle Cooling
Electrical Requirements 120 VAC / 60 Hz or 220 VAC / 50 Hz
Net Weight 50 kg
Core Professional Advantages
Superior Beam Quality (TEM00)
The PC040-D utilizes a TEM00 mode emission beam, ensuring a perfectly circular and high-density energy distribution. This results in cleaner surgical margins, minimized thermal damage to surrounding tissues, and accelerated patient healing.
Precision Control & Versatility
Equipped with three distinct operating modes—Single Pulse, Repeat Pulse, and CW—the system allows clinicians to fine-tune energy delivery based on specific surgical needs. The Super Pulse mode (0.1 ms - 10 ms width) provides high-peak power for rapid vaporization with minimal carbonization.
Ergonomic & Durable Engineering
  • 7-Joint Articulated Arm: The spring-balanced arm offers a 135 cm working radius, providing 360-degree flexibility and reducing operator fatigue during prolonged procedures.
  • Closed-Cycle Cooling: The built-in water cooling system ensures stable power output and long-term reliability of the laser tube, even under high-workload clinical settings.
  • Medical-Grade Reliability: Encased in a robust housing and shipped in export-grade wooden cases to ensure structural integrity during international transit.
Logistics & Warranty
  • Warranty: 1-Year Comprehensive Manufacturer Warranty
  • Packaging: Export-Standard Wooden Case
  • Lead Time: 5-10 Working Days
  • Compliance: Manufactured to meet stringent international quality and safety standards for medical laser equipment
