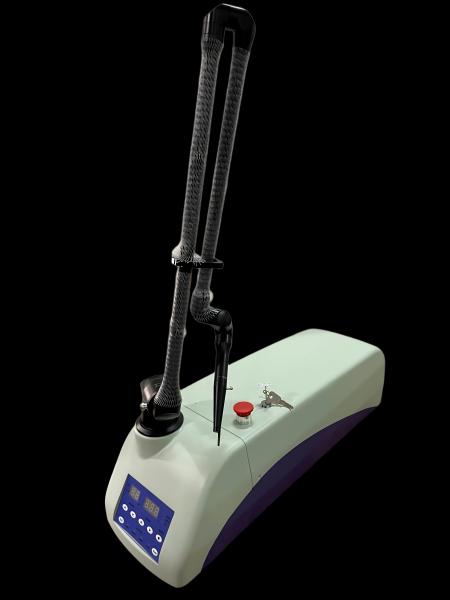

Sealed-off CO2 Laser Surgical System for Dermatology & Surgery PC015-A 15W
Sealed-off CO2 Laser Surgical System for Dermatology & Surgery PC015-A 15W
Specifications
Brand Name :
Precise
Model Number :
PC015-A
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T
Delivery Time :
5~10 Working days
Packaging Details :
Wooden Case
Certification :
CE
Price :
$3000~5000 FOB Shanghai
Spot Size :
Adjustable, 0.1 mm to 2 mm
Control Interface :
Touchscreen Panel
Wavelength :
10.6 micrometers
Power Supply :
AC 110-240V, 50/60Hz
Power Output :
Up to 30 Watts
Laser Type :
Carbon Dioxide (CO2) Laser
Weight :
Approximately 35 kg
Operation Mode :
Continuous Wave and Pulsed
Safety Features :
Emergency Stop Button, Key Switch, Safety Goggles Included
Dimensions :
450 mm x 400 mm x 1200 mm
Applications :
Dermatology, ENT, Gynecology, Dentistry, General Surgery
Cooling System :
Integrated Air Cooling
Beam Delivery :
Articulated Arm or Flexible Fiber
Description
Sealed-off CO2 Laser Surgical System 10.6 Micrometers 0.1mm-0.8mm Spot Size
This PC015-A CO₂ Seal-off Laser Surgical System is a high-precision, versatile laser platform engineered for the modern medical and aesthetic clinic. Powered by a stable 15W sealed-off glass tube source, it delivers consistent energy for both delicate surgical incisions and precise dermatological surgery. With its multi-mode output and ergonomic 7-joint delivery system, the PC015-A offers a reliable, low-maintenance solution for practitioners seeking clinical excellence and patient safety.
Technical Specifications
Laser Type / Source CO₂ Laser, Sealed-off Glass Tube (TEM00)
Wavelength 10,600 nm
Power to Tissue 15W
Operation Modes Super Pulse, Repeat Pulse, Continuous Wave
Beam Delivery 7-Joint, Spring-Balanced Articulated Arm (110cm Radius)
Spot Size ≤ 0.8 mm (at focus)
Aiming Beam 650 nm Diode Laser (3mW)
Cooling / Power Water Closed-Cycle / 230VAC/50Hz or 120VAC/60Hz
Net Weight 28 Kg
Key Advantages & Applications
  • Versatile Pulse Technology: Supports Super Pulse for minimal thermal damage and Repeat Pulse for controlled coagulation, allowing physicians to switch seamlessly between sharp cutting and gentle vaporization.
  • Precision Optical Delivery: Equipped with a 7-joint, spring-balanced articulated arm, providing a fluid 110cm working radius. This ensures the TEM00 laser mode remains stable and accurate throughout the procedure.
  • Precision Surgical Ablation: Ideal for lesion removal and precise tissue cutting.
  • Low Maintenance Design: The sealed-off glass tube design ensures a long service life with stable performance, reducing the need for frequent gas refills or technical calibrations.
  • Clinical Applications:
    • Dermatology: Removal of skin growths (warts, moles, skin tags)
    • General Surgery: Precise soft tissue cutting, ablation, and bloodless coagulation.
    • Aesthetics: Benign lesion vaporization and localized skin growth removal.
Product Q&A
How does the "Super Pulse" mode improve surgical outcomes?
Super Pulse mode delivers high-peak energy in very short bursts. This allows the tissue to cool between pulses, significantly reducing collateral thermal damage (charring) compared to standard continuous lasers, leading to faster healing.
Is the system easy to transport within a facility?
Yes. With a net weight of only 28 Kgs and a compact footprint, the PC015-A is highly mobile. Its articulated arm can be folded down to a height of 118cm for safe storage and transport.
What kind of maintenance does the water cooling system require?
The system uses a professional water closed-cycle cooling setup. Because it is a sealed-off system, it requires very little maintenance other than periodic checks of the water level to ensure consistent 15W power stability.
Can the spot size be adjusted for different procedures?
The system achieves a precise focus spot size of ≤0.8mm, which is optimized for surgical cutting. For vaporization over larger areas, the practitioner can adjust the handpiece distance or use specific operational modes to control the energy density.
