15W CO₂ Laser Station: Fractional Resurfacing, V2LR & Surgical Precision PC015-ESV
15W CO₂ Laser Station: Fractional Resurfacing, V2LR & Surgical Precision PC015-ESV
15W CO₂ Laser Station: Fractional Resurfacing, V2LR & Surgical Precision PC015-ESV
15W CO₂ Laser Station: Fractional Resurfacing, V2LR & Surgical Precision PC015-ESV
15W CO₂ Laser Station: Fractional Resurfacing, V2LR & Surgical Precision PC015-ESV
15W CO₂ Laser Station: Fractional Resurfacing, V2LR & Surgical Precision PC015-ESV
Specifications
Brand Name :
Precise
Model Number :
PC015-ESV
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T
Delivery Time :
5~10 Working days
Packaging Details :
Wooden Case
Certification :
CE
Price :
$6000~8000 FOB Shanghai
Supply Ability :
1 Unit/ 5 Working Days
Spacing :
0.2–2.6mm Adjustable
Treatment Spot :
20×20mm
Control Interface :
LCD Touchscreen Panel + Footswitch
Wavelength :
10.6 micrometers
Power Supply :
230VAC / 50Hz or 120VAC / 60Hz
Power Output :
Up to 15 Watts
Laser Type :
Carbon Dioxide (CO2) Laser
Weight :
Approximately 35 kg
Operation Mode :
Single Pulse, Repeat Pulse, Continuous Wave
Safety Features :
Emergency Stop Button, Key Switch, Safety Goggles Included
Applications :
Dermatology, ENT, Gynecology, Dentistry, General Surgery
Cooling System :
Closed-cycle Water Cooling
Beam Delivery :
Articulated Arm
Product name :
CO2 Laser Surgical System
Description
Sealed-off Fractional CO2 Laser Surgical System 0.2-2.6mm Adjustable

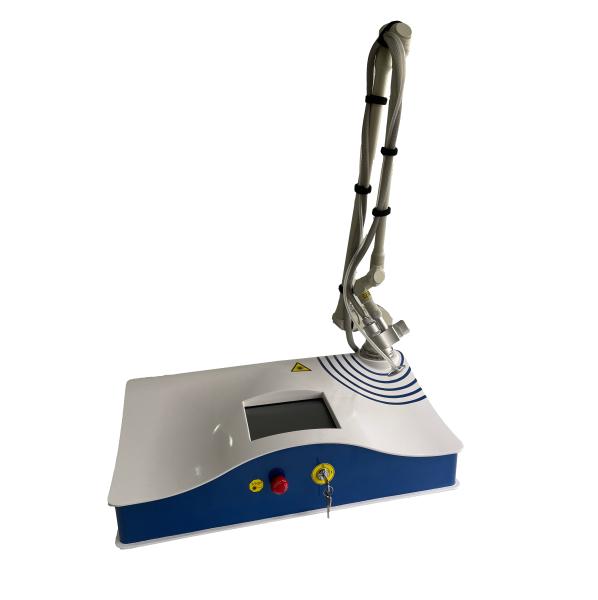

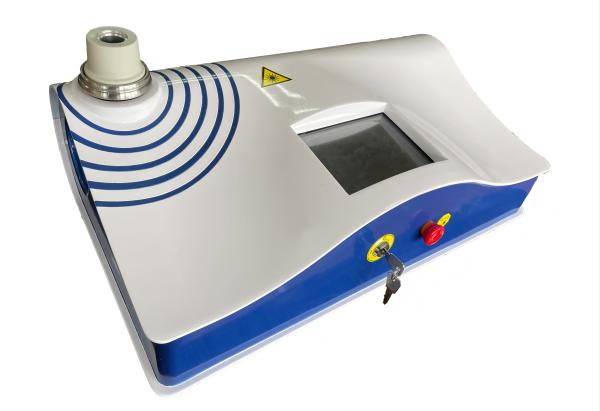

The PC015-ESV Sealed-off CO₂ Laser Surgical System is an advanced, multi-functional laser platform designed for high-precision medical and aesthetic interventions. Integrating Fractional and V2LR technology, this system utilizes a stable 15W sealed-off glass tube source to deliver consistent energy for precise tissue interaction. With its TEM₀₀ beam profile and ultra-fine 0.2mm focal spot, the PC015-ESV offers clinicians the ultimate tool for delicate surgical cutting, rapid vaporization, and effective skin resurfacing with minimal downtime.

Technical Specifications
Feature Specification
Laser Type / Source CO₂ Laser, Sealed-off Glass Tube
Wavelength 10,600 nm
Output Power 15W (Multi-Mode)
Beam Profile TEM₀₀ Precision
Operation Modes Single Pulse, Repeat Pulse, CW
Duty Time 0.1-10ms
Fractional Capability 1-10,000 dots; 20x20mm max scan size
Spot Size Ultra-fine ≤ 0.2 mm (at focus)
Beam Delivery 7-Joint, Spring-Balanced Articulated Arm (110cm)
Display & Control LCD Touchscreen & Footswitch
Cooling / Power Water Closed-Cycle / 230VAC/50Hz or 120VAC/60Hz
Key Advantages & Applications
  • Advanced Fractional & V2LR Technology: Features customizable treatment parameters with a scan density of up to 10,000 dots. This allows for precise fractional resurfacing and specialized rejuvenation procedures with significantly reduced recovery times.
  • Ultra-Fine Surgical Precision: The ≤ 0.2mm focal spot size (TEM₀₀) provides industry-leading accuracy, enabling bloodless, sharp incisions and targeted vaporization of lesions with virtually no thermal damage to surrounding tissue.
  • Flexible Scanning Geometry: The system supports multiple scan graphics—Circle, Square, and Rectangle—with a maximum scan size of 20x20mm, allowing practitioners to tailor the treatment to specific anatomical contours.
  • Professional Ergonomics: The 7-joint spring-balanced articulated arm provides a 110cm working radius, ensuring smooth maneuverability and stable beam delivery across all 360 degrees of motion.
  • Clinical Applications:
    • Aesthetic Dermatology: Deep skin resurfacing, scar revision, and fine line removal.
    • Specialized Health: V2LR technology for advanced gynecological and intimate wellness treatments.
    • General Surgery: High-precision cutting, vaporization of warts/moles, and soft tissue ablation.
Product Q&A
Q1: What makes the PC015-ESV "focal spot" different from other models?
A: The ESV model features an ultra-fine focal spot of ≤0.2mm, which is significantly smaller than standard surgical lasers. This allows for much higher energy density at the point of contact, resulting in cleaner surgical cuts and more effective fractional micro-columns during resurfacing.
Q2: How does the "Fractional dot quantity" setting impact treatment?
A: By adjusting the dot quantity from 1 to 10,000, clinicians can control the "density" of the treatment. Lower densities are ideal for sensitive skin and faster recovery, while higher densities provide more aggressive remodeling for deep wrinkles or severe scarring.
Q3: Can the scan graphics be customized during the procedure?
A: Yes. Through the intuitive LCD touchscreen, the operator can switch between Circle, Square, and Rectangle graphics and adjust the scan size up to 20x20mm to perfectly match the treatment area.
Q4: Is the PC015-ESV suitable for international clinics with different voltages?
A: Absolutely. The system is designed with global dual-voltage compatibility (120 VAC / 60Hz or 220 VAC / 50Hz), ensuring stable performance in any medical facility worldwide without the need for external transformers.
