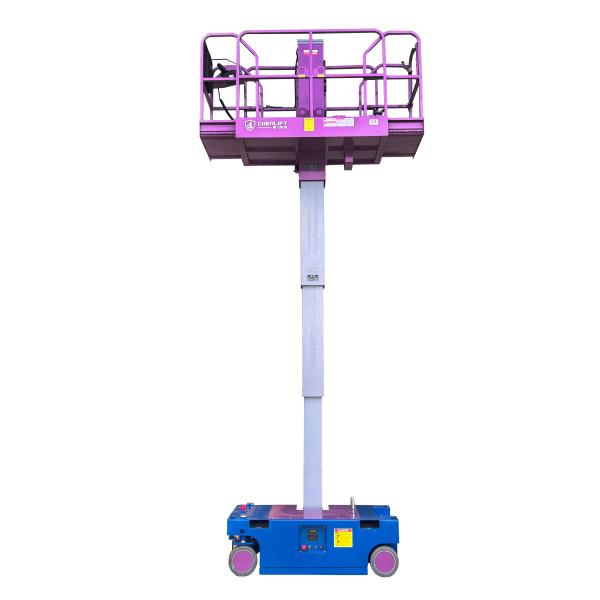

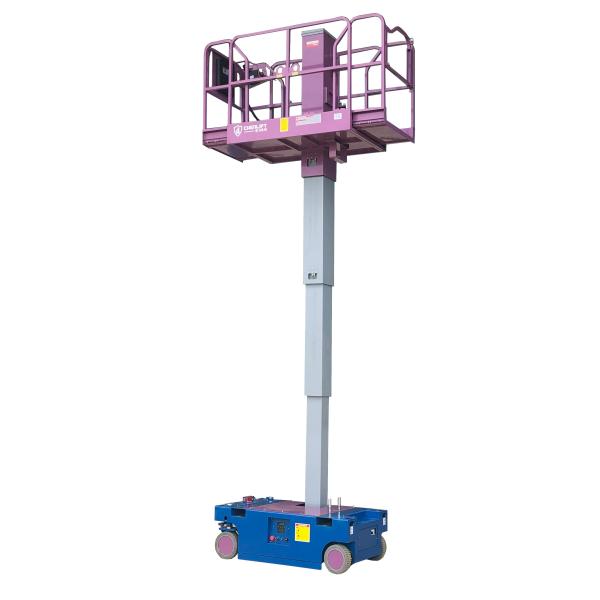

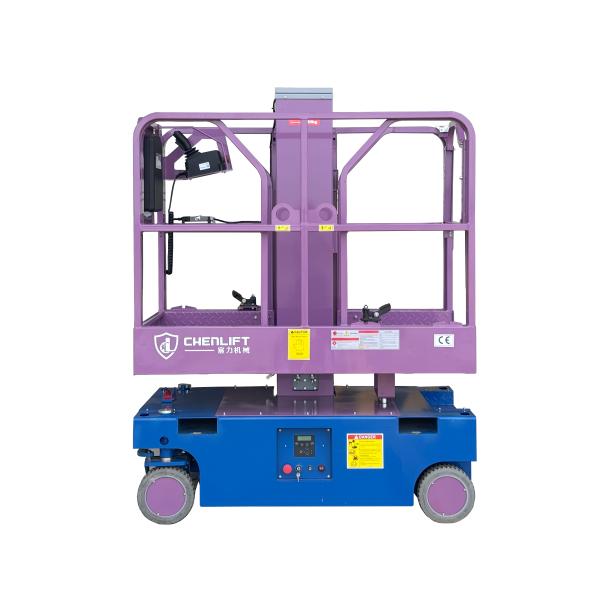

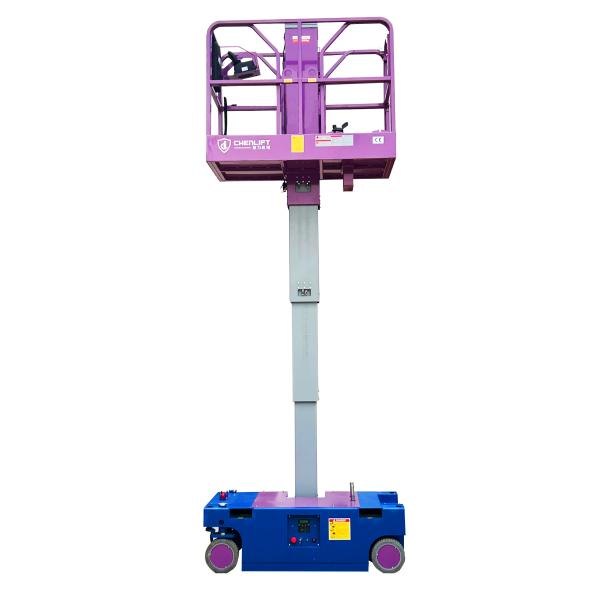

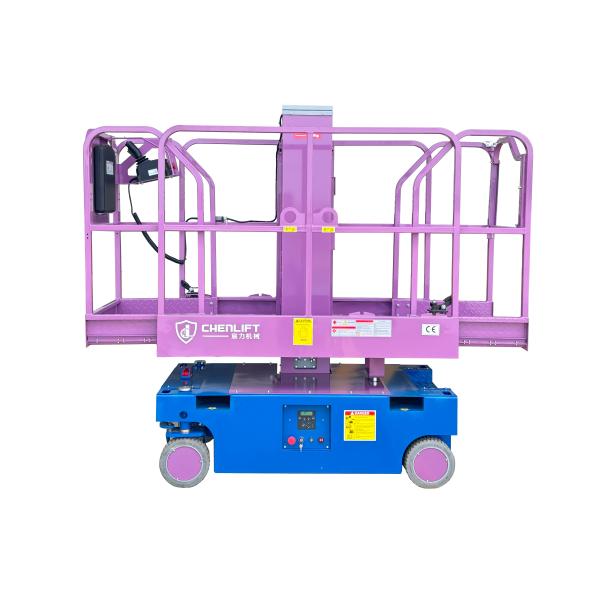

Md400 Model Oil Free Full Electric Self Propelled Vertical Lift
Md400 Model Oil Free Full Electric Self Propelled Vertical Lift
Md400 Model Oil Free Full Electric Self Propelled Vertical Lift
Md400 Model Oil Free Full Electric Self Propelled Vertical Lift
Md400 Model Oil Free Full Electric Self Propelled Vertical Lift
Md400 Model Oil Free Full Electric Self Propelled Vertical Lift
Md400 Model Oil Free Full Electric Self Propelled Vertical Lift
Md400 Model Oil Free Full Electric Self Propelled Vertical Lift
Md400 Model Oil Free Full Electric Self Propelled Vertical Lift
Md400 Model Oil Free Full Electric Self Propelled Vertical Lift
Specifications
Place of Origin :
China
Brand Name :
CHENLIFT
Certification :
CE
Model Number :
MD400
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Wrapped in pallets
Delivery Time :
30 days
Payment Terms :
T/T L/C
Supply Ability :
200 sets/month
Model :
MD400
Load Capacity :
230kg
Platform Size :
1.5*0.8m
Extension Platform :
0.4+0.4m
Extension Load :
120kg
Stowed Size :
2.3*0.8*1.99m
Power :
DC24V 100AH
Charger :
24V 30A
Description

MD400 Model OIL FREE FULL ELECTRIC SELF PROPELLED VERTICAL LIFT

STANDARD CONFIGURATION:
OIL FREE
CAN BUS PROTOCOL
PROPORATIONAL JOYSTICK CONTROL
SELF LOCKING GATES
DRIVABLE AT FULL HEIGHT
NON MARKING TIRES
DUAL WHEEL AUTOMATIC BRAKING
EMERGENCY DESCENT SYSTEM
FAULT DIAGNOSE SYSTEM
TILT ALARM/MOTION ALARM/HORN/HOUR METER
EXTENSION PLATFROM FOR BOTH 2 SIDES
OVERLOADING SENSOR
FORKLIFT SLOT
POTHOLE PROTECTION


SPECIFICATION:

Model MD400
Max. Working Height 6m
Max. Platform Height 4m
Loading Capacity 230Kg
Platform Size 1.5*0.8m
Platform Extension 0.4+0.4m
Platform Load Capacity 120kg
Stowed Size 2.3*0.8*1.99m
Ground Clearance 0.07m
Wheelbase 1.11m
Battery 2*12V/100AH
Up/Down Speed 20S/25S
Travel Speed (Stowed) 0.8Km/h
Travel Speed (Raised) 4Km/h
Turning Radius 0.5m/1.2m
Gradeability 25%
Charger 24V/30A
Tyre 305*100
Maximum Working Slope 1.5/3
Weight 920Kg

Md400 Model Oil Free Full Electric Self Propelled Vertical Lift
Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Vertical Lift Purpose: machine maintenance, painting, cleaning etc.


Why to choose CHENLIFT ?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
