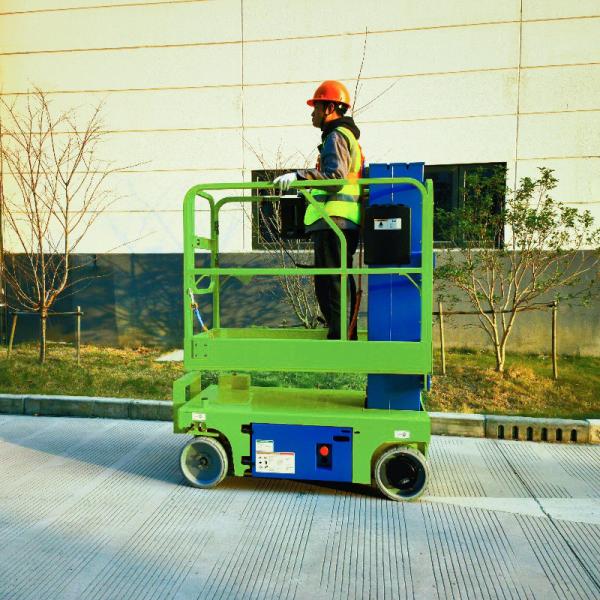

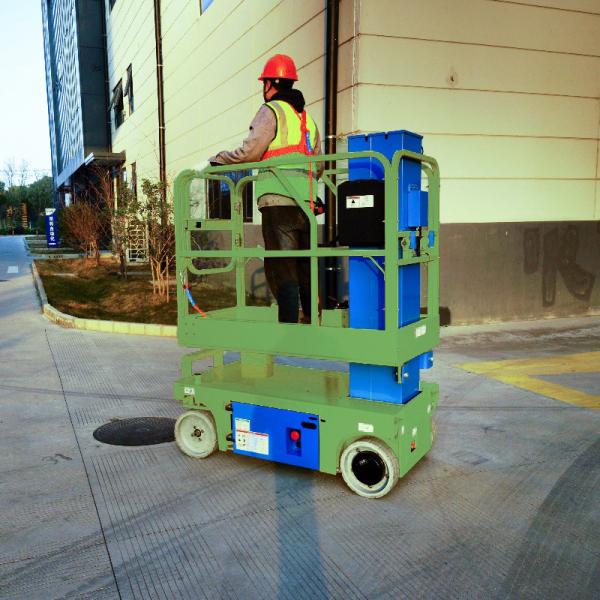

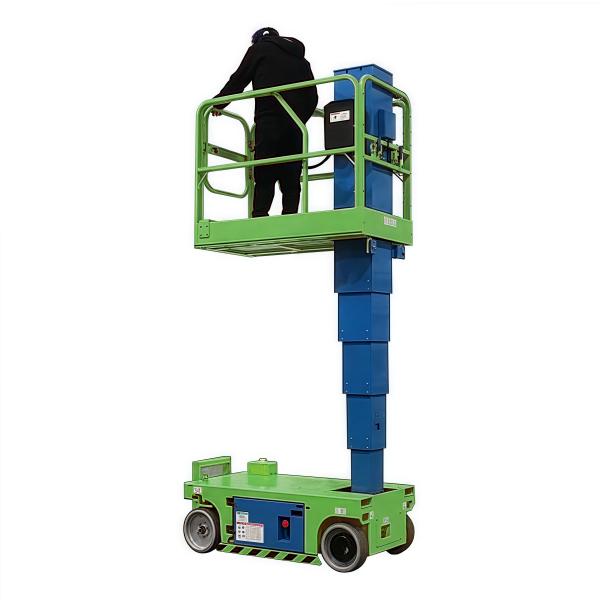

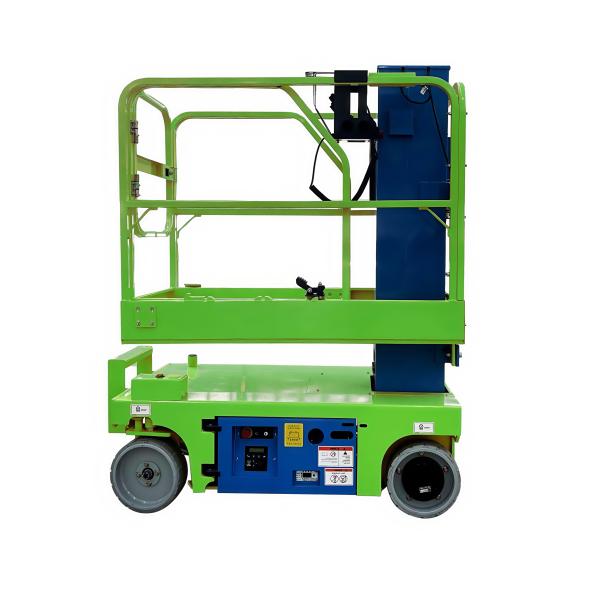

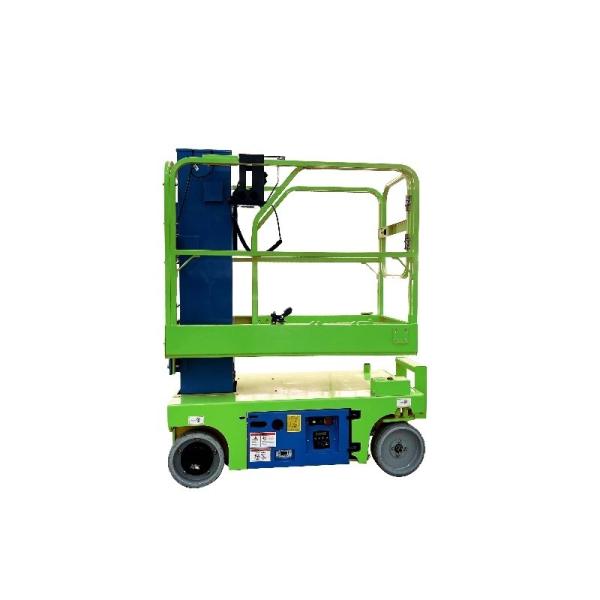

MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift
MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift
MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift
MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift
MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift
MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift
MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift
MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift
MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift
MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift
Specifications
Place of Origin :
China
Brand Name :
CHENLIFT
Certification :
CE
Model Number :
MD570
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Wrapped in pallets
Delivery Time :
30 days
Payment Terms :
T/T L/C
Supply Ability :
200 sets/month
Name :
Fully Electric Vertical Lift
Keyword :
Oil Free，Fully Electric，Vertical Lift，Self Propelled Lift
Platformform Capacity :
200kg
Max Platform Height :
5.7m
Power Source :
2*12V/100AH
Charger :
100-240VAC/15A
Weight :
1105kg
Description

Product Description:

CHEN LIFT launched a range of fully oil-free machines ,comprising vertical mast lifts with no hydraulic oil

Standard Configuration:

▲Proportional Joystick Control

▲Forklift Slot

▲Drivable At Full Height

▲Emergency Stop Button both on PLatform and Ground

▲Electric Lifting Push Rod

▲AC Motor Driving

▲Fault Diagnose System

▲Dual Wheel with 0 Turning Radius

▲Manual Emergency Descent System

▲Pothole Protection；Break Release；Zero Emissions

Optional Configuration:

▲AC Power to PLatform

▲Platform Working Light

▲Extension Platform

▲Platform Positioning Laser Lights

▲Overloading Sensor

▲Wireless Tracking

▲Saloon-door Style Entry Gates/Top Open Door

▲Electric Picking Tray with Foldable Side Panels and Front Guardrails


Specification:

Model MD570
Platformform Capacity 200kg
Extension Platform Capacity 113kg
Max Platform Height-A 5.7m
Max Working Height 7.7m
Platform Length-B 1.5m
Platform Width-C 0.78m
Extension Length 0.5m
Overall Height(Unfold Guardrail)-D 1.99m
Overall Length(With Ladder)-E 1.62m
Overall Width-F 0.8m
Wheelbase-G 1.28m
Ground Clearance(Raised)-H 0.08m
Ground Clearance(Stowed)-I 0.02m
Travel Speed(Stowed) 3.5km/h
Travel Speed(Raised) 0.6km/h
Turning Radius 0.6m/1.8m
Maximum Working Slope 1.5°/3°
Wheel Φ305*100mm
Power Source 2*12V/100AH
Charger 100-240VAC/15A
Weight 1105kg

MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift

Company Introduction:

Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift
