Specifications
Brand Name :
CHENLIFT
Model Number :
MD400
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets/month
Delivery Time :
30 days
Packaging Details :
Wrapped in pallets
Name :
Full Electric Vertical Lift
Model :
MD400
Load Capacity :
230kg
Platform Size :
1.5*0.8m
Extension Platform :
0.4+0.4m
Extension Load :
120kg
Stowed Size :
2.3*0.8*1.99m
Power :
DC24V 100AH
Charger :
24V 30A
Keyword :
Oil Free,Full Electric,Vertical Lift,Self Propelled Vertical Lift
Description

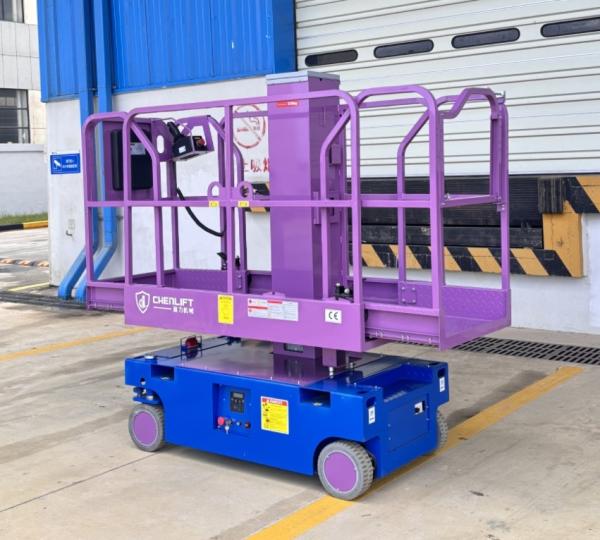

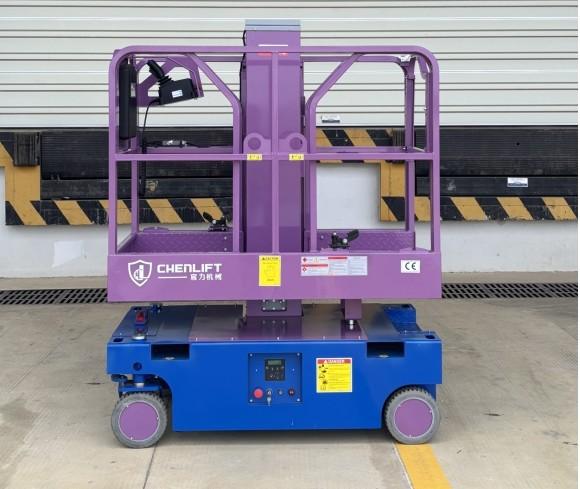

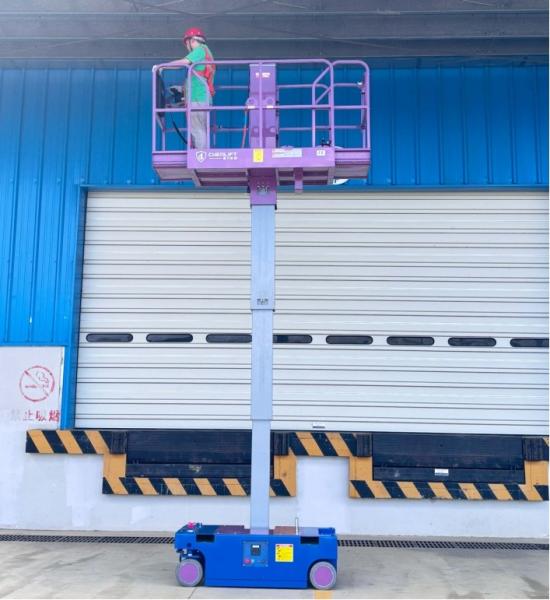

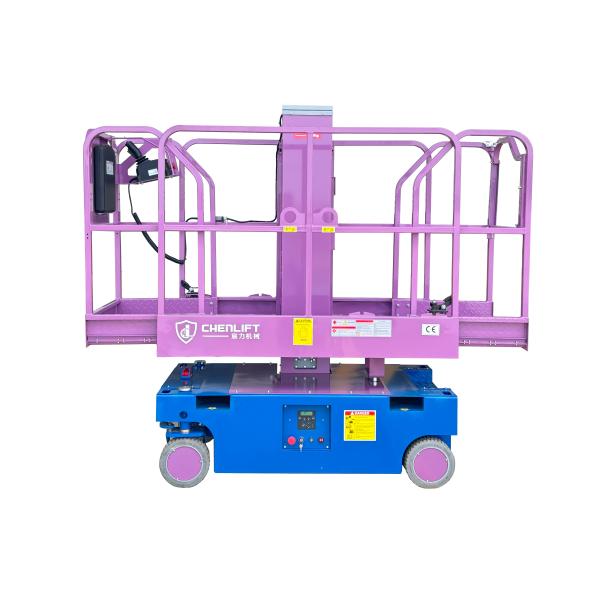

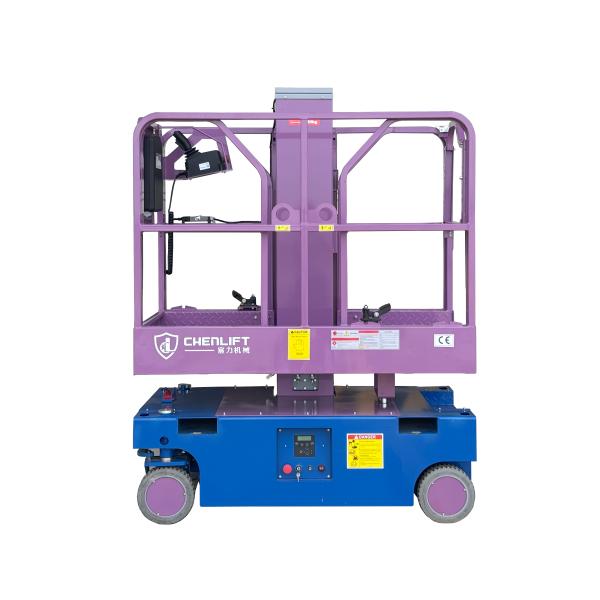

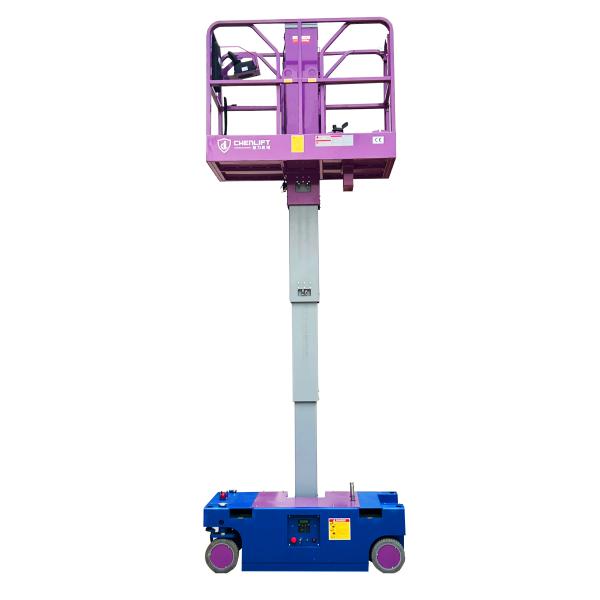

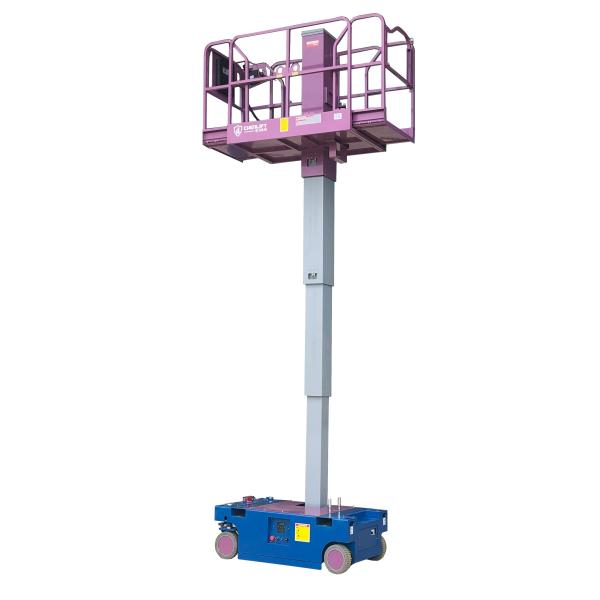

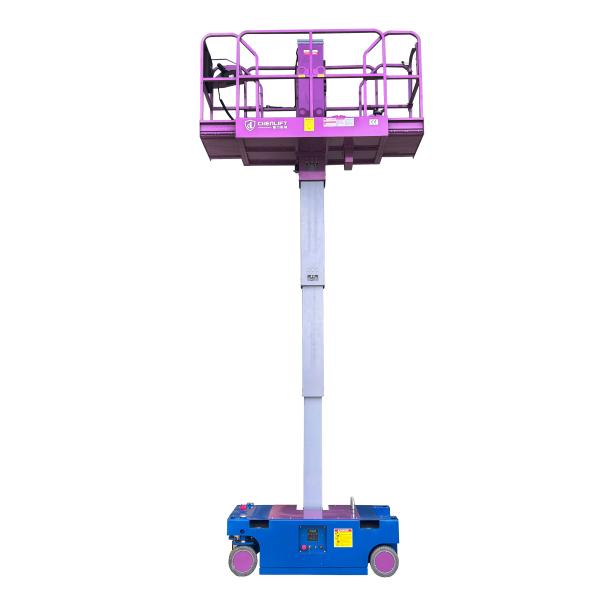

MD400 Model OIL FREE FULL ELECTRIC SELF PROPELLED VERTICAL LIFT

STANDARD CONFIGURATION:
OIL FREE
CAN BUS PROTOCOL
PROPORATIONAL JOYSTICK CONTROL
SELF LOCKING GATES
DRIVABLE AT FULL HEIGHT
NON MARKING TIRES
DUAL WHEEL AUTOMATIC BRAKING
EMERGENCY DESCENT SYSTEM
FAULT DIAGNOSE SYSTEM
TILT ALARM/MOTION ALARM/HORN/HOUR METER
EXTENSION PLATFROM FOR BOTH 2 SIDES
OVERLOADING SENSOR
FORKLIFT SLOT
POTHOLE PROTECTION


SPECIFICATION:

Model MD400
Max. Working Height 6m
Max. Platform Height 4m
Loading Capacity 230Kg
Platform Size 1.5*0.8m
Platform Extension 0.4+0.4m
Platform Load Capacity 120kg
Stowed Size 2.3*0.8*1.99m
Ground Clearance 0.07m
Wheelbase 1.11m
Battery 2*12V/100AH
Up/Down Speed 20S/25S
Travel Speed (Stowed) 0.8Km/h
Travel Speed (Raised) 4Km/h
Turning Radius 0.5m/1.2m
Gradeability 25%
Charger 24V/30A
Tyre 305*100
Maximum Working Slope 1.5/3
Weight 920Kg

DC24V 100AH Oil Free Full Electric Vertical Lift Self Propelled
Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Vertical Lift Purpose: machine maintenance, painting, cleaning etc.


Why to choose CHENLIFT ?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
