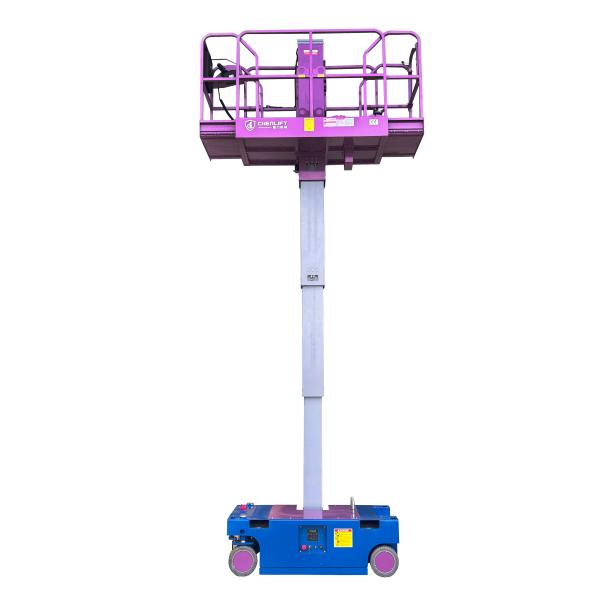

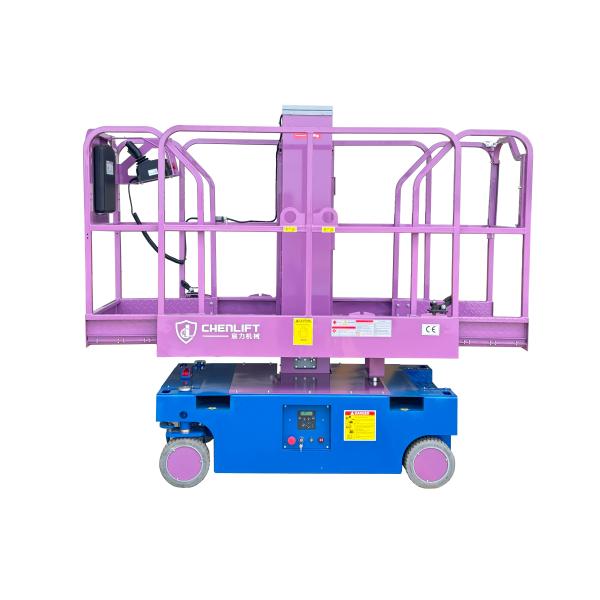

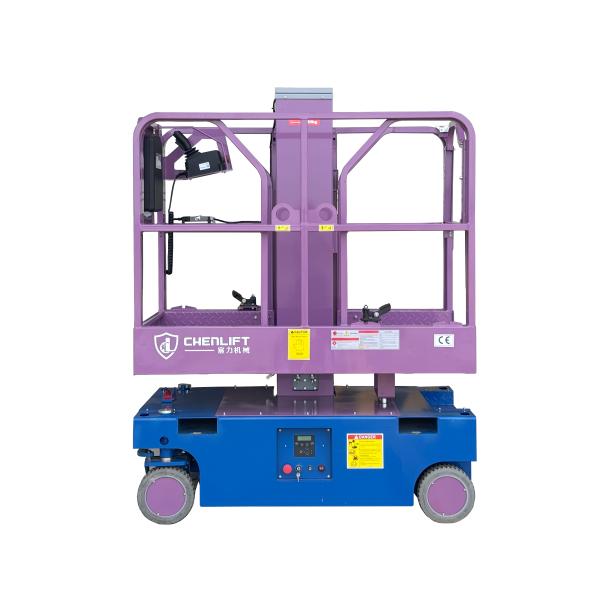

MD390-2 Fully Electric Self Propelled Vertical Lift 230kg Lift Capacity
MD390-2 Fully Electric Self Propelled Vertical Lift 230kg Lift Capacity
MD390-2 Fully Electric Self Propelled Vertical Lift 230kg Lift Capacity
MD390-2 Fully Electric Self Propelled Vertical Lift 230kg Lift Capacity
MD390-2 Fully Electric Self Propelled Vertical Lift 230kg Lift Capacity
MD390-2 Fully Electric Self Propelled Vertical Lift 230kg Lift Capacity
MD390-2 Fully Electric Self Propelled Vertical Lift 230kg Lift Capacity
MD390-2 Fully Electric Self Propelled Vertical Lift 230kg Lift Capacity
MD390-2 Fully Electric Self Propelled Vertical Lift 230kg Lift Capacity
MD390-2 Fully Electric Self Propelled Vertical Lift 230kg Lift Capacity
Specifications
Brand Name :
CHENLIFT
Model Number :
MD390-2
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets/month
Delivery Time :
30 days
Packaging Details :
Wrapped in pallets
Name :
Oil Free Full Electric Vertical Lift
Model :
MD400
Load Capacity :
230kg
Platform Size :
1.5*0.8m
Extension Platform :
0.4+0.4m
Extension Load :
120kg
Stowed Size :
2.3*0.8*1.99m
Power :
DC24V 100AH
Charger :
24V 30A
Keyword :
Oil Free,Full Electric,Vertical Lift,Self Propelled Vertical Lift
Description

Product Description:

CHEN LIFT launched a range of fully oil-free machines ,comprising vertical mast lifts with no hydraulic oil

Standard Configuration:

*Oil Free

*CAN BUS Protocol

*Proportional Joystick Control

*Self locking Gates

*Drivable at Full Heigh

*Non-Marking Tires

*Dual Wheel Automatic Braking

*Emergency Descent System

*Fault Diagnose System

*Tilt Alarm/Motion Alarm/Horn/Hour meter

*Extension Platform for both two sides

*Overloading sensor

*Forklift Slot

*Pothole Protection

Optional Configuration:

*AC Power to Platform

*Platform Working Light

*Platform Positioning Laser Lights

*Wireless Tracking

Specification:

Model MD390-2
Max. Working Height-A 6m
Max. Platform Height-B 4m
Platform Size 1.5*0.8m
Platform Extension 0.4+0.4m
Stowed Length-C 2.30m
Stowed Width-D 0.8m
Stowed Height-E 1.99m
Wheelbase 1.11m
Ground Clearance 0.07m
Lift Capacity

230kg
Platform Extension Capacity 120kg
Travel Speed(Stowed) 4km/h
Travel Speed(Raised) 0.8km/h
Turning Radius-Inside 0.5m
Turning Radius-Outside 1.2m
Up/Down Speed 20S/25S
Gradeability 25%
Maximum Working Slope(Side/Width) 1.5°/3°
Tyre 305*100
Battery 2*12V/100Ah
Charger 24V30A
Total Weight 920kg

Company Introduction:

Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
