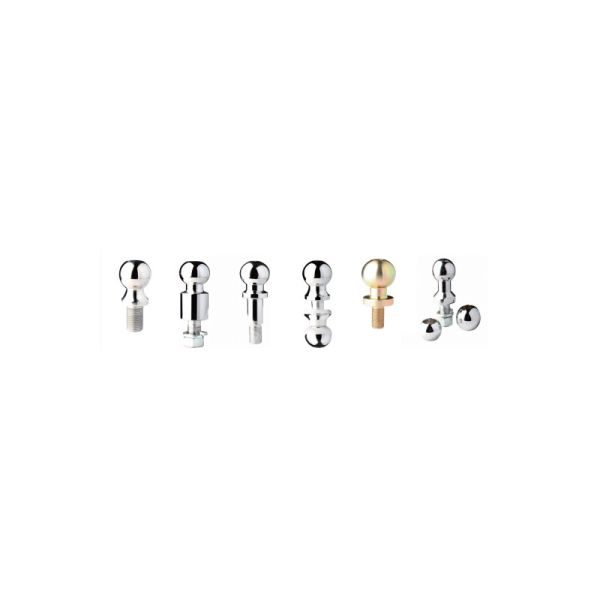

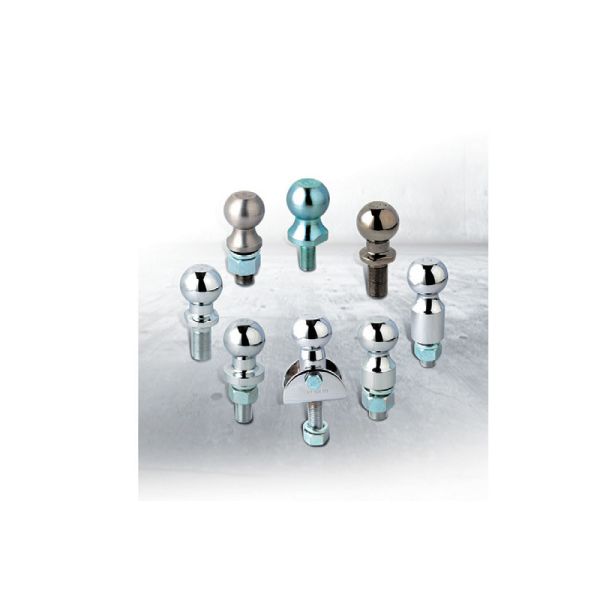

YD41 Series Tow Hitch Balls (Tow Hitch Balls Series YD41-001~011) Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Core Parameter Summary Table

2. Model Load-Bearing and Scenario Adaptation Table

II. Product Details (PRODUCT DETAILS)

1. Military-Grade Material + Reinforced Structure, Unlimited Heavy-Load Capacity

(1) Hot-Forged Solid Steel, Rugged and Impact-Resistant

• Adopts integral forming of hot-forged solid steel (ordinary tow hitch balls mostly use casting process with internal air holes). YD41-001~008 have a tensile strength of 500-600MPa, while the ultra-heavy-duty YD41-009 is upgraded to military-grade hot-forged steel with a tensile strength exceeding 700MPa — in the 20,000 LBS static load test, the body shows no bending or cracking, far exceeding the shortcoming of "cast tow hitch balls breaking at 15,000 LBS";
• The shank is professionally heat-treated, with a hardness of HV300 and a shear strength of ≥450MPa. When towing a 14,000 LBS heavy-duty trailer, there is no shear deformation of the shank, adapting to high-frequency heavy-load use.

(2) Precision Threads + Multi-Specification Design, Unlimited Adaptation

• Threads are processed with precision technology, reaching grade 6H precision (ordinary tow hitch balls only have grade 8H thread precision). During installation, they fully fit the threads of the ball mount, with no thread stripping or loosening, and the stability after tightening is improved by 40%;
• Multiple combinations of ball diameters (1-7/8”~2-5/16”+50mm) and shank sizes (diameter 3/4”~1-1/4”, length 1-1/2”~3”) cover light to ultra-heavy-duty, US standard to metric scenarios. Users do not need to purchase separately for different trailers, reducing usage costs.

2. All-Scenario Protection + Quick-Release Innovation, Enhanced Experience

(1) Multi-Coating Protection, Adapting to Complex Environments

• Chrome Plating: Chrome plating thickness on the surface ≥15μm, no corrosion in 72-hour salt spray tests, no rust for 2 years of use in coastal areas. The surface is smooth, with low friction loss during engagement;
• Black Coating: Epoxy resin material, thickness 25-30μm, scratch-resistant and oil-resistant. After use in construction sites or dusty scenarios, it can be cleaned with a high-pressure water gun, enabling convenient maintenance;
• Stainless Steel: YD41-001~009 offer stainless steel versions, with corrosion resistance far exceeding ordinary coatings, suitable for high-corrosion scenarios such as chemical industry and seafood transportation.

(2) Quick-Release Design + Humanized Details, Easy Operation

• Innovative Quick-Release Structure: Press-type quick-release button allows ball replacement in seconds without tools (ordinary tow hitch balls require bolt removal and take more than 10 minutes to replace), adapting to scenarios where multiple trailers are used alternately, improving efficiency by 90%;
• Clear Markings: The ball surface is printed with model, load-bearing, diameter and other markings (e.g., "YD41-009 / 20000LBS / 2-5/16”), allowing users to quickly identify the adaptation range and avoid safety hazards caused by improper use.

3. International Certification + Customization Service, Dual Advantages for Commercial and Household Use

(1) Authoritative Certification, Global Compatibility

• The entire series has passed ISO and CE certifications, and SGS test reports can be provided on request. It complies with traction standards in major global markets such as Europe, America and Asia, and no additional modification is required for export;
• The traction transmission efficiency is ≥99%, with less power loss than ordinary tow hitch balls (approx. 95%). When towing heavy-duty trailers, the fuel consumption of the tow vehicle is reduced by 5%-8%, saving operating costs.

(2) Customization Support, Meeting Special Needs

• Customization of ball diameter, shank size (e.g., non-standard metric/imperial sizes), surface treatment processes (e.g., special color coatings) is available, and corporate logos can also be customized to meet commercial branding needs;
• For extreme scenarios (e.g., ultra-low temperature, ultra-high temperature), tow hitch balls made of special materials (e.g., low-temperature resistant alloys) can be customized to meet personalized needs in engineering and special transportation.

III. Application Scenarios (APPLICATION SCENARIOS)

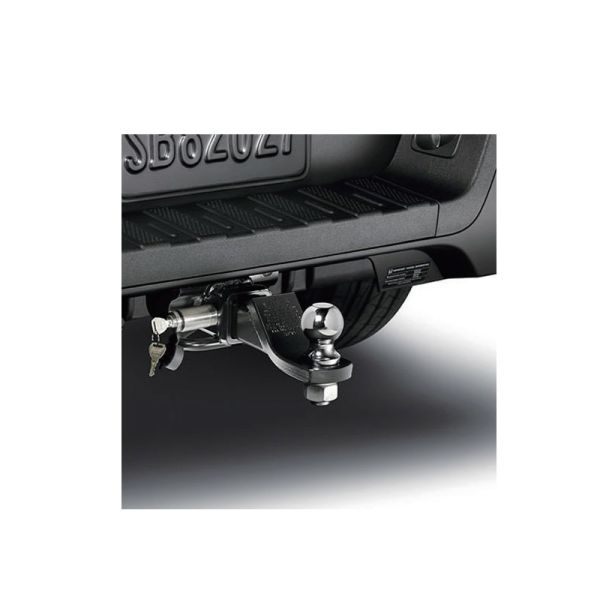

1. Towing of Household Light Camping Trailers (Core Scenario: YD41-003)

1. Model Selection and Installation:
   - The trailer coupler is 2", weight 3,000 LBS, and the ball mount shank hole diameter is 3/4", so YD41-003 (2" ball, 3/4" shank, 3,500 LBS load-bearing, sufficient safety margin) is selected;
   - Installation: Select YD41-003 with a 2" shank length, align it with the ball mount hole and tighten clockwise, then fasten to 40N·m with a torque wrench, taking 5 minutes;
   2. Camping Towing Experience:
   - Stability Performance: At a high-speed driving speed of 100km/h, the ball and coupler engage smoothly with no "squeaking" noise, and the trailer has no left-right deviation; no loosening on bumpy mountain roads;
   - Salt Spray Resistance: When passing through coastal highways, the tow hitch ball is rinsed with fresh water after camping, and there is no salt spray rust on the chrome surface, which can be cleaned with a dry cloth;
   - Convenience: After returning, press the quick-release button to remove the tow hitch ball in 10 seconds and store it in the SUV trunk without occupying space;
   3. Advantage Performance:
   - The 2" ball precisely adapts to the trailer coupler, with no gap or wobbling;
   - The chrome coating is salt spray resistant, adapting to camping needs in multiple environments.
   Result: The towing safety and comfort of the household camping trailer are improved, with no adaptation problems or corrosion issues, fully adapting to household leisure scenarios.

2. Transportation of Commercial Medium-Duty Cargo Trailers (Scenario 2: YD41-005)

1. Model Selection and Installation:
   - The trailer coupler is 2-5/16", weight 11,000 LBS, and the ball mount shank hole diameter is 1", so YD41-005 (2-5/16" ball, 1" shank, 6,000 LBS load-bearing, compatible with medium heavy-load) is selected;
   - Installation: Select YD41-005 with a 2-1/2" shank length, fasten to 55N·m torque, and conduct a 20km no-load towing test after installation to confirm no loosening;
   2. Cargo Transportation Performance:
   - Heavy-Load Resistance: Transporting a full load of 5 tons of goods daily, the tow hitch ball shows no deformation, no shear marks on the shank, and no thread stripping;
   - Oil Resistance: Diesel and engine oil contaminated during transportation can be wiped clean with a rag dipped in dish soap, with no residue on the black coating;
   - Efficiency Advantage: Compatible with 10 pickup trucks of the same model in the company, no need for separate customization for each vehicle, reducing procurement costs by 30%;
   3. Commercial Advantages:
   - 6,000 LBS load-bearing meets medium-duty cargo transportation needs, with sufficient safety margin;
   - The hot-forged solid structure is impact-resistant, adapting to high-frequency commercial scenarios.
   Result: The cargo transportation efficiency is increased by 25%, and the tow hitch ball failure rate is reduced from once a month to zero, fully adapting to high-frequency commercial scenarios.

3. Transportation of Ultra-Heavy-Duty Engineering Equipment (Scenario 3: YD41-009)

1. Model Selection and Installation:
   - The trailer weight is 39,600 LBS, the coupler is 2-5/16", and the ball mount shank hole diameter is 1-1/4", so YD41-009 (2-5/16" ball, 1-1/4" shank, 20,000 LBS load-bearing, compatible with extreme heavy-load) is selected;
   - Installation: Select YD41-009 with a 3" shank length, fasten with Grade 12.9 bolts to 75N·m torque, and conduct ultrasonic flaw detection after installation to confirm no internal defects in the body;
   2. Engineering Operation Performance:
   - Extreme Heavy-Load Resistance and Wear Resistance: When towing the excavator up a 30° steep slope, the tow hitch ball shows no deformation; when bumping on gravel roads, the wear of the engagement surface is only 0.05mm/month;
   - Corrosion Resistance: The construction site is dusty and rainy, and the chrome surface is rinsed with a high-pressure water gun once a week, with no rust after 6 months of use;
   - Safety: A tension monitor is equipped throughout the process, and the traction transmission efficiency remains stable above 99% with no power loss;
   3. Engineering Advantages:
   - Military-grade hot-forged steel resists extreme heavy loads, with no fracture risk;
   - The 1-1/4" thickened shank has strong shear resistance, adapting to harsh engineering scenarios.
   Result: The transportation efficiency of engineering equipment is increased by 40%, with no project delays caused by tow hitch ball failures, adapting to extreme heavy-load operation scenarios.

IV. Frequently Asked Questions (FAQ)

Q1: There is a "clanging" noise between the tow hitch ball and the coupler during towing after installation. What is the reason?

1. Confirm Ball-Coupler Compatibility: If a 1-7/8" ball is used with a 2" coupler (e.g., YD41-001 with a 2" coupler), noise will occur due to excessive gap — immediately replace with a tow hitch ball of the corresponding diameter (e.g., 2" ball YD41-003) to ensure the ball and coupler sizes are completely consistent;
2. Supplement Installation Torque: Insufficient torque (e.g., only 50N·m for YD41-009) will cause ball loosening and noise — retighten to the standard torque corresponding to the model with a digital torque wrench (Light-Duty: 35-45N·m, Ultra-Heavy-Duty: 70-75N·m). It is recommended to apply thread locker (e.g., Loctite 243) to enhance fixation;
3. Clean Engagement Surface: Dust and oil accumulation on the engagement surface will cause uneven force — clean the engagement surfaces of the ball and coupler with a cleaning agent, apply a small amount of silicone-based grease (do not use engine oil) after drying, and restore smooth engagement.

Q2: After long-term use in coastal areas, spot rust appears on the chrome surface of the tow hitch ball. How to handle it?

1. Minor Rust Treatment: Gently polish the rust with 1200-grit fine sandpaper (avoid scratching the chrome layer) until the metal color is exposed. Then evenly spray with chrome repair agent (matching model available from the merchant) and air-dry for 24 hours;
2. Severe Rust Treatment: If the rust has penetrated under the chrome layer (base material rust), the tow hitch ball must be replaced immediately — continued use will increase the engagement gap and raise the risk of trailer out of control. For coastal areas, it is recommended to prioritize stainless steel tow hitch balls (e.g., stainless steel version of YD41-008);
3. Preventive Maintenance: Rinse the salt on the tow hitch ball surface with fresh water every 2 weeks, and apply industrial anti-rust wax (salt spray-resistant type) after drying, once a month, to enhance the salt spray resistance of the chrome layer and extend service life.

Q3: How to select the correct YD41 series model based on trailer and ball mount parameters?

1. Confirm Coupler Size (i.e., Ball Diameter):
   - 1-7/8" coupler: Select YD41-001~002;
   - 2" coupler: Select YD41-003~004;
   - 2-5/16" coupler: Select YD41-005~009;
   - 50mm coupler (metric): Select YD41-010~011;
2. Confirm Trailer Weight (reserve ≥20% safety margin):
   - Weight ≤3,500 LBS: Select light-duty models of corresponding diameter (001~003);
   - 3,500 LBS ＜ Weight ≤6,000 LBS: Select medium-duty models of corresponding diameter (004~005);
   - 6,000 LBS ＜ Weight ≤20,000 LBS: Select heavy-duty/ultra-heavy-duty models of corresponding diameter (006~009);
3. Confirm Ball Mount Parameters (Shank Diameter + Depth):
   - Ball mount hole diameter = tow hitch ball shank diameter (e.g., 3/4" hole diameter for 001/003);
   - Ball mount depth ≥ tow hitch ball shank length (e.g., depth 2" for models with shank length ≤2").

Q4: When replacing the tow hitch ball using the quick-release function, the ball cannot be removed smoothly. How to handle it?

1. Check the Quick-Release Structure: If the quick-release button feels stuck when pressed, it may be due to dust accumulation in the button or spring jamming — blow off the dust around the quick-release button with compressed air, drop 1-2 drops of special lubricating oil (e.g., sewing machine oil), and press the button repeatedly 5-10 times to eliminate the jamming;
2. Treat Thread Rust: Thread rust after long-term use will cause the ball to seize — drop rust remover (e.g., WD-40) into the thread gap, let it stand for 10 minutes, then gently turn the ball with a wrench (alternating clockwise/counterclockwise) to gradually loosen the rusted threads;
3. Preventive Suggestions: After each ball replacement, apply a small amount of anti-rust oil to the quick-release structure and threads to avoid dust accumulation and rust; when not in use for a long time, remove the tow hitch ball and store it in a dry environment to prevent quick-release structure aging.
