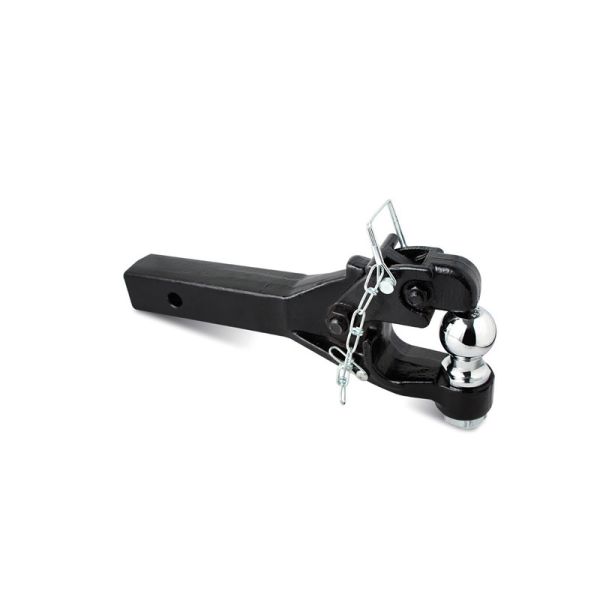

YD39-009~011 Series Heavy-Duty Pintle Hook Mounts (Heavy-Duty Pintle Hook Mounts Series YD39-009~011) Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Core Parameter Summary Table

2. Model Difference and Application Scenario Table

II. Product Details (PRODUCT DETAILS)

1. Graded Load-Bearing + High-Strength Structure, Stable Heavy-Load Performance

(1) Graded Body and Ball Capacity, Sufficient Safety Margin

• YD39-009 (2,000 LBS ball capacity): The body capacity reaches 12,000 LBS, with a safety margin of 500%. Even if the ball is accidentally overloaded, the body can still support temporarily to avoid breakage risks;
• YD39-011 (12,000 LBS ball capacity): Exclusive large-sized ball design, the engagement surface fully fits the ball, transmitting traction evenly, reducing local stress concentration, and adapting to high-frequency use of 35-ton engineering equipment trailers.

(2) Solid Shank + Carbon Steel Body, Rugged and Impact-Resistant

• The shank is forged from solid alloy steel (ordinary hook mounts mostly have hollow shanks), with a shear strength of ≥450MPa. When towing a 7,000 LBS medium-duty trailer, there is no shear deformation of the shank;
• The body is integrally welded from high-strength carbon steel, with a tensile strength of ≥400MPa at the welds. In the 12,000 LBS static load test, the body bending is ≤0.3mm, far exceeding the shortcoming of "ordinary carbon steel hook mounts deforming at 8,000 LBS", adapting to heavy-load towing under complex road conditions.

2. All-Scenario Protection + Detail Optimization, Long Durability

(1) Black Coating + Chrome-Plated Engagement, Adapting to Multiple Environments

• Body black powder coating: Cured at high temperature, with strong adhesion (no peeling in cross-cut tests), no corrosion in 48-hour salt spray tests, and no rust for 1 year of use in coastal areas; after being contaminated with engine oil or sand, it can be cleaned with a high-pressure water gun, enabling convenient maintenance;
• Chrome-plated engagement part: 15μm thick, anti-oxidation and reducing friction loss. YD39-011 is additionally equipped with a wear-resistant alloy layer, with a wear rate of ≤0.1mm/year after long-term engagement, extending the service life by 50% compared to ordinary models.

(2) Universal Holes + Lightweight Design, Easy Installation

• Pre-drilled universal mounting holes (center distance 3-3/8" × 1-7/8") are compatible with the frames of most light trucks and heavy SUVs, no additional drilling required (ordinary hook mounts need customized holes based on vehicle models, which is time-consuming and costly);
• With a net weight of only 8-9kg (2kg lighter than solid-shank hook mounts of the same capacity), it can be installed by 2 people in 30 minutes without professional tools, suitable for both household and commercial scenarios.

3. Multi-Scenario Adaptation + Humanized Design, Flexible Use

(1) Full Coverage of Dual-Size Balls, Wide Adaptation Range

• Covers sizes from small balls (1-7/8") to large balls (2-5/16"). Users can select precisely according to the trailer coupler size without replacing the hook mount body (ordinary hook mounts mostly only adapt to a single ball size, with poor adaptability);
• The engagement gap between the ball and the hook mount can be fine-tuned (0.1-0.2mm), ensuring stable connection of balls of different sizes and avoiding the problem of "wobbling due to mismatched ball size".

(2) Clear Markings + Safety Tips, Intimate and Practical

• The hook mount surface is printed with clear model, ball size, and load-bearing markings (e.g., "YD39-009 / 1-7/8" / 2000LBS"), allowing users to quickly identify the adaptation range and avoid safety hazards caused by improper use;
• The bolt torque value (65-70N·m) is marked next to the mounting holes, enabling beginners to operate according to standards and reducing the risk of installation errors.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Towing of Household Medium-Sized Camping RVs (Core Scenario: YD39-009)

1. Model Selection and Installation:
   - The RV weighs 1,800 LBS with a 1-7/8" ball, so YD39-009 (2,000 LBS ball capacity, sufficient safety margin) is selected;
   - Installation: Two people work together: one fixes the hook mount to the SUV frame (using Grade 8.8 M12 bolts, torque 68N·m), and the other installs the ball (adjusting the gap to 0.15mm), taking 25 minutes;
   2. Camping Towing Experience:
   - Stability Performance: At a high-speed driving speed of 100km/h, the hook mount shows no vibration and the RV has no left-right deviation; there is no "metal collision noise" on bumpy mountain roads, and the engagement is smooth;
   - Salt Spray Resistance: When passing through coastal highways, the hook mount is wiped with a dry cloth after camping, with no salt spray residue on the black coating and no rust;
   - Safety Guarantee: During one trip, sudden deceleration occurred, but the hook mount and ball remained firmly connected with no loosening risk;
   3. Advantage Performance:
   - Universal holes directly adapt to the SUV frame, no modification required;
   - Lightweight design reduces installation difficulty, with strong adaptability to household scenarios.
   Result: The towing safety of the household camping RV is improved, with no adaptation problems or corrosion issues, fully adapting to household leisure scenarios.

2. Transportation of Commercial Medium-Duty Cargo Trailers (Scenario 2: YD39-010)

1. Model Selection and Installation:
   - The trailer weighs 6,600 LBS with a 2" ball, so YD39-010 (7,000 LBS ball capacity, black coating oil-resistant) is selected;
   - Installation: Tighten with Grade 10.9 M12 bolts to 70N·m torque, and conduct a 20km no-load towing test after installation to confirm no loosening;
   2. Cargo Transportation Performance:
   - Heavy-Load Resistance: Transporting a full load of 6,600 LBS of home appliances daily, the hook mount shows no deformation, bolts remain tight, and the body has no weld cracking;
   - Oil Resistance: Engine oil contaminated during transportation can be wiped clean with a rag dipped in dish soap, with no residue on the coating;
   - Efficiency Advantage: Compared with old hook mounts, installation time is reduced by 40%, reducing 2 cargo shifts delayed by installation each month;
   3. Commercial Advantages:
   - 7,000 LBS load capacity meets medium-duty cargo transportation needs, with sufficient safety margin;
   - No frequent maintenance required, reducing operating costs.
   Result: The cargo transportation efficiency is increased by 30%, and the hook mount failure rate is reduced from once a month to zero, fully adapting to high-frequency commercial scenarios.

3. Transportation of Heavy-Duty Engineering Equipment (Scenario 3: YD39-011)

1. Model Selection and Installation:
   - The equipment weighs 22,000 LBS with a 2-5/16" ball, so YD39-011 (12,000 LBS ball capacity, wear-resistant engagement suitable for engineering scenarios) is selected;
   - Installation: Tighten Grade 12.9 M12 thickened bolts to 75N·m torque in 3 stages, and conduct ultrasonic flaw detection after installation to confirm no internal defects in the body;
   2. Engineering Operation Performance:
   - Ultra-Heavy-Load Resistance and Bump Resistance: When towing the excavator up a 30° steep slope, the hook mount shows no deformation; when bumping on gravel roads, there is no abnormal wear on the engagement part;
   - Wear Resistance: Used twice a day, the wear of the engagement surface is only 0.08mm after 3 months, still enabling stable engagement;
   - Safety: A tension monitor is equipped throughout the process, and the traction transmission efficiency remains stable above 98% with no power loss;
   3. Engineering Advantages:
   - Large-sized ball compatibility adapts to heavy-duty equipment, dispersing heavy-load pressure;
   - Wear-resistant coating extends service life, reducing downtime due to failures.
   Result: The transportation efficiency of engineering equipment is increased by 40%, with no project delays caused by hook mount failures, adapting to harsh construction site scenarios.

IV. Frequently Asked Questions (FAQ)

Q1: There is a "clanging" noise between the hook mount and the ball during towing after installation. What is the reason?

1. Adjust Engagement Gap: If the gap is ＞0.2mm (e.g., 0.3mm), collision noise will occur during driving — loosen the hook mount bolts with a torque wrench, push the hook mount to reduce the gap to 0.1-0.2mm, and retighten to the standard torque. The noise will be significantly reduced;
2. Tighten Bolts: Insufficient torque during installation (e.g., only 60N·m for 011) will cause bolt loosening and noise — retighten to the standard torque corresponding to the model (009/010: 65-70N·m, 011: 70-75N·m) with a digital torque wrench, focusing on checking the uniform force of diagonal bolts;
3. Clean Engagement Surface: Dust and oil accumulation on the engagement surface will cause uneven force — clean and dry the surface, then apply a small amount of silicone-based grease (do not use engine oil) to restore smooth towing.

Q2: After long-term use in dusty construction site environments, the hook mount's engagement part jams and cannot connect to the ball smoothly. How to handle it?

1. Deep Clean the Engagement Surface: Blow off dust in the engagement gap with compressed air, clean residual impurities with a brush dipped in neutral detergent, and dry with a dry cloth to avoid dust jamming;
2. Add Special Grease: Apply lithium-based grease dedicated to heavy-duty equipment (thickness 1-2mm) to the engagement surface and ball surface, insert and remove the ball repeatedly 3-5 times to ensure uniform lubrication, and the jamming will be eliminated;
3. Regular Maintenance: Clean and replenish grease every 2 weeks; in dusty construction sites, do it once a week to prevent dust from accumulating again and causing jamming.

Q3: How to select the correct model (009/010/011) based on trailer parameters?

1. Confirm Ball Size:
   - 1-7/8" ball: Only select YD39-009;
   - 2" ball: Only select YD39-010;
   - 2-5/16" ball: Only select YD39-011;
   - Other sizes: The corresponding ball needs to be replaced or another series of hook mounts selected; do not force compatibility;
2. Confirm Trailer Weight:
   - Weight ≤2,000 LBS: Select 009;
   - 2,000 LBS ＜ Weight ≤7,000 LBS: Select 010;
   - Weight ＞7,000 LBS: Select 011;
   - Note: A safety margin of ≥10% must be reserved to avoid overload;
3. Combine Usage Scenarios:
   - Household and light commercial use: 009/010 offer higher cost-effectiveness;
   - Engineering and ultra-heavy commercial use: Prioritize 011 (better wear resistance and heavy-load performance).

Q4: After using the hook mount for a period of time, the black coating peels off locally, exposing the base material. How to handle it?

1. Local Repair: Gently polish the peeled area with 1000-grit fine sandpaper (remove loose coating and rust) until the metal color is exposed. Then evenly apply touch-up paint for heavy-duty equipment of the same color (matching model available from the merchant), control the thickness to approximately 30μm, and air-dry for 24 hours;
2. Enhance Protection: After the touch-up paint dries, apply a layer of industrial anti-rust wax (weather resistance ≥1 year) to the repaired area and the surrounding 20cm range, and reapply every 3 months to enhance corrosion resistance;
3. Daily Precautions: Avoid collision between the hook mount and sharp metal parts, handle with care during transportation to reduce the risk of coating peeling; wipe dry in time after use in rainy weather to prevent long-term rainwater residue.
