ISO 18752 MatrixFlex 5K Constant Working Pressure Hose
ISO 18752 MatrixFlex 5K Constant Working Pressure Hose
ISO 18752 MatrixFlex 5K Constant Working Pressure Hose
ISO 18752 MatrixFlex 5K Constant Working Pressure Hose
ISO 18752 MatrixFlex 5K Constant Working Pressure Hose
ISO 18752 MatrixFlex 5K Constant Working Pressure Hose
ISO 18752 MatrixFlex 5K Constant Working Pressure Hose
ISO 18752 MatrixFlex 5K Constant Working Pressure Hose
ISO 18752 MatrixFlex 5K Constant Working Pressure Hose
ISO 18752 MatrixFlex 5K Constant Working Pressure Hose
Specifications
Model Number :
ISO 18752 MatrixFlex 5K
Working Pressure :
5000 PSI / 350 Bar
Brand Name :
DME&JDE
Impulse times :
Type AC – Impulse pressure 133%, Temperature 100 °C ≥ 200,000 Times; Type CC – Impulse pressure 133% (4K), Temperature 120 °C ≥ 500,000 Times
MOQ :
500M (MOQ)
Delivery Time :
30days
Fittings :
According to the following table. Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
Price :
US$ 1-50

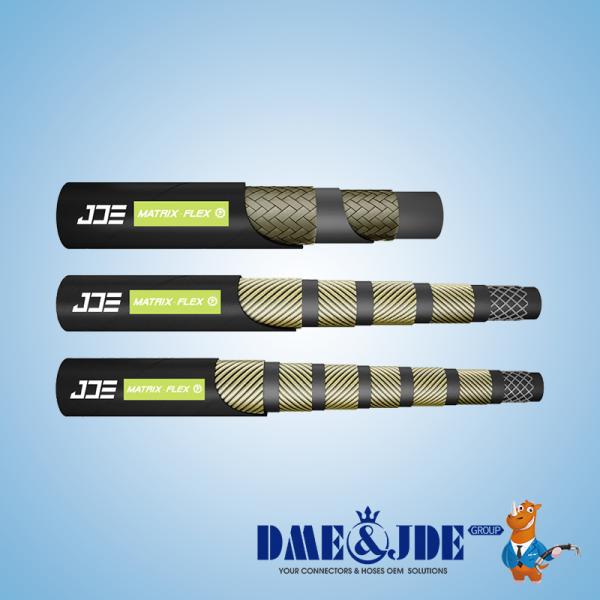

Internal hose :
Synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement :
2 layer of high strength steel wire braid or 4 or 6 layers of steel wire spiral.
Temperature :
-40 °C to +120 °C (intermittent 121 °C) -40 °C to +70 °C for water based fluids 0 °C to +70 °C hot air Prolonged operation at extreme temperatures will reduce hoses life
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Payment Terms :
T/T
Applicable Specs :
ISO 18752 1AC/2AC/4CC
Covering :
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Product name :
ISO 18752 MatrixFlex 5K Constant Working Pressure Hose
Place of Origin :
Hengshui City, Hebei Province, China
Media :
Suitable for liquids (HL, HLP, HLPD, HVLP) in mineral oil and synthetic oil MatrixFlex-rices, water based emulsifiers (HFAE, HFAS, HFB) and water glycol solvents (HFC), as well as lubricants for vegetable oil and minerals. Not suitable for chlorinated carb
Packaging Details :
Roll Pallet Reel
Description

ISO 18752 MatrixFlex 5K Constant Working Pressure Hose


Applicable Specs:

■ ISO 18752 1AC/2AC/4CC

ISO 18752 MatrixFlex 5K Constant Working Pressure Hose

Applications:

ISO 18752 MatrixFlex 5K Constant Working Pressure Hose



ISO 18752 MatrixFlex 5K Constant Working Pressure Hose

Hydraulic Hose specification

Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight ISO 18752 Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m Type DMECode
MatrixFlex-5K-06 -04 6.4 1/4" 6.1-6.9 11.3 13.2 350 5000 1400 20000 75 0.29 2AC DPF2T-04
MatrixFlex-5K-08 -05 8.0 5/16" 7.7-8.5 13.1 14.7 350 5000 1400 20000 85 0.33 2AC DPF2T-05
MatrixFlex-5K-10 -06 9.5 3/8" 9.3-10.1 15.3 17.0 350 5000 1400 20000 90 0.42 2AC DPF2T-06
MatrixFlex-5K-12 -08 12.7 1/2" 12.3-13.5 18.5 20.7 350 5000 1400 20000 130 0.55 2AC DPF2T-08
MatrixFlex-5K-16 -10 16.0 5/8" 15.5-16.7 23.8 26.8 350 5000 1400 20000 250 0.98 4CC DPF2T-10
MatrixFlex-5K-19 -12 19.0 3/4" 18.6-19.8 28.1 31.1 350 5000 1400 20000 300 1.45 4CC DPF13-12
MatrixFlex-5K-25 -16 25.4 1" 25.0-26.4 35.5 38.5 350 5000 1400 20000 340 2.20 4CC DPFR13-16
MatrixFlex-5K-32 -20 31.8 1-1/4" 31.4-33.0 47.2 50.8 350 5000 1400 20000 420 3.06 4CC DPFR13-20
MatrixFlex-5K-38 -24 38.1 1-1/2" 37.7-39.3 54.1 57.5 350 5000 1400 20000 560 3.65 6CC DPFR13-24
MatrixFlex-5K-51 -32 50.8 2" 50.4-52.0 67.4 71.4 350 5000 1400 20000 640 4.85 6CC DPFR13-32

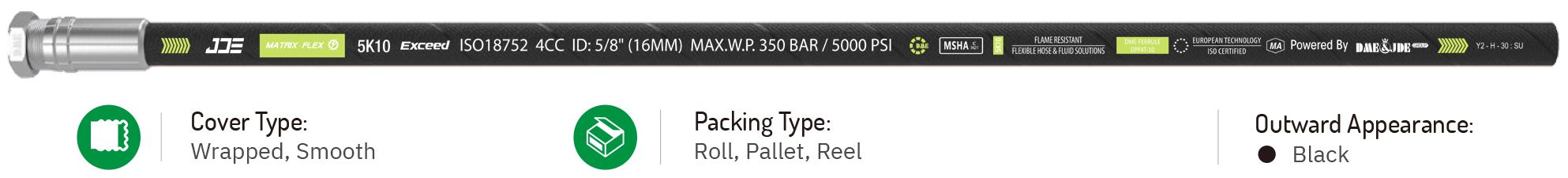

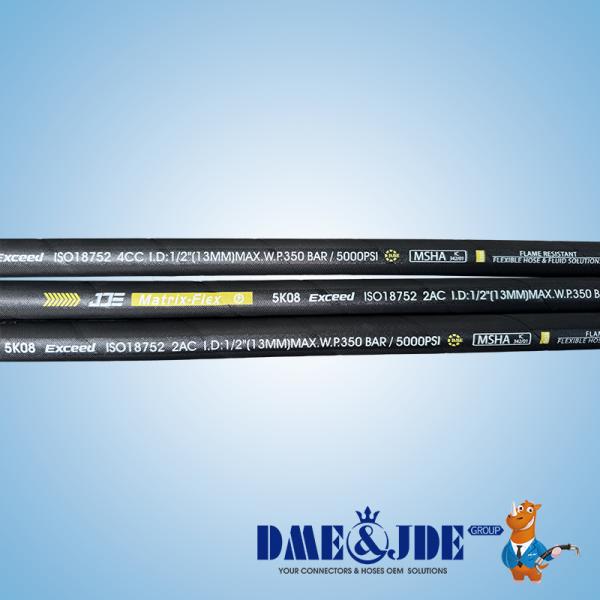

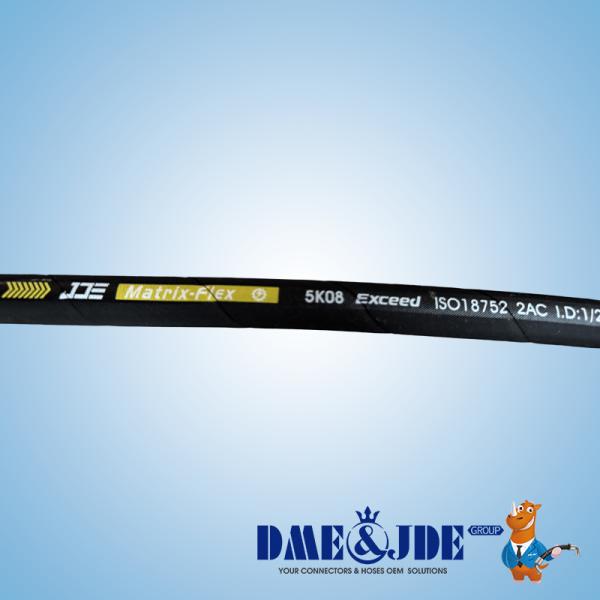

Marking / Layline (Printing, Ink)

ISO 18752 MatrixFlex 5K Constant Working Pressure Hose

ISO 18752 MatrixFlex 5K Constant Working Pressure Hose

Quality Control

ISO 18752 MatrixFlex 5K Constant Working Pressure Hose

Certificate


ISO 18752 MatrixFlex 5K Constant Working Pressure Hose


Related Product

ISO 18752 MatrixFlex 5K Constant Working Pressure Hose


FAQ

1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping cost is on buyer's side.


2. Q: How do you guarantee your quality and what after-sale service do you have?
A: Our factory follow the quality standard in every produce process. Any quality problem within 12 months after purchase, we are responsible for it.


3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.


4. Q: What is your terms of price?

A: EXW, FOB, CFR, CIF, DDU.


5. Q : How do you make our business long-term and good relationship?
A: Build Trust: Trust is the foundation of any long-term relationship. To establish trust, we need to be transparent in our dealings with customers and provide consistent and reliable services.
Listen to Customers: Listen carefully to customers' feedback, understand their needs, and customize solutions according to their requirements.
Communicate: Maintain regular and open communication with customers, keeping them informed about updates, new products, and services.
Reward Loyalty: We value our loyal customers and reward their business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service is top-notch, responding promptly to inquiries and complaints, and going above and beyond to provide exceptional service that exceeds customers' expectations.


6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our production capacity.


7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your convenient time.
