Specifications
Brand Name :
DME&JDE
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
500M (MOQ)
Price :
US$ 1-50
Payment Terms :
T/T
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Delivery Time :
30days
Packaging Details :
Roll Pallet Reel
Model Number :
SAE J517 R13
Product name :
SAE J517 R13 Standard Hose Wire Spiral Hydraulic Hose
Keyword :
Standard Hose
Reinforcement Structure :
4-layer steel wire spiral
Outer Cover Material :
Abrasion-resistant synthetic rubber
Ferrule Type :
No-skive DPFR13
Certifications :
U.S. MSHA, CHN MA Approval
Working Temperature :
-40°C~+120°C (125°C intermittent)
Impulse Times :
≥ 500,000
Description

SAE J517 R13 Standard Hose Wire Spiral Hydraulic Hose

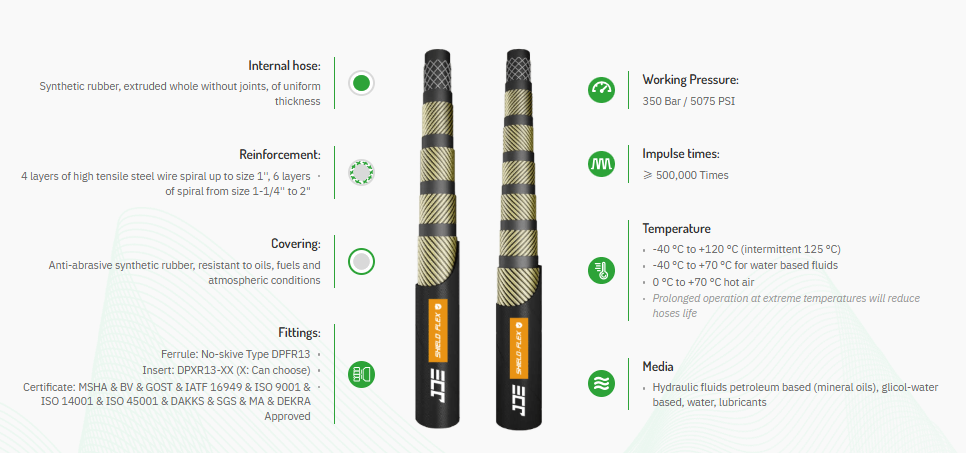

Hydraulic Hose Product Introduction

The internal hose is made of synthetic rubber, extruded integrally without joints and with uniform thickness; its reinforcement structure consists of 4 layers of high tensile steel wire spiral for sizes up to 1'', and 6 layers of spiral for sizes from 1-1/4'' to 2''. The outer covering is anti-abrasive synthetic rubber that is resistant to oils, fuels and atmospheric conditions. For fittings, it adopts no-skive Type DPFR13 ferrule and DPXR13-XX insert (X is selectable), and is approved by multiple certifications including MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA and DEKRA. Its working pressure is 350 Bar (5075 PSI), and the impulse times are no less than 500,000. The working temperature ranges from -40 °C to +120 °C (intermittently up to 125 °C), -40 °C to +70 °C for water-based fluids, and 0 °C to +70 °C for hot air, noting that prolonged operation at extreme temperatures will reduce the hose’s service life. It is suitable for petroleum-based hydraulic fluids (mineral oils), glycol-water based fluids, water and lubricants.
4 Layer Steel Standard Hose Wire Spiral Hydraulic Hose SAE J517 R13

Hydraulic Hose specification

Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
JDE 311113-19 -12 19.0 3/4'' 18.6-19.8 28.2-29.8 31.0-33.2 350 5075 1400 20300 240 1.450 20/40 DPFR13-12
JDE 311113-25 -16 25.4 1'' 25.0-26.4 34.9-36.4 37.6-39.8 350 5075 1400 20300 300 2.050 20/40 DPFR13-16
JDE 311113-32 -20 31.8 1-1/4'' 31.4-33.0 45.6-48.0 48.3-51.3 350 5075 1400 20300 420 3.060 20/40 DPFR13-20
JDE 311113-38 -24 38.1 1-1/2'' 37.7-39.3 53.1-55.5 55.8-58.8 350 5075 1400 20300 500 3.650 20/40 DPFR13-24
JDE 311113-51 -32 50.8 2'' 50.4-52.0 66.9-69.3 69.5-72.7 350 5075 1400 20300 640 4.850 20/40 DPFR13-32

Hydraulic Hose Advantages

1. High-quality Structure: Internal hose is synthetic rubber (integral extrusion, no joints, uniform thickness); reinforcement is 4-layer high tensile steel wire spiral (≤1'') and 6-layer spiral (1-1/4''–2''), with abrasion/oil/fuel/atmosphere-resistant outer cover, durable and stable.

2. Easy Installation: No-skive DPFR13 ferrule and optional DPXR13-XX insert, adaptable and simple to assemble.

3. Comprehensive Certifications: Approved by MSHA, BV, GOST, IATF 16949, ISO series, DAKKS, SGS, MA, DEKRA, compliant with global standards.

4. Excellent Performance: Working pressure up to 350 Bar (5075 PSI), impulse times ≥500,000, with wide temperature adaptability for diverse environments.

5. Versatile Media: Suitable for petroleum-based (mineral oils), glycol-water based fluids, water and lubricants, fitting various hydraulic systems.
