SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose 4 Layer
SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose 4 Layer
SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose 4 Layer
SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose 4 Layer
SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose 4 Layer
SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose 4 Layer
SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose 4 Layer
SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose 4 Layer
Specifications
Brand Name :
DME&JDE
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
500M (MOQ)
Price :
US$ 1-50
Payment Terms :
T/T
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Delivery Time :
30days
Packaging Details :
Roll Pallet Reel
Model Number :
SAE J517 R12
Product name :
Hydraulic Hose
keyword :
standard hose
Reinforcement Structure :
4-layer steel wire spiral
Outer Cover Material :
Abrasion-resistant synthetic rubber
Applicable Media :
Petroleum
Certifications :
U.S. MSHA, CHN MA Approval
Working Pressure :
172–276 Bar / 2494–4002 PSI
Impulse Times :
≥ 500,000
Description

SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose

Hydraulic Hose Product Introduction

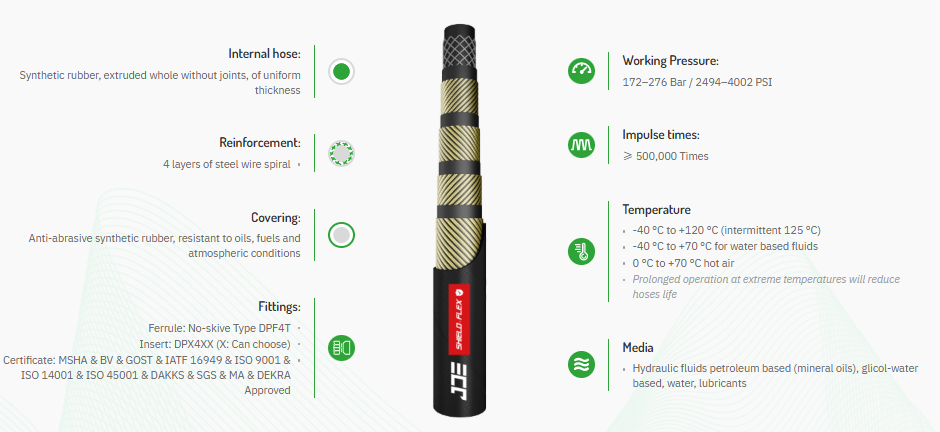

The internal hose is made of synthetic rubber, extruded integrally without joints and with uniform thickness; its reinforcement structure is 4 layers of steel wire spiral, and the outer covering is anti-abrasive synthetic rubber that resists oils, fuels and atmospheric conditions. For fittings, it adopts no-skive Type DPF4T ferrule and DPX4XX insert (X is selectable). This hose is approved by multiple certifications including MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA and DEKRA. Its working pressure ranges from 172 to 276 Bar (2494 to 4002 PSI), and the impulse times are no less than 500,000. The working temperature is -40 °C to +120 °C (intermittently up to 125 °C), -40 °C to +70 °C for water-based fluids, and 0 °C to +70 °C for hot air, with prolonged operation at extreme temperatures reducing the hose’s service life. It is suitable for petroleum-based hydraulic fluids (mineral oils), glycol-water based fluids, water and lubricants.
SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose 4 Layer

Hydraulic Hose specification

Part Number Hose Size I.D. Braid O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
JDE 311112-10 -06 9.5 3/8" 9.3-10.1 16.6-17.8 19.5-21.0 280 4060 1120 16240 125 0.700 20/40 DPF4T-06
JDE 311112-12 -08 12.7 1/2" 12.3-13.5 19.9-21.5 23.0-24.6 280 4060 1120 16240 180 0.800 20/40 DPF4T-08
JDE 311112-16 -10 16.0 5/8" 15.5-16.7 23.8-25.4 26.6-28.8 280 4060 1120 16240 200 0.975 20/40 DPF4T-10
JDE 311112-19 -12 19.0 3/4" 18.6-19.8 26.9-28.4 29.9-31.5 280 4060 1120 16240 240 1.450 20/40 DPF4T-12
JDE 311112-25 -16 25.4 1" 25.0-26.4 34.1-35.7 36.8-39.2 280 4060 1120 16240 300 2.050 20/40 DPF4T-16
JDE 311112-32 -20 31.8 1-1/4" 31.4-33.0 42.7-45.1 45.4-48.6 210 3045 840 12180 420 3.060 20/40 DPF4T-20
JDE 311112-38 -24 38.1 1-1/2" 37.7-39.3 49.2-51.6 51.9-55.0 175 2538 700 10150 500 3.650 20/40 DPF4T-24
JDE 311112-51 -32 50.8 2" 50.4-52.0 62.5-64.8 65.1-68.3 175 2538 700 10150 630 4.850 20/40 DPF4T-32

Hydraulic Hose Advantages

1. High-quality Structure: The internal hose is made of synthetic rubber, extruded integrally without joints and with uniform thickness, ensuring good tightness and stability; reinforced by 4 layers of steel wire spiral for strong pressure-bearing capacity, and the outer covering is anti-abrasive synthetic rubber that resists oils, fuels and atmospheric conditions, extending service life.

2. Convenient Installation & High Adaptability: Equipped with no-skive Type DPF4T ferrule and DPX4XX insert (X is selectable), simplifying installation and adapting to different application needs.

3. Comprehensive & Authoritative Certifications: Approved by MSHA, BV, GOST, IATF 16949, ISO series and other certifications, meeting quality and safety standards of various regions.

4. Excellent Working Performance: Working pressure ranges from 172–276 Bar, impulse times ≥ 500,000; wide temperature adaptation range, suitable for normal, low-temperature, high-temperature and hot air environments, adapting to different media temperature requirements.

5. Versatile Media Compatibility: Suitable for petroleum-based (mineral oils), glycol-water based fluids, water and lubricants, covering various hydraulic system application scenarios.

Quality Control

SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose 4 Layer

Certificate

SAE J517 R12 Standard Hose Wire Spiral Hydraulic Hose 4 Layer
