BS EN 853 1ST Steel Wire Braided Hydraulic Hose Standard 1 Layer
BS EN 853 1ST Steel Wire Braided Hydraulic Hose Standard 1 Layer
BS EN 853 1ST Steel Wire Braided Hydraulic Hose Standard 1 Layer
BS EN 853 1ST Steel Wire Braided Hydraulic Hose Standard 1 Layer
BS EN 853 1ST Steel Wire Braided Hydraulic Hose Standard 1 Layer
BS EN 853 1ST Steel Wire Braided Hydraulic Hose Standard 1 Layer
BS EN 853 1ST Steel Wire Braided Hydraulic Hose Standard 1 Layer
BS EN 853 1ST Steel Wire Braided Hydraulic Hose Standard 1 Layer
Specifications
Brand Name :
DME&JDE
Model Number :
EN 853 1ST
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
500M (MOQ)
Price :
US$ 1-50
Payment Terms :
T/T
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Delivery Time :
30days
Packaging Details :
Roll Pallet Reel
Product name :
BS EN 853 1ST Wire Braided Hydraulic Hose
Keyword :
Standard Hose
Reinforcement :
1 layer of steel wire braid
Covering :
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Ferrule :
No-skive Type DPF2T
Certificate :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
Impulse Times :
≥ 150,000 Times
Working Pressure :
40–250 Bar / 580–3625 PS
Description

BS EN 853 1ST Wire Braided Hydraulic Hose Standard Hose

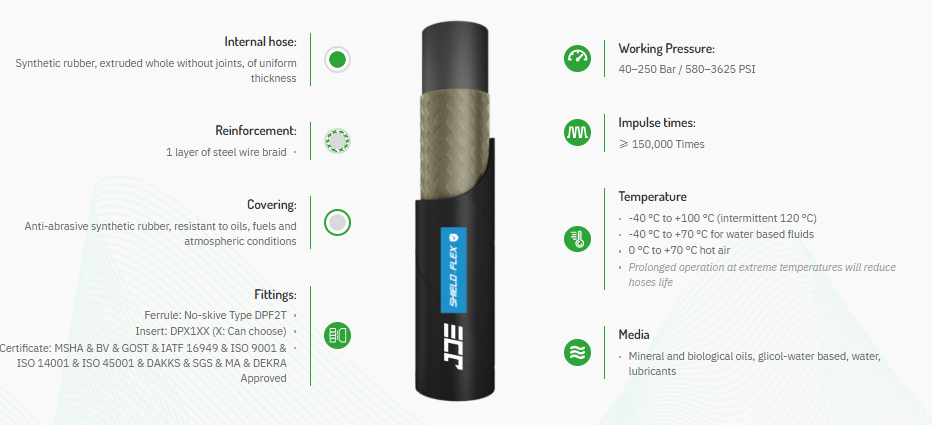

Hydraulic Hose Product Introduction

Internal hose is made of synthetic rubber, extruded whole without joints and of uniform thickness. The reinforcement adopts 1 layer of steel wire braid, and the covering is anti-abrasive synthetic rubber with resistance to oils, fuels and atmospheric conditions. For fittings, the ferrule is No-skive Type DPF2T and the insert is DPX1XX (X can be chosen). The product is approved with MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA and DEKRA certificates. Working pressure is 40–250 Bar / 580–3625 PSI, with impulse times ≥ 150,000 times. The operating temperature ranges from -40 °C to +100 °C (intermittent 120 °C), -40 °C to +70 °C for water based fluids, and 0 °C to +70 °C for hot air; prolonged operation at extreme temperatures will reduce the hose life. Suitable media include mineral and biological oils, glycol-water based fluids, water and lubricants.
BS EN 853 1ST Steel Wire Braided Hydraulic Hose Standard 1 Layer

Hydraulic Hose specification

Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
JDE 211111-05 -03 4.8 3/16'' 4.6-5.4 9.0-10.0 11.9-13.5 250 3625 1000 14500 90 0.240 50/100 DPF2T-03
JDE 211111-06 -04 6.4 1/4'' 6.2-7.0 10.6-11.6 15.1-16.7 225 3262.5 900 13050 100 0.255 50/100 DPF2T-04
JDE 211111-08 -05 8.0 5/16'' 7.7-8.5 12.1-13.3 16.7-18.3 215 3117.5 860 12470 115 0.304 50/100 DPF2T-05
JDE 211111-10 -06 9.5 3/8'' 9.3-10.1 14.5-15.7 19.0-20.6 180 2610 720 10440 130 0.390 50/100 DPF2T-06
JDE 211111-12 -08 12.7 1/2'' 12.3-13.5 17.5-19.1 22.2-23.8 160 2320 640 9280 180 0.472 50/100 DPF2T-08
JDE 211111-16 -10 16.0 5/8'' 15.5-16.7 20.6-22.2 25.4-27.0 130 1885 520 7540 200 0.581 50/100 DPF2T-10
JDE 211111-19 -12 19.0 3/4'' 18.6-19.8 24.6-26.2 29.4-31.0 105 1522.5 420 6090 240 0.690 50/100 DPF2T-12
JDE 211111-25 -16 25.4 1'' 25.0-26.4 32.5-34.1 37.1-39.1 88 1276 352 5104 300 0.830 50/100 DPF2T-16
JDE 211111-32 -20 31.8 1-1/4'' 31.4-33.0 39.3-41.7 44.4-47.6 63 913.5 252 3654 420 1.325 20/40 DPF2T-20
JDE 211111-38 -24 38.1 1-1/2'' 37.7-39.3 45.6-48.0 50.8-54.0 50 725 200 2900 500 1.500 20/40 DPF2T-24
JDE 211111-51 -32 50.8 2'' 50.4-52.0 58.7-61.7 65.1-68.3 40 580 160 2320 630 1.875 20/40 DPF2T-32

BS EN 853 1ST Wire Braided Hydraulic Hose Advantages

1.The inner tube is made of synthetic rubber, integrally extruded without joints, ensuring uniform thickness and excellent sealing performance.
2.Equipped with 1 layer of steel wire braid reinforcement, providing stable burst pressure and strong resistance to deformation.
3.Outer cover adopts anti-abrasive synthetic rubber, with good resistance to oils, fuels and atmospheric conditions, suitable for harsh working environments.
4.Wide working pressure range (40–250 Bar / 580–3625 PSI) and long service life with impulse times ≥ 150,000 times.
5.Wide operating temperature range from -40 °C to +100 °C, compatible with various media including mineral oils, water-based fluids and lubricants.
6.Fitted with No-skive ferrule DPF2T and insert DPX1XX (customizable), easy to assemble and reliable in connection.
7.Fully certified with MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA and DEKRA, meeting international quality standards.
