EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems
EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems
EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems
EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems
EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems
EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems
EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems
EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems
EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems
EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems
Specifications
Brand Name :
DME JDE
Model Number :
3/16''~2''
Certification :
Msha BV GOST Ma Dekra IATF 16949 Dakks
Place of Origin :
china
MOQ :
500Meters
Price :
0.88~5.5USD
Payment Terms :
T/T
Supply Ability :
8000M/Day
Delivery Time :
30Days
Packaging Details :
Roll, Pallet, Reel
Product Name :
Standard Hose
Key Word :
Hydraulic Hose
Material :
Rubber
Outward Appearance: :
Black
Fittings :
No-skive Type
Media :
Mineral and Biological Oils, Glicol-Water Based,water,lubricants
Impulse Times :
150,000 Times
Transport Package :
Roll, Pallet, Reel
Cover Type :
Wrapped
Origin :
China
Trademark :
JDE
Description

EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems

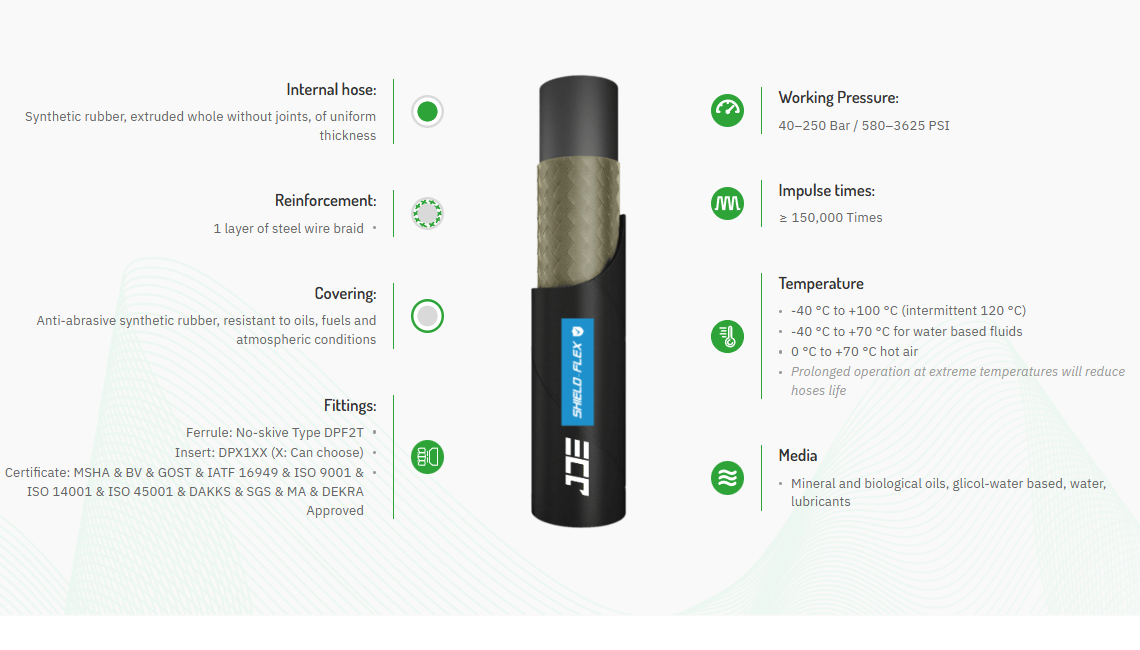

Standard Hose Product Name

Internal hose: synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement: 1 layer of steel wire braid
Cover: Abrasion-resistant synthetic rubber (resists oils, fuels & atmospheric conditions)
Working pressure: 40–250 Bar / 580–3625 PSI
Impulse cycles: ≥150,000 times
Temperature: -40℃ to +100℃ (intermittent 120℃)

EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems

Standard Hose Specification

Part Number

Hose Size

I.D.

Braid

O.D.

Operating Pressure

Burst Pressure

Bend Radius

Weight

Length Per PCS

Ferrule

I.D.

Dash Size

mm

inch

mm

mm

mm

bar

psi

bar

psi

mm

kgs/m

meter

DME Code

JDE 211101-5

-03

4.8

3/16''

4.6-5.4

9.0-10.0

12.5 MAX.

250

3625

1000

14500

90

0.240

50/100

DPF2T-03

JDE 211101-6

-04

6.4

1/4''

6.2-7.0

10.6-11.6

14.1 MAX.

225

3262.5

900

13050

100

0.255

50/100

DPF2T-04

JDE 211101-8

-05

8.0

5/16''

7.7-8.5

12.1-13.3

15.7 MAX.

215

3117.5

860

12470

115

0.304

50/100

DPF2T-05

JDE 211101-10

-06

9.5

3/8''

9.3-10.1

14.5-15.7

18.1 MAX.

180

2610

720

10440

130

0.390

50/100

DPF2T-06

JDE 211101-12

-08

12.7

1/2''

12.3-13.5

17.5-19.1

21.4 MAX.

160

2320

640

9280

180

0.472

50/100

DPF2T-08

JDE 211101-16

-10

16.0

5/8''

15.5-16.7

20.6-22.2

24.5 MAX.

130

1885

520

7540

200

0.581

50/100

DPF2T-10

JDE 211101-19

-12

19.0

3/4''

18.6-19.8

24.6-26.2

28.5 MAX.

105

1522.5

420

6090

240

0.690

50/100

DPF2T-12

JDE 211101-25

-16

25.4

1''

25.0-26.4

32.5-34.1

36.6 MAX.

88

1276

352

5104

300

0.830

50/100

DPF2T-16

JDE 211101-32

-20

31.8

1-1/4''

31.4-33.0

39.3-41.7

44.8 MAX.

63

913.5

252

3654

420

1.325

20/40

DPF2T-20

JDE 211101-38

-24

38.1

1-1/2''

37.7-39.3

45.6-48.0

52.1 MAX.

50

725

200

2900

500

1.500

20/40

DPF2T-24

JDE 211101-51

-32

50.8

2''

50.4-52.0

58.7-61.7

65.5 MAX.

40

580

160

2320

630

1.875

20/40

DPF2T-32

Standard Hose Advantage

  • Ease & Compliance: No-skive fittings (quick assembly) + global certifications (MSHA, ISO, etc.).
  • Versatility: Works with oils, water-based fluids & lubricants—ideal for construction/manufacturing.

Quality Control

EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems

Certificate

EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems

Related Product

EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems

Material Support

EN853 1SN Standard Hose Wrapped Cover For Hydraulic Systems

FAQ

1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping cost is on buyer's side.

2. Q: How do you guarantee your quality and what after-sale service do you have?
A: Our factory follow the quality standard in every produce process. Any quality problem within 12 months after purchase, we are responsible for it.

3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.

4. Q: What is your terms of price?
A: EXW, FOB, CFR, CIF, DDU.

5. Q : How do you make our business long-term and good relationship?
A: Build Trust: Trust is the foundation of any long-term relationship. To establish trust, we need to be transparent in our dealings with customers and provide consistent and reliable services.
Listen to Customers: Listen carefully to customers' feedback, understand their needs, and customize solutions according to their requirements.
Communicate: Maintain regular and open communication with customers, keeping them informed about updates, new products, and services.
Reward Loyalty: We value our loyal customers and reward their business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service is top-notch, responding promptly to inquiries and complaints, and going above and beyond to provide exceptional service that exceeds customers' expectations.

6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our
production capacity.

7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your convenient time.
