2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type
2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type
2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type
2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type
2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type
2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type
2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type
2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type
Specifications
Brand Name :
DME&JDE
Model Number :
Super Pressure 2SC+ Fluid Hose
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
200(MOQ)
Price :
US$1-50
Payment Terms :
T/T
Supply Ability :
200（MOQ）USD$1-50
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
Product Name :
Super Pressure 2SC+ Fluid Hose
keyword :
OEM Hose
Core Feature :
Double wire braid, ultra-high pressure, high impulse resistance, anti-abrasive
Internal Hose Material :
Synthetic rubber, extruded whole without joints, uniform thickness
Working Pressure :
110–209 Bar / 1595–4205 PSI
Impulse Resistance :
≥ 400,000 Times
Ferrule Type :
No-skive Type DPF2T
Certifications :
MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA, DEKRA Approved
Description

Super Pressure 2SC+ Double Wire Braided Hydraulic Fluid Hose

Fluid Hose product introduction

The Super Pressure 2SC+ Wire Braided Fluid Hose is a high-performance hydraulic hose from JDE's Exact Flex series, engineered with German technology for extreme-pressure industrial applications.

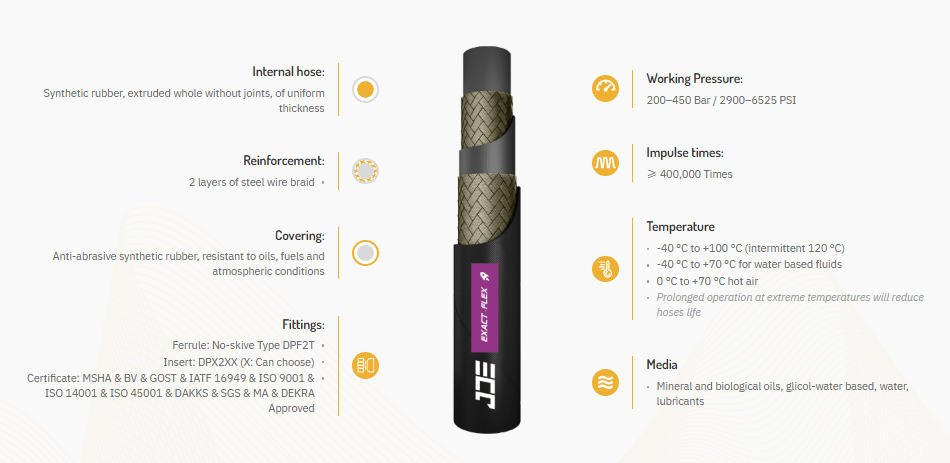

It features a seamless extruded synthetic rubber inner tube, two layers of high-tensile steel wire braid reinforcement, and an anti-abrasive synthetic rubber cover. Designed for ultra-high impulse resistance and extreme pressure performance, it delivers exceptional durability, safety, and reliability in heavy-duty hydraulic and fluid transmission systems across multiple industries, and exceeds the performance of standard DIN EN 857 2SC and DIN EN 853 2SN hoses.

2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type

Fluid Hose specification

Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
EXA 211162-06 -04 6.4 1/4'' 6.1-6.9 11.4 13.4 450 6525 1800 26100 75 0.290 50/100 DPF2T-04
EXA 211162-08 -05 8.0 5/16'' 7.7-8.5 13.0 15.0 420 6090 1680 24360 85 0.330 50/100 DPF2T-05
EXA 211162-10 -06 9.5 3/8'' 9.3-10.1 14.9 17.0 385 5582.5 1540 22330 90 0.420 50/100 DPF2T-06
EXA 211162-12 -08 12.7 1/2'' 12.3-13.5 18.7 20.7 345 5002.5 1380 20010 130 0.550 50/100 DPF2T-08
EXA 211162-16 -10 16.0 5/8'' 15.5-16.7 21.9 23.6 290 4205 1160 16820 150 0.650 50/100 DPF2T-10
EXA 211162-19 -12 19.0 3/4'' 18.6-19.8 25.7 27.7 280 4060 1120 16240 180 0.790 50/100 DPF2T-12
EXA 211162-25 -16 25.4 1'' 25.0-26.4 32.9 35.6 200 2900 800 11600 230 1.180 50/100 DPF2T-16

Fluid Hose Application

Heavy-Duty Construction Machinery: Excavators, loaders, cranes, bulldozers and other high-pressure hydraulic systems.
Mining & Underground Equipment: Mining machinery, hydraulic supports, and underground high-pressure fluid transmission systems.
Oil & Gas Industry: Oilfield hydraulic equipment, wellhead control systems, and high-pressure pipeline transmission.
Industrial Hydraulic Systems: High-pressure hydraulic power units, heavy-duty machine tools, presses, and industrial automation equipment.
Marine & Offshore Engineering: Ship hydraulic systems, offshore rigs, and marine high-pressure fluid lines.
Agricultural Machinery: Large tractors, harvesters, and heavy-duty agricultural hydraulic implements.
Material Handling Equipment: Heavy-duty forklifts, lift trucks, and warehouse logistics machinery.
Automotive & Heavy-Duty Vehicles: Commercial vehicle hydraulic systems, heavy-duty brake lines, and power steering hoses.

Quality Control

2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type

Certificate

2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type

Related Product

2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type

Material Support

2SC+ Double Wire Braided Fluid Custom Hydraulic Hoses No Skive Type
