High Pressure Hydraulic Rubber Hose SAE R19 Wire Braided Fluid Hose
High Pressure Hydraulic Rubber Hose SAE R19 Wire Braided Fluid Hose
High Pressure Hydraulic Rubber Hose SAE R19 Wire Braided Fluid Hose
High Pressure Hydraulic Rubber Hose SAE R19 Wire Braided Fluid Hose
High Pressure Hydraulic Rubber Hose SAE R19 Wire Braided Fluid Hose
High Pressure Hydraulic Rubber Hose SAE R19 Wire Braided Fluid Hose
High Pressure Hydraulic Rubber Hose SAE R19 Wire Braided Fluid Hose
High Pressure Hydraulic Rubber Hose SAE R19 Wire Braided Fluid Hose
Specifications
Brand Name :
DME&JDE
Model Number :
SAE R19
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
200(MOQ)
Price :
US$1-50
Payment Terms :
T/T
Supply Ability :
200（MOQ）USD$1-50
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
Product Name :
Super High Pressure SAE R19
keyword :
OEM Hose
Reinforcement Structure :
2 Layers of Steel Wire Braid
Cover Material :
Anti-abrasive Synthetic Rubber (Resistant to oils, fuels & atmospheric conditions)
Temperature Range :
-40°C to +100°C (Intermittent 120°C); -40°C to +70°C (Water-based fluids); 0°C to +70°C (Hot air)
Working Pressure :
280 Bar / 28 Mpa / 4060 PSI
Impulse Resistance :
≥ 200,000 Times
Ferrule Type :
No-skip Type DPF2T
Description

Super High Pressure SAE R19 Wire Braided Fluid Hose

Fluid Hose product introduction

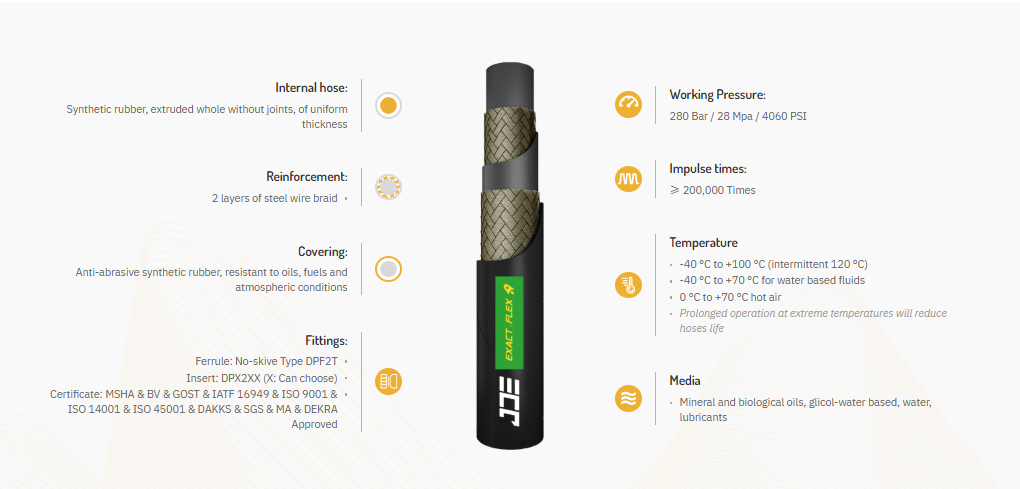

This SAE R19 high pressure wire braided hydraulic hose is designed for heavy-duty hydraulic systems where superior pressure resistance and reliability are critical. Constructed with a seamless synthetic rubber inner tube, two layers of high-tensile steel wire braid reinforcement, and a highly durable outer cover, it delivers stable performance under extreme working conditions.

The hose features excellent resistance to oil, fuel, abrasion, and atmospheric weathering, making it suitable for a wide range of industrial applications. With certifications including MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA, and DEKRA, it meets international quality and safety standards.

Operating at a maximum working pressure of 280 Bar (4060 PSI) and withstanding over 200,000 impulse cycles, this hose ensures long service life and stable transmission in demanding environments. It is compatible with mineral oils, biological oils, glycol-water mixtures, water, and general lubricants.

High Pressure Hydraulic Rubber Hose SAE R19 Wire Braided Fluid Hose

Fluid Hose specification

art Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
EXA 311119-06 -04 6.4 1/4'' 6.2–7.0 12.4 Max 14.4 Max 280 4060 1120 16240 100 0.290 50/100 DPF2T-04
EXA 311119-08 -05 8.0 5/16'' 7.7-8.5 14.2 Max 16.3 Max 280 4060 1120 16240 115 0.330 50/100 DPF2T-05
EXA 311119-10 -06 9.5 3/8'' 9.3-10.1 16 Max 18 Max 280 4060 1120 16240 125 0.420 50/100 DPF2T-06
EXA 311119-12 -08 12.7 1/2'' 12.3-13.5 20.4 Max 22.6 Max 280 4060 1120 16240 180 0.550 50/100 DPF2T-08
EXA 311119-16 -10 16.0 5/8'' 15.5-16.7 25.9 Max 27.5 Max 280 4060 1120 16240 205 0.650 50/100 DPF2T-10
EXA 311119-19 -12 19.0 3/4'' 18.6-19.8 29.7 Max 32.5 Max 280 4060 1120 16240 240 0.790 50/100 DPF2T-12
EXA 311119-25 -16 25.4 1'' 25.0-26.4 39.4 Max 39.4 Max 280 4060 1120 16240 300 1.180 50/100 DPF2T-16

Fluid Hose Applications

The SAE R19 high pressure wire braided hydraulic hose is widely used in:
Construction machinery (excavators, bulldozers, cranes)
Engineering machinery (forklifts, loaders, concrete pumps)
Automotive industry (hydraulic control systems)
Industrial equipment (hydraulic presses, injection molding machines)
Mining equipment
Marine hydraulic systems
Oilfield machinery
Coal mine machinery (MSHA certified)
General industrial hydraulic transmission lines

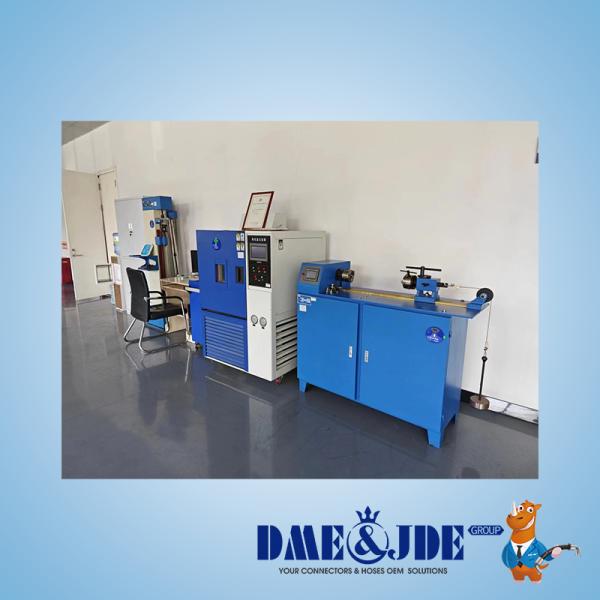

Quality Control
