Exceed Spiral Hydraulic OEM Hoses 4 Layers Super Impulse 4SP Iso 18752
Exceed Spiral Hydraulic OEM Hoses 4 Layers Super Impulse 4SP Iso 18752
Exceed Spiral Hydraulic OEM Hoses 4 Layers Super Impulse 4SP Iso 18752
Exceed Spiral Hydraulic OEM Hoses 4 Layers Super Impulse 4SP Iso 18752
Exceed Spiral Hydraulic OEM Hoses 4 Layers Super Impulse 4SP Iso 18752
Exceed Spiral Hydraulic OEM Hoses 4 Layers Super Impulse 4SP Iso 18752
Exceed Spiral Hydraulic OEM Hoses 4 Layers Super Impulse 4SP Iso 18752
Exceed Spiral Hydraulic OEM Hoses 4 Layers Super Impulse 4SP Iso 18752
Specifications
Brand Name :
DME&JDE
Model Number :
Super Impulse 4SP
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
200(MOQ)
Price :
US$1-50
Payment Terms :
T/T
Supply Ability :
200（MOQ）USD$1-50
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
Product Name :
Super Impulse 4SP Hydraulic Hose
keyword :
OEM Hose
Reinforcement Structure :
4 layers of steel wire spiral
Applicable Standards :
DIN 20023 PART 1 TYPE 4SP, TS 10548, ISO 1307, ISO 8030 / EN 1804 / EN 13463-1, ISO 4413, ISO 3862 4SP, ISO 18752 4CS
Working Pressure :
420–450 Bar / 6090–6525 PSI
Impulse Resistance :
≥ 1,000,000 Times
Temperature Range :
-40 °C to +120 °C (intermittent 125 °C); -40 °C to +70 °C (water based fluids); 0 °C to +70 °C (hot air)
Core Feature :
4-layer steel wire spiral, ultra-high pressure, 1M+ impulse life, exceeds 4SP standard
Description

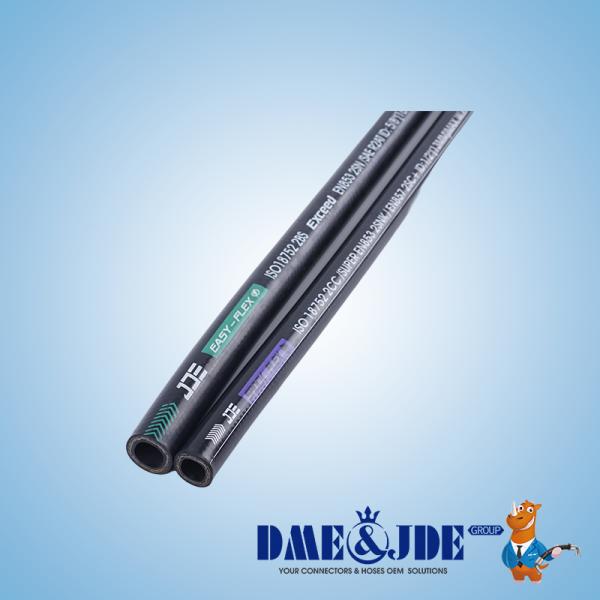

Super Impulse 4SP Iso 18752 4cs Exceed Spiral Hydraulic Hose

Fluid Hose product introduction

The Super Impulse ISO 18752 4CS Exceed 4SP Spiral Hydraulic Hose is a top-tier ultra-high pressure hydraulic hose from JDE's Exact Flex series, engineered with technology for extreme heavy-duty industrial applications.

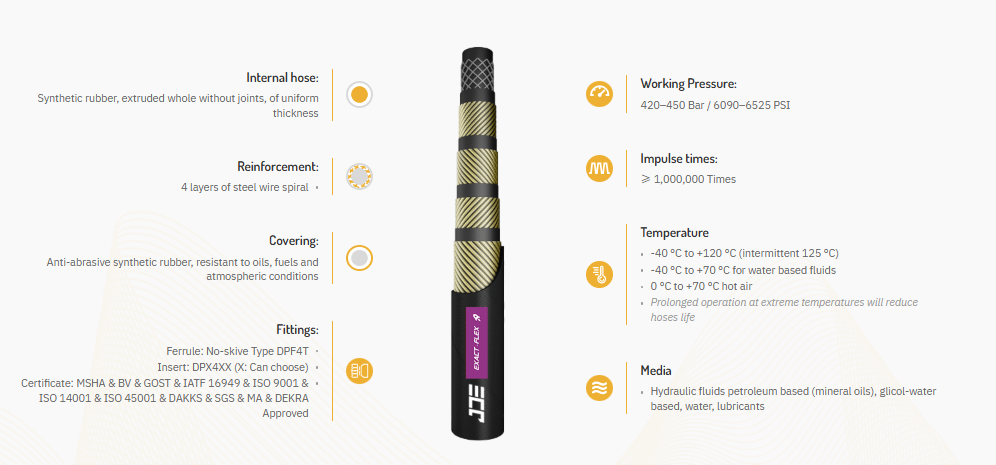

It features a seamless extruded synthetic rubber inner tube, 4 layers of high-tensile steel wire spiral reinforcement, and an anti-abrasive synthetic rubber cover. Designed for 1,000,000+ impulse cycles and ultra-high working pressure, it delivers industry-leading durability, fatigue resistance, and safety in the most demanding hydraulic systems, far exceeding the performance of standard 4SP hoses.

Exceed Spiral Hydraulic OEM Hoses 4 Layers Super Impulse 4SP Iso 18752

Fluid Hose specification

Part Number Hose Size I.D. Braid O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
EXA 911114-10 -6 9.5 3/8'' 10.0±0.3 17.6±0.5 18.6±0.5 450 6525 1800 26100 180 0.73 40 DPFR13-06
EXA 911114-12 -8 12.7 1/2'' 12.8±0.3 20.3±0.5 21.3±0.5 420 6090 1680 24360 230 0.90 40 DPFR13-08
EXA 911114-16 -10 16.0 5/8'' 16.0±0.3 24.1±0.5 25.1±0.5 420 6090 1680 24360 250 1.05 40 DPFR13-10

Fluid Hose Applications

Ultra-Heavy-Duty Construction Machinery: Large excavators, cranes, loaders, bulldozers, and mining excavators with extreme high-pressure hydraulic systems.
Mining & Underground Equipment: Mining machinery, hydraulic supports, tunnel boring machines, and underground high-pressure fluid transmission systems.
Oil & Gas Industry: Offshore drilling rigs, wellhead control systems, high-pressure oilfield hydraulic equipment, and pipeline transmission.
Industrial Hydraulic Systems: Ultra-high pressure hydraulic power units, heavy-duty presses, forging equipment, and industrial automation systems.
Marine & Offshore Engineering: Ship hydraulic systems, offshore platforms, and marine high-pressure fluid lines.
Heavy-Duty Material Handling: Large forklifts, port cranes, and heavy logistics machinery.

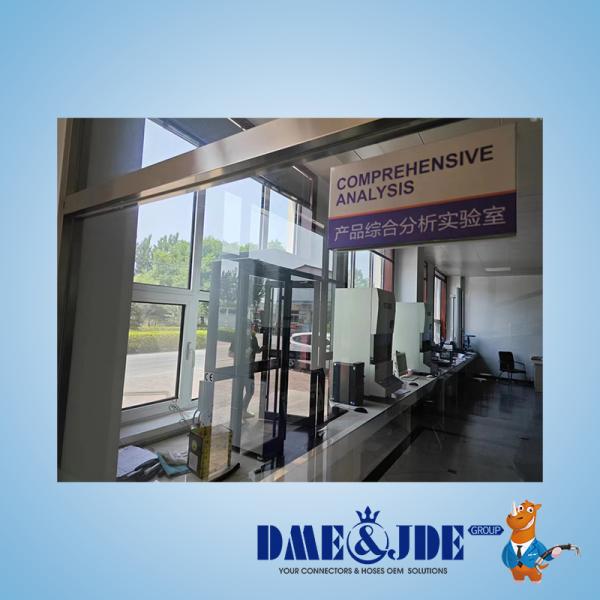

Quality Control

Exceed Spiral Hydraulic OEM Hoses 4 Layers Super Impulse 4SP Iso 18752

Certificate

Exceed Spiral Hydraulic OEM Hoses 4 Layers Super Impulse 4SP Iso 18752
