2SC Smooth Cover Hydraulic Hose Single Wire Braided 2 Layers
2SC Smooth Cover Hydraulic Hose Single Wire Braided 2 Layers
2SC Smooth Cover Hydraulic Hose Single Wire Braided 2 Layers
2SC Smooth Cover Hydraulic Hose Single Wire Braided 2 Layers
2SC Smooth Cover Hydraulic Hose Single Wire Braided 2 Layers
2SC Smooth Cover Hydraulic Hose Single Wire Braided 2 Layers
Specifications
Brand Name :
DME-JDE
Model Number :
2SC Smooth Cover
Certification :
ISO9001, ISO14001, ISO45001, SGS, MSHA, GOST, BV, MA
Place of Origin :
China
MOQ :
1000M
Price :
$1.52-$9.88
Payment Terms :
T/T
Supply Ability :
8000M/Day
Delivery Time :
30 Days
Packaging Details :
Roll, Pallet, Reel
product name :
2SC Smooth Cover Hydraulic Hose
keyword :
OEM Hoses
Reinforcement :
2 layers of steel wire braid
Impulse Life :
≥ 200,000 cycles
Working Pressure :
165–400 Bar / 2393–5800 PSI
Certificates :
Approved by MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA, DEKRA
Description

2SC Smooth Cover Hydraulic Hose Single Wire Braided

2SC Smooth Cover Hydraulic Hose product introduction

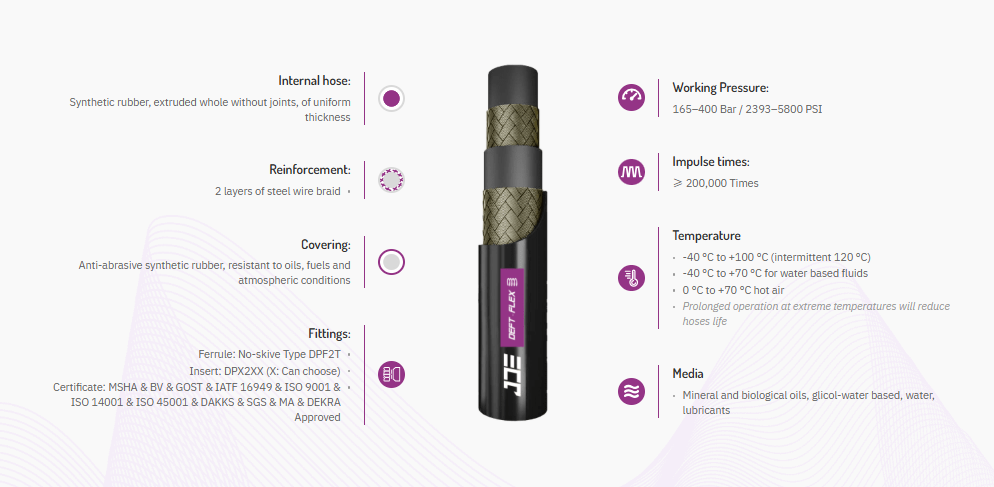

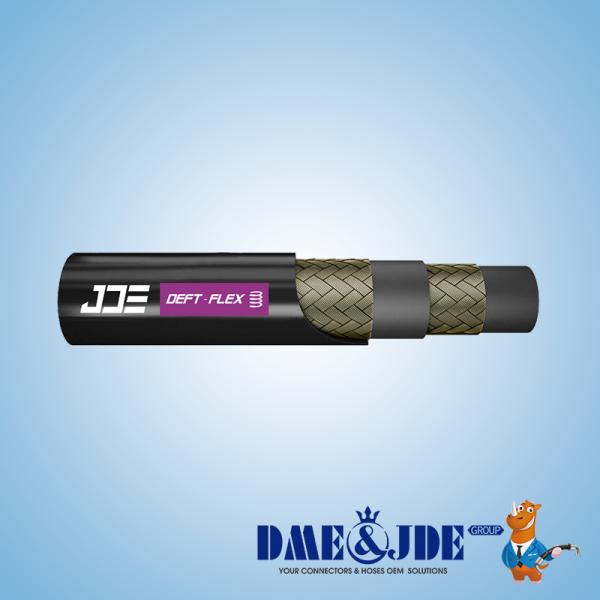

This hydraulic hose is constructed with a high-quality synthetic rubber inner tube, which is integrally extruded without joints and features uniform wall thickness to ensure stable fluid delivery and excellent tightness. The hose is reinforced with two layers of high-tensile steel wire braid, providing reliable structural strength and pressure resistance during long-term operation. The outer cover is made of wear-resistant synthetic rubber material that offers outstanding resistance to oil, fuel, oxidation and various harsh atmospheric conditions. Matched with no-skive type DPF2T ferrules and customizable DPX2XX inserts, the hose allows flexible assembly and easy installation. It is fully certified with MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA and DEKRA, guaranteeing stable and qualified performance for global industrial applications. The hose supports a working pressure ranging from 165 to 400 Bar (2393–5800 PSI) and achieves a pulse cycle life of over 200,000 times. It operates steadily within a wide temperature range from -40 °C to +100 °C, with intermittent tolerance up to 120 °C, while maintaining stable performance for water-based fluids at -40 °C to +70 °C and hot air environments from 0 °C to +70 °C. Please note that prolonged operation under extreme temperatures will reduce the overall service life of the hose.
2SC Smooth Cover Hydraulic Hose Single Wire Braided 2 Layers

2SC Smooth Cover Hydraulic Hose Product Specification

Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
DEF 221122-06 -04 6.4 1/4'' 6.1-6.9 10.6-11.7 14.2 MAX. 400 5800 1600 23200 75 0.290 50/100 DPF2T-04
DEF 221122-08 -05 8.0 5/16'' 7.7-8.5 12.1-13.3 16.0 MAX. 350 5075 1400 20300 85 0.330 50/100 DPF2T-05
DEF 221122-10 -06 9.5 3/8'' 9.3-10.1 14.4-15.6 18.3 MAX. 330 4785 1320 19140 90 0.420 50/100 DPF2T-06
DEF 221122-12 -08 12.7 1/2'' 12.3-13.5 17.5-19.1 21.5 MAX. 275 3987.5 1100 15950 130 0.550 50/100 DPF2T-08
DEF 221122-16 -10 16.0 5/8'' 15.5-16.7 20.5-22.3 24.7 MAX. 250 3625 1000 14500 150 0.650 50/100 DPF2T-10
DEF 221122-19 -12 19.0 3/4'' 18.6-19.8 24.6-26.4 28.6 MAX. 215 3117.5 860 12470 180 0.790 50/100 DPF2T-12
DEF 221122-25 -16 25.4 1'' 25.0-26.4 32.5-34.3 36.6 MAX. 165 2392.5 660 9570 230 1.180 50/100 DPF2T-16

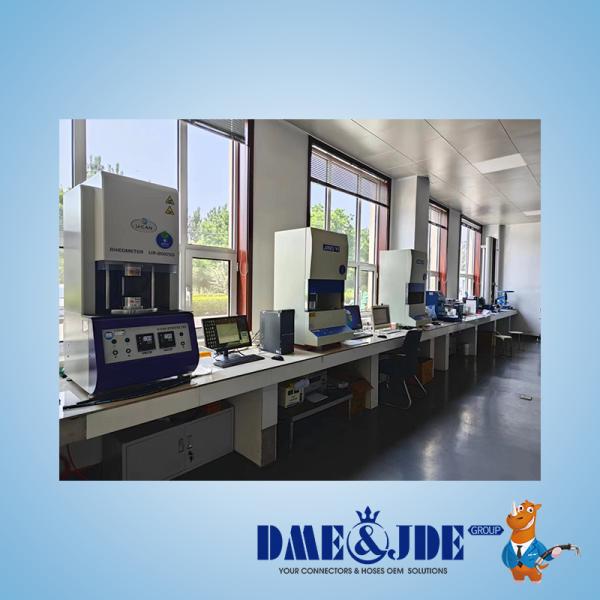

Quality Control

2SC Smooth Cover Hydraulic Hose Single Wire Braided 2 Layers

Certificate

2SC Smooth Cover Hydraulic Hose Single Wire Braided 2 Layers

Related Product

2SC Smooth Cover Hydraulic Hose Single Wire Braided 2 Layers

Material Support

2SC Smooth Cover Hydraulic Hose Single Wire Braided 2 Layers

FAQ
1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping cost is on buyer's side.

2. Q: How do you guarantee your quality and what after-sale service do you have?
A: Our factory follow the quality standard in every produce process. Any quality problem within 12 months after purchase, we are responsible for it.

3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.

4. Q: What is your terms of price?
A: EXW, FOB, CFR, CIF, DDU.

5. Q : How do you make our business long-term and good relationship?
A: Build Trust: Trust is the foundation of any long-term relationship. To establish trust, we need to be transparent in our dealings with customers and provide consistent and reliable services.
Listen to Customers: Listen carefully to customers' feedback, understand their needs, and customize solutions according to their requirements.
Communicate: Maintain regular and open communication with customers, keeping them informed about updates, new products, and services.
Reward Loyalty: We value our loyal customers and reward their business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service is top-notch, responding promptly to inquiries and complaints, and going above and beyond to provide exceptional service that exceeds customers' expectations.

6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our production capacity.

7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your convenient time.
