Specifications
Brand Name :
DME&JDE
Model Number :
1SN/R1AT Smooth Cover
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
200(MOQ)
Price :
US$1-50
Payment Terms :
T/T
Supply Ability :
200（MOQ）USD$1-50
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
Product Name :
1SN/R1AT Smooth Cover Hydraulic Hose
keyword :
OEM Hose
Brand :
JDE (Easy-Flex Series)
Technology Origin :
German Technology Equipment
Internal Hose Material :
Synthetic rubber, extruded whole without joints, uniform thickness
Reinforcement Structure :
1 layer of steel wire braid
Working Pressure :
40–250 Bar / 580–3625 PSI
Impulse Resistance :
≥ 150,000 Times
Description

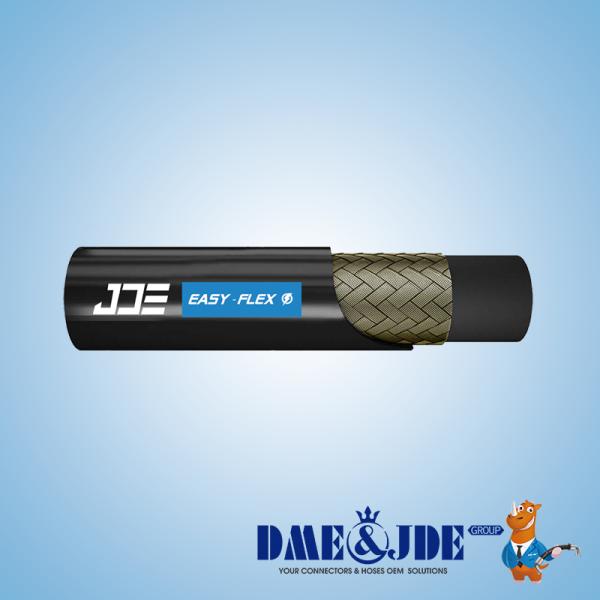

1SN/R1AT Smooth Cover Hydraulic Hose Single Wire Braided

Hydraulic Hose product introduction

The Smooth Cover 1SN/R1AT Wire Braided Fluid Hose is a high-performance medium-pressure hydraulic hose from JDE's Easy-Flex series, engineered with German technology for general industrial applications.

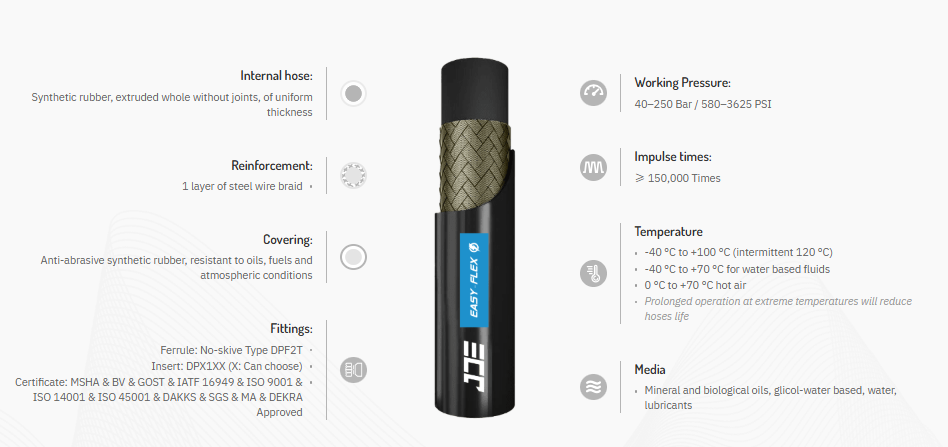

It features a seamless extruded synthetic rubber inner tube, 1 layer of high-tensile steel wire braid reinforcement, and a smooth, anti-abrasive synthetic rubber cover. Designed for 150,000+ impulse cycles and a working pressure range up to 250 Bar (3625 PSI), this hose balances excellent flexibility and pressure resistance, making it ideal for a wide range of hydraulic systems, and exceeds the performance of standard SAE 100R1AT hoses.

1SN/R1AT Smooth Cover Hydraulic OEM Hoses Single Wire Braided

Hydraulic Hose specification

Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
EAS 221101-05 -03 4.8 3/16'' 4.6-5.4 9.0-10.0 12.5 MAX. 250 3625 1000 14500 90 0.240 50/100 DPF2T-03
EAS 221101-06 -04 6.4 1/4'' 6.2-7.0 10.6-11.6 14.1 MAX. 225 3262.5 900 13050 100 0.255 50/100 DPF2T-04
EAS 221101-08 -05 8.0 5/16'' 7.7-8.5 12.1-13.3 15.7 MAX. 215 3117.5 860 12470 115 0.304 50/100 DPF2T-05
EAS 221101-10 -06 9.5 3/8'' 9.3-10.1 14.5-15.7 18.1 MAX. 180 2610 720 10440 130 0.390 50/100 DPF2T-06
EAS 221101-12 -08 12.7 1/2'' 12.3-13.5 17.5-19.1 21.4 MAX. 160 2320 640 9280 180 0.472 50/100 DPF2T-08
EAS 221101-16 -10 16.0 5/8'' 15.5-16.7 20.6-22.2 24.5 MAX. 130 1885 520 7540 200 0.581 50/100 DPF2T-10
EAS 221101-19 -12 19.0 3/4'' 18.6-19.8 24.6-26.2 28.5 MAX. 105 1522.5 420 6090 240 0.690 50/100 DPF2T-12
EAS 221101-25 -16 25.4 1'' 25.0-26.4 32.5-34.1 36.6 MAX. 88 1276 352 5104 300 0.830 50/100 DPF2T-16

Hydraulic Hose Advantages

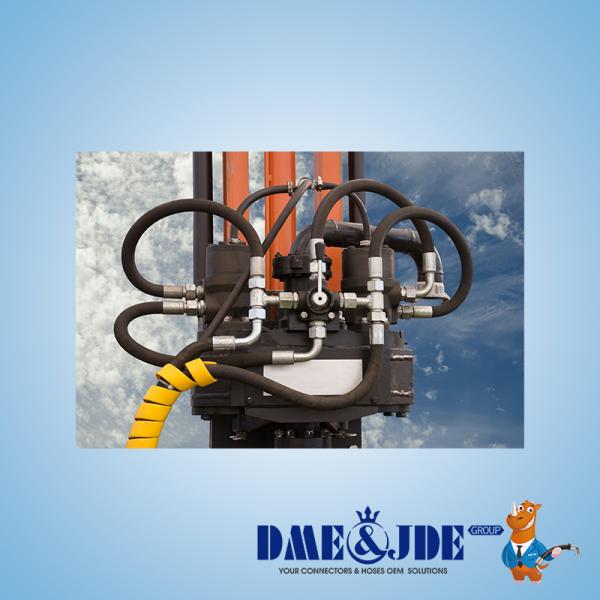

General Construction Machinery: Excavators, loaders, and compact hydraulic systems on construction sites.
Agricultural Machinery: Tractors, harvesters, and agricultural hydraulic implements.
Industrial Hydraulic Systems: Hydraulic power units, machine tools, presses, and industrial automation equipment.
Material Handling: Forklifts, lift trucks, and warehouse logistics machinery.
Automotive & Light Vehicles: Vehicle hydraulic brake lines, power steering hoses, and light commercial vehicle systems.
Mining & Quarrying: Medium-pressure hydraulic lines on mining machinery and equipment.
Oil & Gas Field: Wellhead control systems and medium-pressure fluid transmission lines.

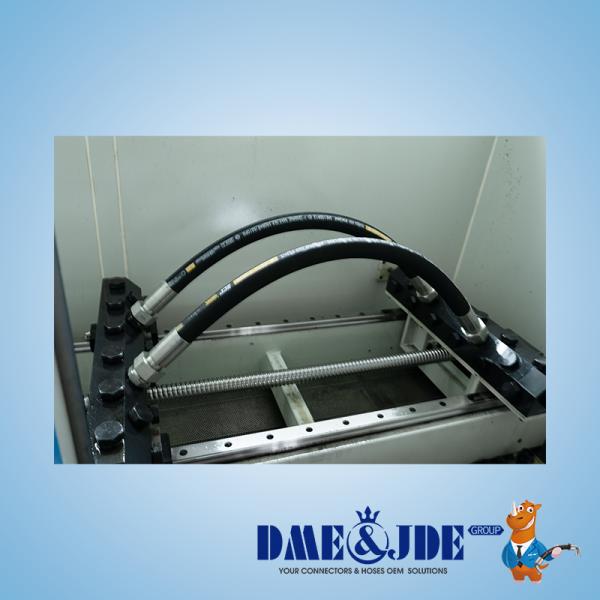

Quality Control
