Super Impulse R15 Iso 18752 4dc & 6dc Exceed Hydraulic Hose

Hydraulic Hose product introduction

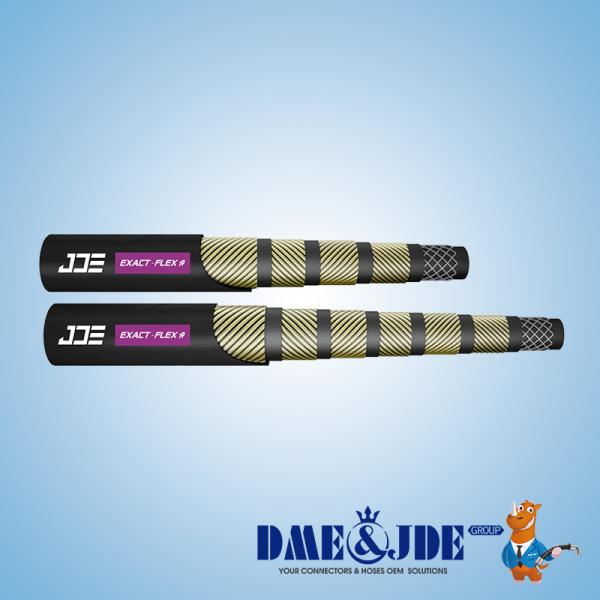

The Super Impulse ISO 18752 4DC & 6DC Exceed R15 Hydraulic Hose is a top-tier ultra-high pressure hydraulic hose from JDE's Exact Flex series, engineered with American technology for extreme heavy-duty industrial applications.

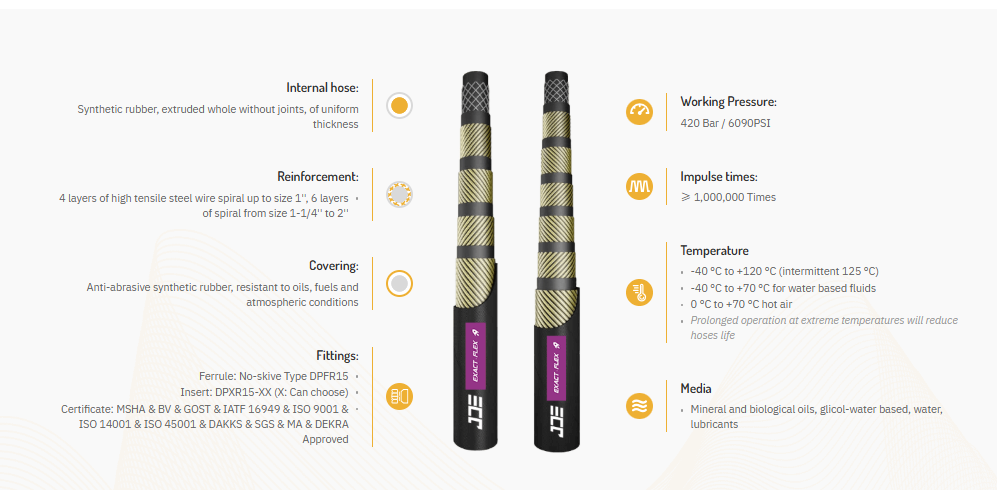

It features a seamless extruded synthetic rubber inner tube, 4 layers of high-tensile steel wire spiral (for sizes up to 1") / 6 layers of spiral (for sizes 1-1/4" to 2") reinforcement, and an anti-abrasive synthetic rubber cover. Designed for 1,000,000+ impulse cycles and ultra-high working pressure, it far exceeds the performance of standard SAE 100R15 hoses, delivering industry-leading durability, fatigue resistance, and safety in the most demanding hydraulic systems.

Hydraulic Hose specification

Hydraulic Hose Advantages

Industry-Leading Impulse Life: Withstands ≥ 1,000,000 impulse cycles, 2–3x the life of standard R15 hoses, delivering ultra-long service life in high-pulsation, heavy-duty systems.
Ultra-High Pressure Rating: Delivers reliable working pressure up to 420 Bar (6090 PSI), far exceeding standard R15 requirements, suitable for extreme heavy-load hydraulic applications.
Multi-Layer Spiral Reinforcement: 4/6 layers of high-tensile steel wire spiral provide exceptional burst strength, fatigue resistance, and stability under extreme pressure, with size-specific reinforcement for optimal performance.
Seamless Inner Tube: Extruded whole without joints, uniform thickness, eliminating leakage risks and ensuring smooth, stable fluid flow.
Superior Wear & Weather Resistance: Anti-abrasive synthetic rubber cover resists oils, fuels, and harsh atmospheric conditions, ideal for heavy industrial, mining, and offshore environments.
No-Skive Fitting Compatibility: Compatible with no-skive type DPFR15 ferrules, simplifying assembly and reducing installation time.
Full International Certification: Approved by MSHA, ISO, IATF and multiple global standards, ensuring quality and compliance for worldwide customers.
Wide Temperature Compatibility: Operates reliably from -40°C to +120°C (intermittent 125°C), suitable for extreme cold and high-temperature working conditions.
