Specifications
Brand Name :
DME&JDE
Model Number :
Super Impulse 4SH
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
200(MOQ)
Price :
US$1-50
Payment Terms :
T/T
Supply Ability :
200（MOQ）USD$1-50
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
Product Name :
Super Impulse 4SH Hydraulic Hose
keyword :
OEM Hose
Certifications :
MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA, DEKRA Approved
Applicable Standards :
DIN 20023 PART 1 TYPE 4SP, TS 10548, ISO 1307, ISO 8030 / EN 1804 / EN 13463-1, ISO 4413, ISO 3862 4SP, ISO 18752 4CS
Working Pressure :
270–420 Bar / 3915–6090 PSI
Impulse Resistance :
≥ 1,000,000 Times
Temperature Range :
-40 °C to +120 °C (intermittent 125 °C); -40 °C to +70 °C (water based fluids); 0 °C to +70 °C (hot air)
Reinforcement Structure :
4 layers of steel wire spiral
Description

Super Impulse 4SH Iso 18752 4dc Exceed Spiral Hydraulic Hose

Hydraulic Hose product introduction

The Super Impulse ISO 18752 4DC Exceed 4SH Spiral Hydraulic Hose is a high-performance ultra-high pressure hydraulic hose from JDE's Exact Flex series, engineered with American technology for heavy-duty industrial applications.

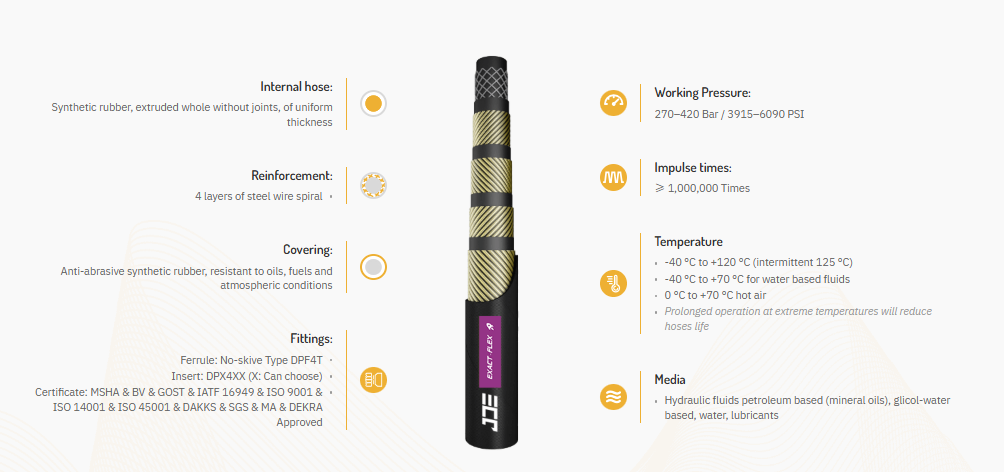

It features a seamless extruded synthetic rubber inner tube, 4 layers of high-tensile steel wire spiral reinforcement, and an anti-abrasive synthetic rubber cover. Designed for 1,000,000+ impulse cycles and ultra-high working pressure, it delivers exceptional durability, fatigue resistance, and safety in demanding hydraulic systems, far exceeding the performance of standard 4SH hoses.

Exceed Spiral OEM Hoses Hydraulic Hose 4 Layers Super Impulse 4SH

Hydraulic Hose specification

Part Number Hose Size I.D. Braid O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
EXA 911114-19 -12 19.0 3/4" 19.0±0.3 28.2±0.5 29.2±0.5 420 6090 1680 24360 280 1.60 40 DPFR13-12
EXA 911114-25 -16 25.4 1" 25.4±0.3 35.1±0.5 36.1±0.5 420 6090 1680 24360 340 2.20 40 DPFR13-16
EXA 911114-32 -20 31.8 1-1/4" 32.0±0.3 42.5±0.5 43.5±0.5 350 5075 1400 20300 460 2.75 40 DPFR13-20
EXA 911114-38 -24 38.1 1-1/2" 38.0±0.3 49.2±0.5 51.2±0.5 310 4495 1240 17980 560 3.75 40 DPFR13-24
EXA 911114-51 -32 50.8 2" 51.0±0.3 62.3±0.5 64.3±0.5 270 3915 1080 15660 700 4.95 40 DPFR13-32

Hydraulic Hose Applications

Industry-Leading Impulse Life: Withstands ≥ 1,000,000 impulse cycles, far exceeding standard 4SH requirements, delivering ultra-long service life in high-pulsation, heavy-duty systems.
Ultra-High Pressure Rating: Delivers reliable working pressure up to 420 Bar (6090 PSI), suitable for extreme heavy-load hydraulic applications.
4-Layer Spiral Reinforcement: 4 layers of high-tensile steel wire spiral provide exceptional burst strength, fatigue resistance, and stability under extreme pressure.
Seamless Inner Tube: Extruded whole without joints, uniform thickness, eliminating leakage risks and ensuring smooth, stable fluid flow.
Superior Wear & Weather Resistance: Anti-abrasive synthetic rubber cover resists oils, fuels, and harsh atmospheric conditions, ideal for heavy industrial, mining, and offshore environments.
No-Skive Fitting Compatibility: Compatible with no-skive type DPF4T ferrules, simplifying assembly and reducing installation time.
Full International Certification: Approved by multiple global standards, ensuring quality and compliance for worldwide customers.
Wide Temperature Compatibility: Operates reliably from -40°C to +120°C, suitable for extreme cold and high-temperature working conditions.
