Super Impulse R12 ISO 18752 4CS Exceed Hydraulic Hose

Hydraulic Hose product introduction

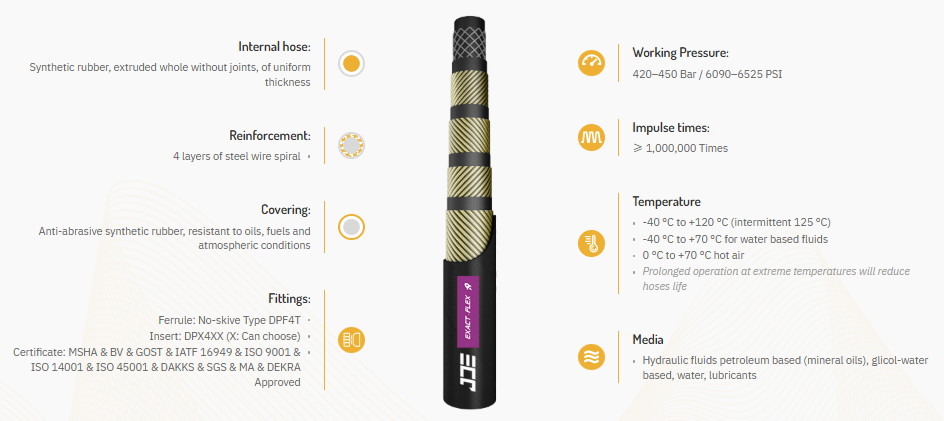

This hydraulic hose features an internal tube made of synthetic rubber, which is extruded as a single piece without joints and has uniform wall thickness. The reinforcement layer consists of 4 layers of steel wire spiral for superior strength. The covering is crafted from anti-abrasive synthetic rubber, offering excellent resistance to oils, fuels, and atmospheric conditions. For fittings, the ferrule adopts the No-skive Type DPF4T, and the insert is DPX4XX (X can be customized as required). The hose is certified by MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA, and DEKRA.

Hydraulic Hose specification

Hydraulic Hose Advantages

Industry-Leading Impulse Life: Withstands ≥ 1,000,000 impulse cycles, far exceeding standard 4SH requirements, delivering ultra-long service life in high-pulsation, heavy-duty systems.
Ultra-High Pressure Rating: Delivers reliable working pressure up to 420 Bar (6090 PSI), suitable for extreme heavy-load hydraulic applications.
4-Layer Spiral Reinforcement: 4 layers of high-tensile steel wire spiral provide exceptional burst strength, fatigue resistance, and stability under extreme pressure.
Seamless Inner Tube: Extruded whole without joints, uniform thickness, eliminating leakage risks and ensuring smooth, stable fluid flow.
Superior Wear & Weather Resistance: Anti-abrasive synthetic rubber cover resists oils, fuels, and harsh atmospheric conditions, ideal for heavy industrial, mining, and offshore environments.
No-Skive Fitting Compatibility: Compatible with no-skive type DPF4T ferrules, simplifying assembly and reducing installation time.
Full International Certification: Approved by multiple global standards, ensuring quality and compliance for worldwide customers.
Wide Temperature Compatibility: Operates reliably from -40°C to +120°C, suitable for extreme cold and high-temperature working conditions.
