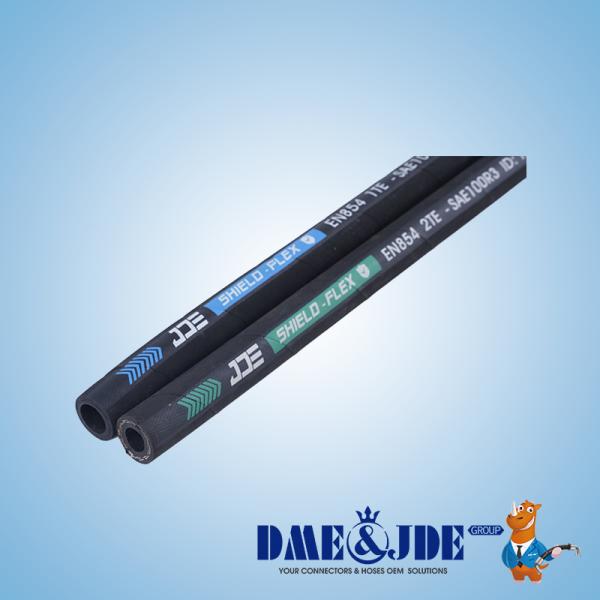

High Pressure Jack Hose Wire Braided Hydraulic Fluid Hose

Hose product introduction

This is a high-performance super pressure jack hose designed for extreme hydraulic jacking systems, engineered with German technology for uncompromising safety and durability. It features a 2-layer steel wire braided reinforcement structure, delivering a maximum working pressure of 700 Bar (70MPa / 10150 PSI), making it ideal for heavy-duty lifting, jacking, and high-pressure fluid transfer applications in industrial, construction, and automotive sectors.

Hose specification

Hose Advantage

1. Ultra-High Pressure Resistance, Industry-Leading Safety
Working Pressure: 700 Bar / 70MPa / 10150 PSI, meeting the strictest requirements for heavy-duty hydraulic jacking systems
Impulse Performance: ≥ 200,000 impulse cycles, far exceeding industry standards, ensuring long-term reliability under repeated high-pressure loads
Static Pressure Rating: 10,000 PSI static pressure only, guaranteeing zero failure in critical lifting operations

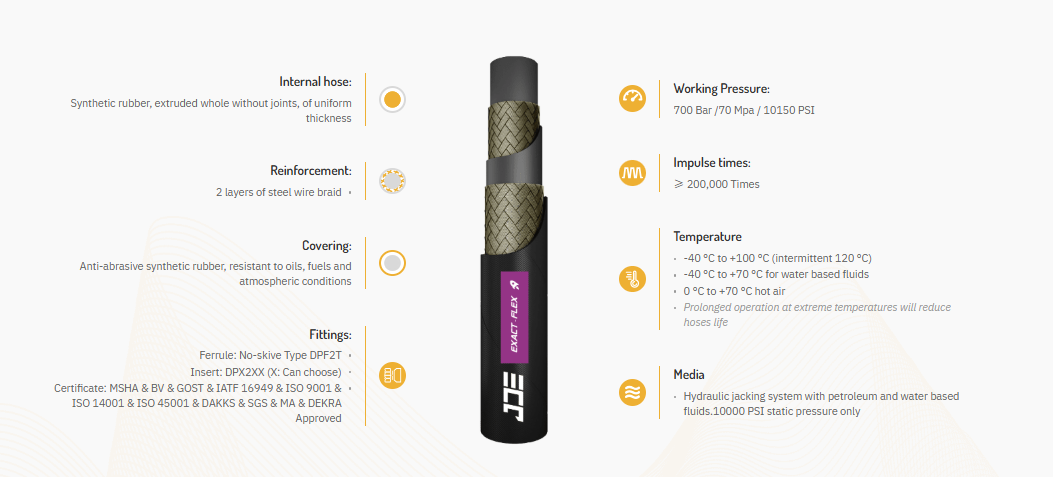

2. Premium Material & Robust Structure
Inner Hose: Seamless extruded synthetic rubber with uniform thickness, ensuring smooth fluid flow and excellent resistance to oil, fuel, and hydraulic fluids
Reinforcement Layer: 2 layers of high-tensile steel wire braid, providing exceptional burst strength and pressure stability
Outer Covering: Abrasion-resistant synthetic rubber, highly durable against wear, weather, and atmospheric conditions, extending service life in harsh working environments
3. Wide Temperature & Media Compatibility
Temperature Range:
-40°C to +100°C (intermittent up to 120°C) for petroleum-based fluids
-40°C to +70°C for water-based fluids
0°C to +70°C for hot air
Compatible Media: Hydraulic jacking systems with petroleum and water-based fluids, suitable for diverse industrial applications
Note: Prolonged operation at extreme temperatures will reduce hose life, ensuring clear usage guidance for customers
4. Certified Quality & Global Compliance
Fully certified by MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA, DEKRA, meeting international quality and safety standards
German technology equipment and strict production control, ensuring consistent product performance and reliability
No-skive type DPF2T ferrules and optional DPX2X inserts, compatible with standard hydraulic fittings for easy installation
5. EXACT FLEX Series: Superior Impulse & Pressure Performance
Part of the EXACT FLEX product series, engineered for super impulse and pressure resistance
Seamless inner hose eliminates joint failure risks, ensuring 100% integrity in high-pressure operations
Ideal for heavy-duty jacking, hydraulic lifting, and industrial high-pressure fluid transfer applications
