Specifications
Brand Name :
DME&JDE
Model Number :
1SC Smooth Cover
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
200(MOQ)
Price :
US$1-50
Payment Terms :
T/T
Supply Ability :
200（MOQ）USD$1-50
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
Product Name :
1SC Smooth Cover Hydraulic Hose
keyword :
OEM Hose
Brand :
JDE (Easy-Flex Series)
Technology Origin :
German Technology Equipment
Ferrule Type :
No-skive Type DPF2T
Reinforcement Structure :
1 layer of steel wire braid
Working Pressure :
80–415 Bar / 1160–6017 PSI
Impulse Resistance :
≥150,000 Times
Description

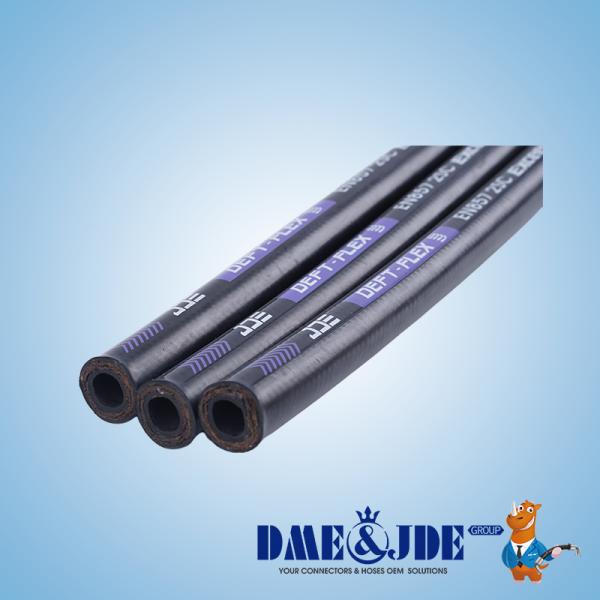

1SC Smooth Cover Hydraulic Hose Single Wire Braided

Hydraulic Hose product introduction

The Smooth Cover 1SC Wire Braided Fluid Hose is a high-performance medium-pressure hydraulic hose from JDE's Deft Flex series, engineered with German technology for applications requiring extreme flexibility.

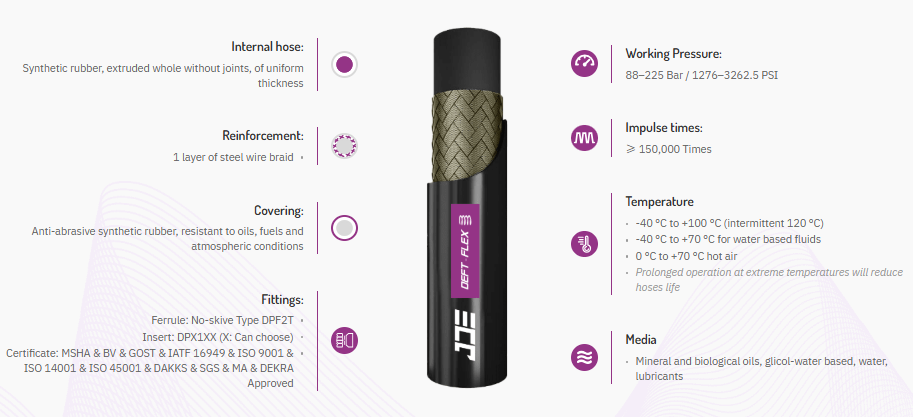

It features a seamless extruded synthetic rubber inner tube, 1 layer of high-tensile steel wire braid reinforcement, and a smooth, anti-abrasive synthetic rubber cover. Designed for 150,000+ impulse cycles and a working pressure range up to 225 Bar (3262.5 PSI), this hose delivers industry-leading flexibility while maintaining reliable pressure resistance, making it ideal for tight spaces and complex routing in hydraulic systems.

Single Wire Braided Hydraulic Hose 1 Layer 1SC Smooth Cover

Hydraulic Hose specification

Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
DEF 221121-06 -04 6.4 1/4'' 6.1-6.9 9.6-10.8 13.5 MAX. 225 3262.5 900 13050 75 0.190 50/100 DPF2T-04
DEF 221121-08 -05 8.0 5/16'' 7.7-8.5 10.9-12.1 14.5 MAX. 215 3117.5 860 12470 85 0.220 50/100 DPF2T-05
DEF 221121-10 -06 9.5 3/8'' 9.3-10.1 12.7-14.5 16.9 MAX. 180 2610 720 10440 90 0.250 50/100 DPF2T-06
DEF 221121-12 -08 12.7 1/2'' 12.3-13.5 15.9-18.1 20.4 MAX. 160 2320 640 9280 130 0.350 50/100 DPF2T-08
DEF 221121-16 -10 16.0 5/8'' 15.5-16.7 19.8-21.0 23.0 MAX. 130 1885 520 7540 150 0.450 50/100 DPF2T-10
DEF 221121-19 -12 19.0 3/4'' 18.6-19.8 23.2-24.4 26.7 MAX. 105 1522.5 420 6090 180 0.500 50/100 DPF2T-12
DEF 221121-25 -16 25.4 1'' 25.0-26.4 30.7-31.9 34.9 MAX. 88 1276 352 5104 230 0.750 50/100 DPF2T-16

Hydraulic Hose Applications

Compact Construction Machinery: Mini excavators, skid-steer loaders, and equipment with tight hydraulic routing.
Agricultural Machinery: Tractors, harvesters, and agricultural implements requiring flexible hose lines.
Industrial Automation: Robotic arms, machine tools, and automation equipment with complex hydraulic paths.
Material Handling: Forklifts, lift trucks, and warehouse machinery with compact hydraulic systems.
Automotive & Light Vehicles: Vehicle hydraulic systems, power steering hoses, and light commercial vehicles.
Mobile Equipment: Portable hydraulic tools, mobile machinery, and equipment requiring flexible hose assemblies.
