Specifications
Model Number :
BS EN 856 4SP
Working Pressure :
165–445 Bar / 2393–6453 PSI
Price :
US$ 1-50
Internal hose :
Synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement :
4 layers of steel wire spiral
MOQ :
500M (MOQ)
Delivery Time :
30days
Fittings :
Ferrule: No-skive Type DPF4T Insert: DPX4XX (X: Can choose) Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
Payment Terms :
T/T
Applicable Specs :
DIN 20023 PART 1 TYPE 4SP TS 10548 ISO 1307 ISO 8030 / EN 1804 / EN 13463-1 ISO 4413 ISO 3862 4SP
Covering :
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Product name :
BS EN 856 4SP
Brand Name :
DME&JDE
Temperature :
-40 °C to +100 °C (intermittent 120 °C) -40 °C to +70 °C for water based fluids 0 °C to +70 °C hot air Prolonged operation at extreme temperatures will reduce hoses life
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Packaging Details :
Roll Pallet Reel
Place of Origin :
Hengshui City, Hebei Province, China
Description

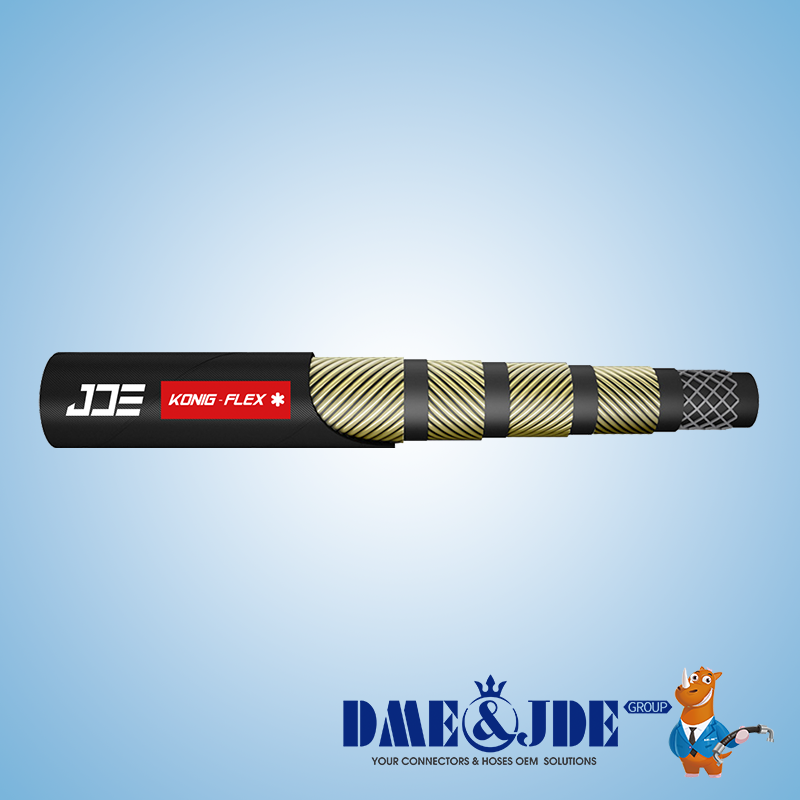

BS EN 856 4SP Wire Spiral Hydraulic Hose


Applicable Specs:

DIN 20023 PART 1 TYPE 4SP
TS 10548
ISO 1307
ISO 8030 / EN 1804 / EN 13463-1
ISO 4413
ISO 3862 4SP

BS EN 856 4SP Wire Spiral Hydraulic Hose

Applications:

BS EN 856 4SP Wire Spiral Hydraulic Hose

BS EN 856 4SP Wire Spiral Hydraulic Hose


Hydraulic Hose specification

Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
JDE 211104-10 -06 9.5 3/8'' 9.3-10.1 16.9-18.1 20.6-22.2 445 6452.5 1780 25810 180 0.700 20/40 DPF4T-06
JDE 211104-12 -08 12.7 1/2'' 12.3-13.5 19.4-21.0 23.8-25.4 415 6017.5 1660 24070 230 0.800 20/40 DPF4T-08
JDE 211104-16 -10 16.0 5/8'' 15.5-16.7 23.0-24.6 27.4-29.0 350 5075 1400 20300 250 0.975 20/40 DPF4T-10
JDE 211104-19 -12 19.0 3/4'' 18.6-19.8 27.4-29.0 31.4-33.0 350 5075 1400 20300 300 1.450 20/40 DPF4T-12
JDE 211104-25 -16 25.4 1'' 25.0-26.4 34.5-36.1 38.5-40.9 280 4060 1120 16240 340 2.050 20/40 DPF4T-16
JDE 211104-32 -20 31.8 1-1/4'' 31.4-33.0 45.0-47.0 49.2-52.4 210 3045 840 12180 460 3.060 20/40 DPF4T-20
JDE 211104-38 -24 38.1 1-1/2'' 37.7-39.3 51.4-53.4 55.6-58.8 185 2682.5 740 10730 560 3.650 20/40 DPF4T-24
JDE 211104-51 -32 50.8 2'' 50.4-52.0 64.3-66.3 68.2-71.4 165 2392.5 660 9570 660 4.850 20/40 DPF4T-32

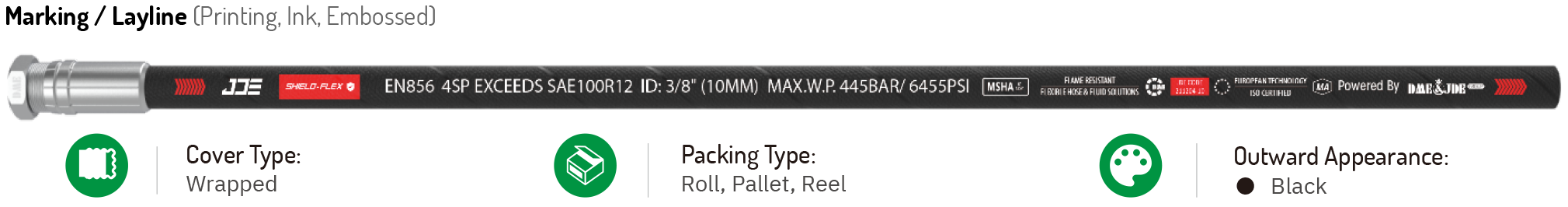

Marking / Layline (Printing, Ink)

BS EN 856 4SP Wire Spiral Hydraulic Hose

BS EN 856 4SP Wire Spiral Hydraulic Hose

Quality Control

BS EN 856 4SP Wire Spiral Hydraulic Hose

Certificate


BS EN 856 4SP Wire Spiral Hydraulic Hose


Related Product

BS EN 856 4SP Wire Spiral Hydraulic Hose


FAQ

1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping cost is on buyer's side.


2. Q: How do you guarantee your quality and what after-sale service do you have?
A: Our factory follow the quality standard in every produce process. Any quality problem within 12 months after purchase, we are responsible for it.


3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.


4. Q: What is your terms of price?

A: EXW, FOB, CFR, CIF, DDU.


5. Q : How do you make our business long-term and good relationship?
A: Build Trust: Trust is the foundation of any long-term relationship. To establish trust, we need to be transparent in our dealings with customers and provide consistent and reliable services.
Listen to Customers: Listen carefully to customers' feedback, understand their needs, and customize solutions according to their requirements.
Communicate: Maintain regular and open communication with customers, keeping them informed about updates, new products, and services.
Reward Loyalty: We value our loyal customers and reward their business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service is top-notch, responding promptly to inquiries and complaints, and going above and beyond to provide exceptional service that exceeds customers' expectations.


6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our production capacity.


7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your convenient time.
